31780
Schneider Electric
IP40Distribution85 °C
Lead time on requestGet quote

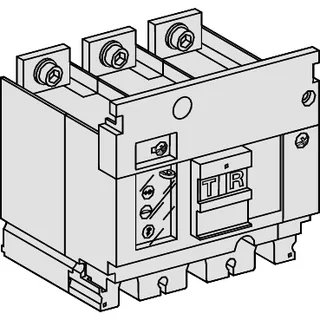

Schneider Electric 3178 Series
6 variants · Schneider Electric
About the Schneider Electric 3178 Series
The Schneider Electric 3178 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Distribution, connection surface bottom of Front and connection surface top of Front. Variants differ by height, main product or component type and mechanical life cycles, so you can match the exact height your application requires using the selection guide below.
Select a variant by
- Height
- 161 mm · 236 mm
- Main product or component type
- Circuit breaker · Switch disconnector
- Mechanical life cycles
- 1000 cycles conforming to IEC 60947-3 · 20000 cycles
- Pollution degree
- 3 conforming to IEC 60529 · 3 conforming to IEC 60947
- Width
- 105 mm · 140 mm
Shared specifications
- Application
- Distribution
- Connection surface bottom
- Front
- Connection surface top
- Front
- Control type
- Toggle
- Depth
- 86 mm
- IP rating
- IP40
- Operating temperature
- -25...70 °C
- Storage temperature
- -50...85 °C
- Temp operating max
- 70 °C
- Temp operating min
- -25 °C
- Temp storage max
- 85 °C
- Temp storage min
- -50 °C
Variant comparison
| Parameter | 31780 | 31782 | 31784 | 31788 | 31789 |
|---|---|---|---|---|---|
| Height | 161 mm | 161 mm | 161 mm | 161 mm | 236 mm |
| Main product or component type | Circuit breaker | Circuit breaker | Circuit breaker | Switch disconnector | Switch disconnector |
| Mechanical life cycles | 20000 cycles | 20000 cycles | 20000 cycles | 1000 cycles conforming to IEC 60947-3 | 1000 cycles conforming to IEC 60947-3 |
| Pollution degree | 3 conforming to IEC 60947 | 3 conforming to IEC 60947 | 3 conforming to IEC 60947 | 3 conforming to IEC 60529 | 3 conforming to IEC 60529 |
| Width | 140 mm | 140 mm | 140 mm | 105 mm | 105 mm |
Request a quote on any Schneider Electric 3178 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
