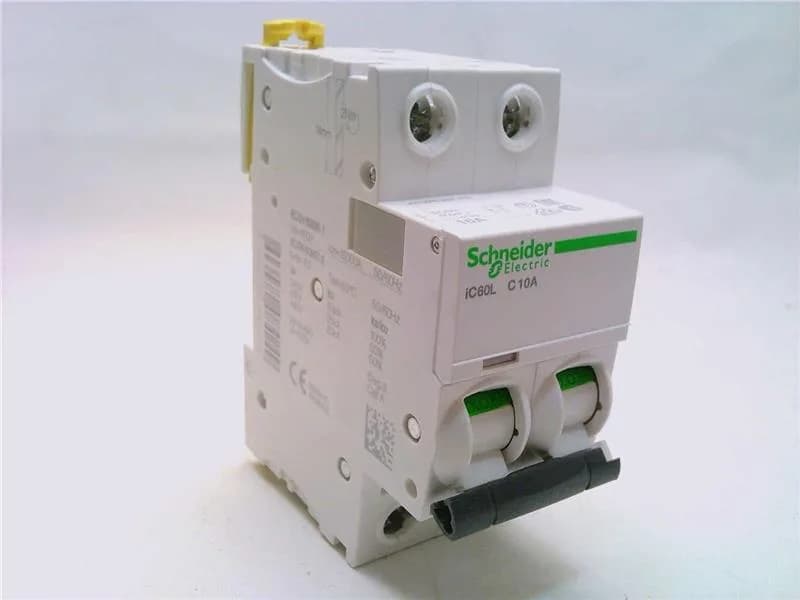

A9F94210
DistributionWhite85 °C
Lead time on requestGet quote
Schneider Electric A9F9 Series
250 variants · Schneider Electric
Schneider Electric A9F9 Series — Industrial Component from schneider
Schneider Electric A9F9 Series by schneider includes 250 variants for industrial automation, panel building, and machine control applications in factory automation, process industries, and building infrastructure.
Applications
- Control Panel Integration: Standardized DIN rail or panel-mount components for motor control centers, power distribution boards, and PLC I/O systems.
- Machine Building: Motor starting, protection, and auxiliary control in automated production lines, packaging machinery, and material handling equipment.
- Building Services: HVAC control, pumping stations, lighting control, and backup power systems in commercial and industrial buildings.
Selection
Match the rated current, voltage, breaking/switching capacity, number of poles, and control voltage to the application requirements. The complete manufacturer order code encodes these parameters — providing the full part number ensures accurate pricing and availability confirmation.
Availability
Standard configurations are typically in distributor inventory. Custom configurations or special accessories may require additional lead time. Contact authorized distributors for volume pricing and project quotations.
About the Schneider Electric A9F9 Series
The Schneider Electric A9F9 Series series groups 250 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common color of White, control type of Toggle and depth of 78.5 mm. Variants differ by application, trip unit type and width, so you can match the exact application your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric A9F9 Series variants and discontinued ones from a single page.
Select a variant by
- Application
- Distribution · Motor
- Trip unit type
- Magnetic · Thermal-magnetic
- Width
- 36 mm · 54 mm
Shared specifications
- Color
- White
- Control type
- Toggle
- Depth
- 78.5 mm
- Electrical life cycles
- 10000 cycles
- Height
- 85 mm
- Main product or component type
- Miniature circuit-breaker
- Mechanical life cycles
- 20000 cycles
- Operating temperature
- -35...70 °C
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Storage temperature
- -40...85 °C
- Temp operating max
- 70 °C
- Temp operating min
- -35 °C
Variant comparison

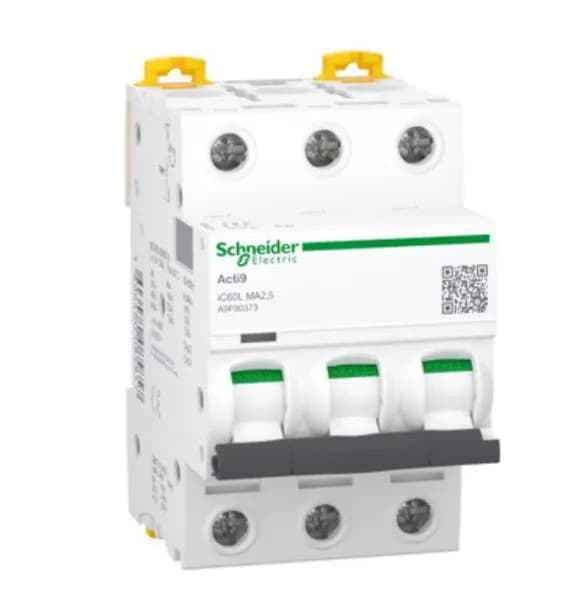

| Parameter | A9F94210 | A9F90204 | A9F90210 | A9F90216 | A9F90225 | A9F90240 |
|---|---|---|---|---|---|---|
| Application | Distribution | Motor | Motor | Motor | Motor | Motor |
| Trip unit type | Thermal-magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Width | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
Request a quote on any Schneider Electric A9F9 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
