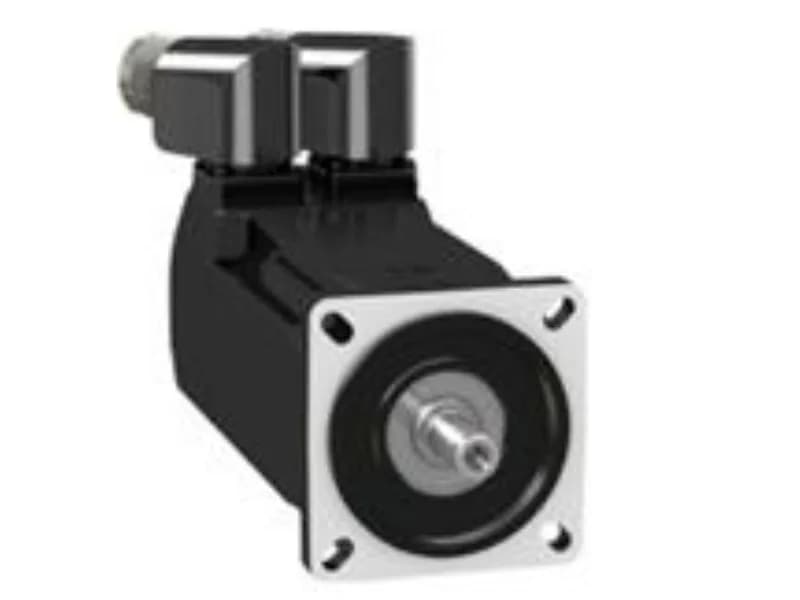

Schneider Electric BMH0702P Series
64 variants · Schneider Electric
Schneider Electric BMH0702P Series — schneider
Schneider Electric BMH0702P Series includes 62 variants for industrial automation and panel building.
Applications
Motor control centers, distribution boards, PLC I/O systems, machine building, and building infrastructure.
Selection
Match rated current, voltage, poles, and control voltage to application requirements. Provide complete order code for accurate pricing.
Availability
Standard configurations in distributor inventory. Custom options may require additional lead time.
About the Schneider Electric BMH0702P Series
The Schneider Electric BMH0702P Series series groups 64 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common centring collar diameter of 2.4 in (60 mm), main product or component type of Servo motor and max axial force fa n of 0.2 x Fr. Variants differ by feedback type, IP rating and length, so you can match the exact feedback type your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric BMH0702P Series variants and discontinued ones from a single page.
Select a variant by
- Feedback type
- Multiturn SinCos Hiperface · Single turn SinCos Hiperface
- IP rating
- IP54 · IP65 / IP67
- Length
- 6.06 in (154 mm) · 7.6 in (193 mm)
- Shaft end type
- Keyed · Smooth shaft
Shared specifications
- Centring collar diameter
- 2.4 in (60 mm)
- Main product or component type
- Servo motor
- Max axial force fa n
- 0.2 x Fr
- Shaft diameter
- 0.4 in (11 mm)
Variant comparison
| Parameter | BMH0702P27A1A | BMH0702P37F1A | BMH0702P22A1A | BMH0702P21F1A | BMH0702P12F2A | BMH0702P22F2A |
|---|---|---|---|---|---|---|
| Feedback type | Multiturn SinCos Hiperface | Multiturn SinCos Hiperface | Multiturn SinCos Hiperface | Single turn SinCos Hiperface | Multiturn SinCos Hiperface | Multiturn SinCos Hiperface |
| IP rating | IP65 / IP67 | IP65 / IP67 | IP65 / IP67 | IP65 / IP67 | IP54 | IP65 / IP67 |
| Length | 6.06 in (154 mm) | 7.6 in (193 mm) | 6.06 in (154 mm) | 7.6 in (193 mm) | 7.6 in (193 mm) | 7.6 in (193 mm) |
| Shaft end type | Smooth shaft | Keyed | Smooth shaft | Smooth shaft | Keyed | Smooth shaft |
Request a quote on any Schneider Electric BMH0702P Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
