Schneider Electric LC1K0910 Series

44 variants · Schneider Electric

About the Schneider Electric LC1K0910 Series

The Schneider Electric LC1K0910 Series series groups 44 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common depth of 2.2 in (57 mm), electrical life cycles of 1.3 Mcycles 9 A AC-3 1.3 Mcycles 9 A AC-3e 0.16 Mcycles 20 A AC-1 0.02 Mcycles 54 A AC-4 <= 440 V and height of 2.3 in (58 mm). Variants differ by application, so you can match the exact application your application requires using the selection guide below.

Select a variant by

Application
Resistive load Motor control · Resistive load, Motor control

Shared specifications

Depth
2.2 in (57 mm)
Electrical life cycles
1.3 Mcycles 9 A AC-3 1.3 Mcycles 9 A AC-3e 0.16 Mcycles 20 A AC-1 0.02 Mcycles 54 A AC-4 <= 440 V
Height
2.3 in (58 mm)
Main product or component type
Contactor
Mechanical life cycles
10 Mcycles
Utilization category
AC-3 AC-3e AC-1 AC-4
Width
1.8 in (45 mm)

Variant comparison

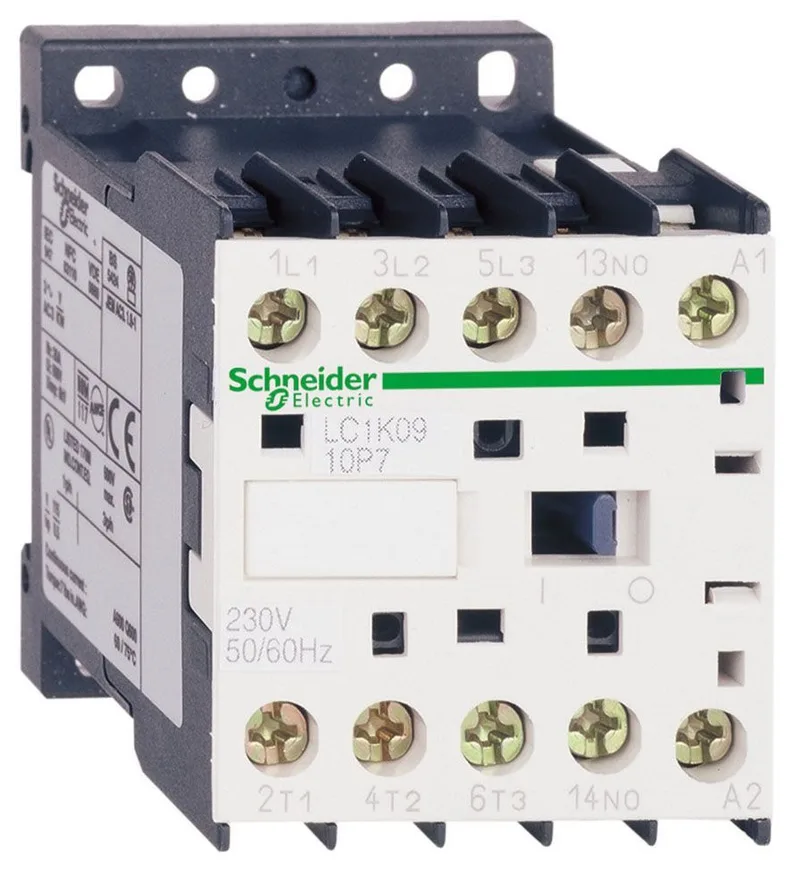

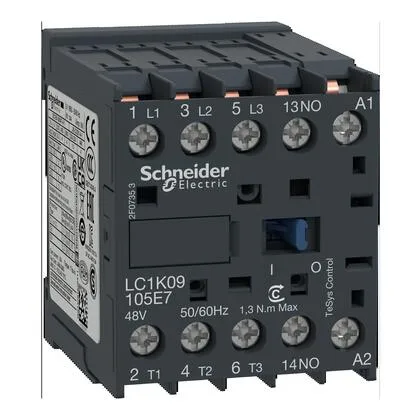

ParameterLC1K0910P7TQLC1K0910F7LC1K0910M72LC1K09103B7LC1K09105E7
ApplicationResistive load, Motor controlResistive load Motor controlResistive load Motor controlResistive load, Motor controlResistive load, Motor control

Request a quote on any Schneider Electric LC1K0910 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

All variants
