Schneider Electric ZBE1 Series Industrial Component

Schneider Electric ZBE1 Series — schneider Industrial Component

Schneider Electric ZBE1 Series by schneider encompasses 4 configuration variants for industrial automation, panel building, and machine control applications. This product line is specified by engineers for installations requiring standardized form factors, predictable electrical characteristics, and long-term product availability.

Industrial Applications

Motor Control Centers (MCC): Motor starting, protection, reversing, and soft starting in automated production lines, conveyor systems, and material handling equipment.
Power Distribution: Main and feeder circuit protection in low-voltage switchgear and distribution boards for factories, process plants, and commercial buildings.
Machine Building: Individual machine disconnect, motor overload protection, and auxiliary control circuits in CNC machine tools, packaging machinery, and robotic work cells.
Building Infrastructure: HVAC fan and pump control, lighting contactors, backup generator changeover, and fire protection system control circuits.

Selection Guidance

When selecting a variant within this series, compare: rated operational current and voltage (matching the load and supply), breaking or switching capacity (adequate for the prospective fault current at the installation point), number of poles or channels, control voltage for coils or actuators, mounting type (DIN rail, panel mount, plug-in or withdrawable), and degree of protection (IP rating for environmental conditions). The manufacturer part number encodes these parameters — providing the complete order code ensures accurate pricing and availability confirmation.

Sourcing and Lead Times

Standard catalog configurations are typically carried in distributor inventory. Special configurations (non-standard coil voltages, custom trip settings, extended temperature ratings) may require 2-8 week manufacturing lead times. For project quantities, contact authorized distributors with the target annual volume and required delivery schedule for volume pricing.

About the Schneider Electric ZBE1 Series

The Schneider Electric ZBE1 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common main product or component type of Contact block and temp storage max of 70 °C. Variants differ by contact operation, mechanical life cycles and operating temperature, so you can match the exact contact operation your application requires using the selection guide below. All listed Schneider Electric ZBE1 Series part numbers are active and orderable.

Select a variant by

Contact operation: Slow-break · Standard
Mechanical life cycles: 1000000 cycles · 10000000 cycles
Operating temperature: -58...167 °F (-50...75 °C) · -40...158 °F (-40...70 °C)
Storage temperature: -58...158 °F (-50...70 °C) · -40...158 °F (-40...70 °C)
Temp operating max: 70 °C · 75 °C
Temp operating min: -50 °C · -40 °C
Temp storage min: -50 °C · -40 °C
IP rating: IP5X · IP20

Shared specifications

Main product or component type: Contact block
Temp storage max: 70 °C

Variant comparison

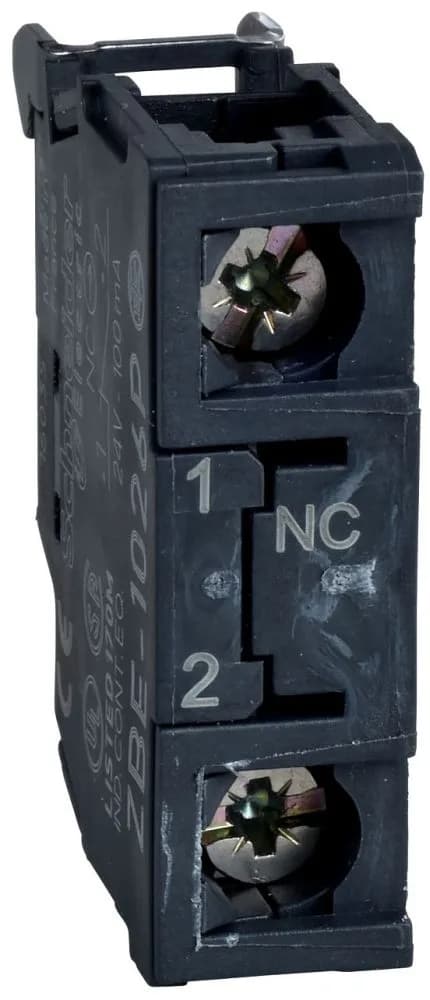

Parameter	ZBE1026	ZBE101GEX	ZBE1026P	ZBE1029
Contact operation	Slow-break	Standard	Slow-break	Slow-break
Mechanical life cycles	10000000 cycles	1000000 cycles	10000000 cycles	10000000 cycles
Operating temperature	-40...158 °F (-40...70 °C)	-58...167 °F (-50...75 °C)	-40...158 °F (-40...70 °C)	-40...158 °F (-40...70 °C)
Storage temperature	-40...158 °F (-40...70 °C)	-58...158 °F (-50...70 °C)	-40...158 °F (-40...70 °C)	-40...158 °F (-40...70 °C)
Temp operating max	70 °C	75 °C	70 °C	70 °C
Temp operating min	-40 °C	-50 °C	-40 °C	-40 °C
Temp storage min	-40 °C	-50 °C	-40 °C	-40 °C
IP rating	IP20	—	IP5X	IP20

Request a quote on any Schneider Electric ZBE1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
