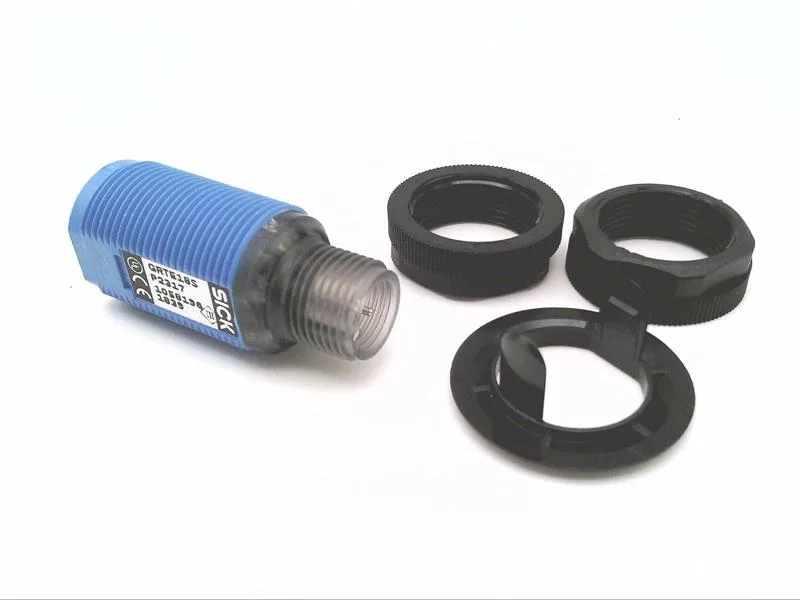

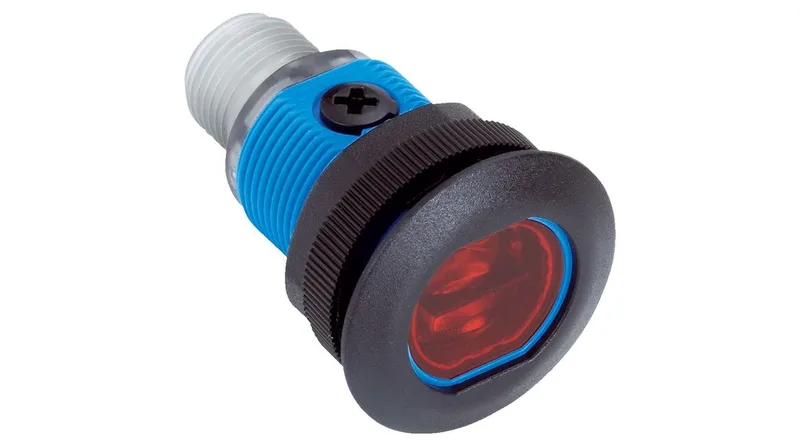

SICK GRTE18S-P2317
MPNGRTE18S-P2317
Cylindrical Photoelectric Sensor PNP 300mm 500us 30VDC 100mA LED, Red Connector, M12, 4-Pin IP67 GR18S
$53.34 – $68.28Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | GR18S |
| Sensor type | Photoelectric Proximity Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 300 mm |
| Sensing distance, min. | 3 mm |
| Response time | 500 us |
| Light type | LED, Red |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 VDC |
| Operating voltage, max. | 30 VDC |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 38 mm |
| Width | 18 mm |
| Height | 15 mm |
MPN
GRTE18S-P2317
