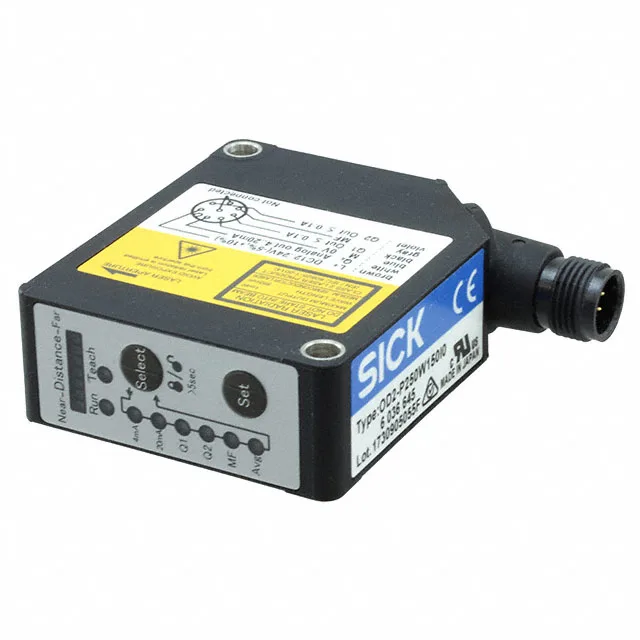

The OD2-P250W150IO is a 2D Laser Displacement Sensor from the OD Value series, delivering a PNP discrete output over a 100.0mm to 400.0mm installation distance. It runs on a 12 ~ 24VDC supply and terminates through a connector — no flying leads to manage in the panel. IP67 rating means the housing and optics handle washdown and dust — suitable for inline measurement on a conveyor or assembly station where coolant or debris is present. Operating temperature spans -10°C to 40°C, so it stays within spec for indoor production environments but not for freezer or outdoor unheated zones.
Chassis-mount form factor with a connector termination — plan for a bracket or fixture to hold the sensor body rigid, and route the mating cable back to the controller. No DIN-rail clip on this one.
