SICK GRTE18S-P2347
MPNGRTE18S-P2347

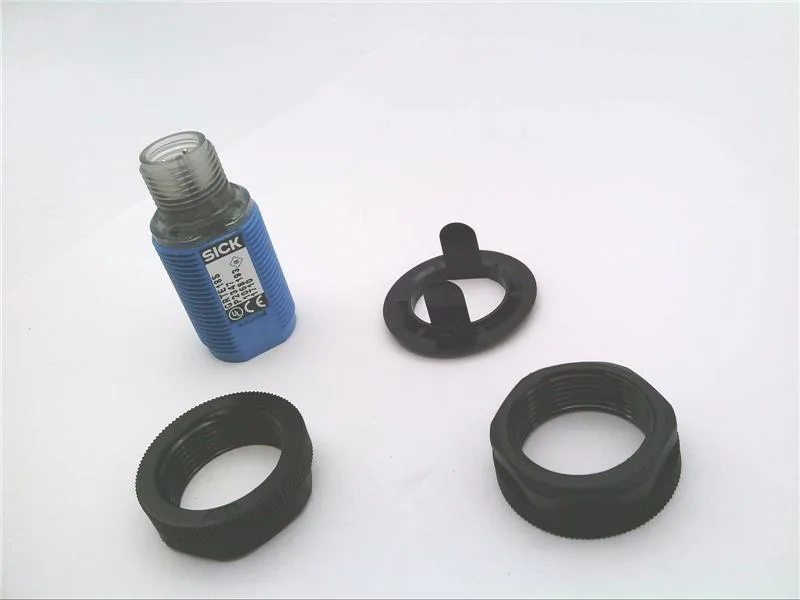

Cylindrical Photoelectric Sensor PNP 500mm 1000us 30V 30mA LED, Visible Red Light Connector, M12, 3-Pin IP67 GR18S
$53.34 – $67.66Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | GR18S |
| Sensor type | Photoelectric Proximity Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 500 mm |
| Sensing distance, min. | 5 mm |
| Response time | 1000 us |
| Light type | LED, Visible Red Light |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 30 mA |
| Switching type | Light-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 3-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 38.1 mm |
| Width | 18 mm |
| Height | 18 mm |
MPN
GRTE18S-P2347
