SICK GTB10-P4211 — Proximity Sensors

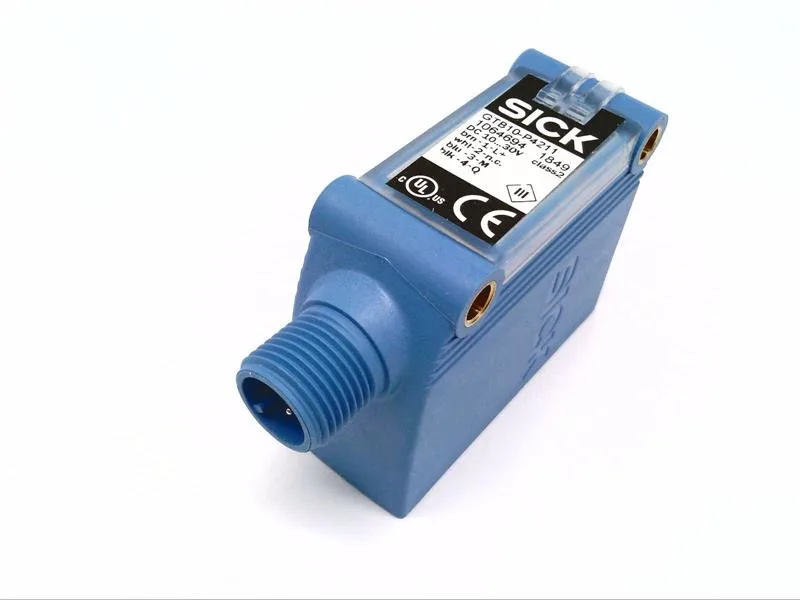

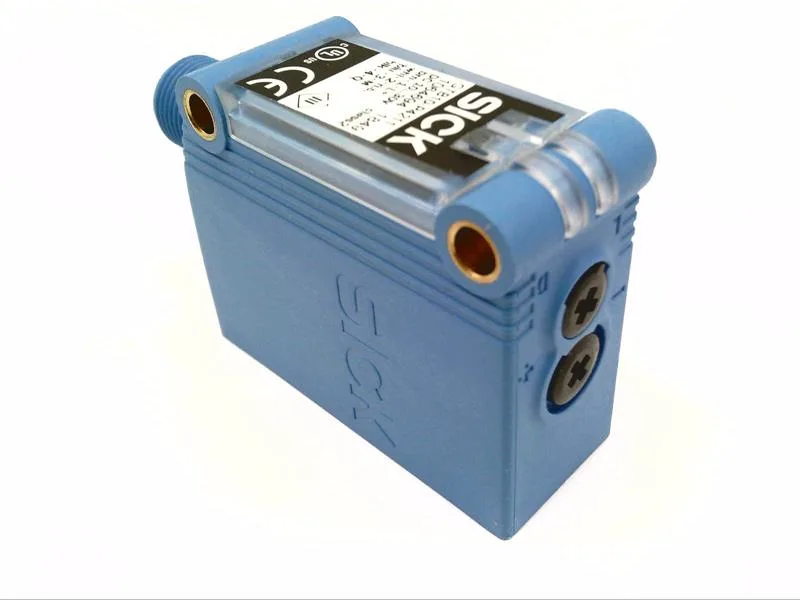

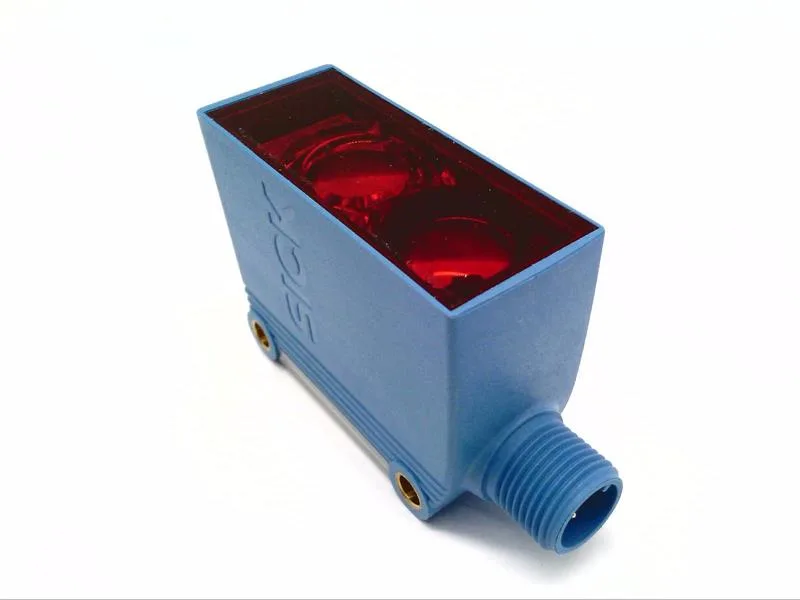

SICK GTB10-P4211 Photoelectric Proximity Sensor, PNP, 950 mm

MPNGTB10-P4211

SICK G10 series photoelectric proximity sensor, GTB10-P4211, PNP output, 950 mm sensing range, PinPoint LED visible red light, M12 4-pin connector, IP67, 20 mm width.

$54.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

GTB10-P4211 — Identification
ParameterValue
SeriesG10
GTB10-P4211 — Sensing
ParameterValue
Sensing distance, max.950 mm
GTB10-P4211 — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M12, 4-Pin
GTB10-P4211 — Output
ParameterValue
Load current100 mA
GTB10-P4211 — Environmental
ParameterValue
Operating temperature, max.60 °C
Operating temperature, min.-30 °C
IP protection ratingIP67

Product details

The SICK GTB10-P4211 is a photoelectric proximity sensor from the G10 series, with a PNP output and a 950 mm sensing range using a PinPoint LED visible red light source. It switches in 500 µs, covers 20 mm to 950 mm, and handles loads up to 100 mA at 10–30 VDC. That 500 µs response time keeps up with fast-moving parts on a conveyor — no missed counts from a slow sensor.

The housing is 20 mm wide and 50 mm tall, which wires up clean on a DIN rail or bracket in a panel. M12 4-pin connector keeps the wiring simple — no pigtail to dress. IP67 means it handles washdown and dust without a second thought, so it's right at home on a packaging or bottling line where hoses come out at shift end.

Frequently asked questions

How do I get current pricing and availability for GTB10-P4211?

Submit an RFQ through the site — the part is sourced to order, and availability and current pricing are confirmed at quote time.

What is GTB10-P4211's listed width and height?

The sensor body is 20 mm wide and 50 mm tall.

Will GTB10-P4211 drop into a panel that was specified around GTB10-N4212 without rewiring?

Physically yes — same 20 mm width, 50 mm height, M12 4-pin connector, and 950 mm sensing range. The only difference is output type: GTB10-P4211 is PNP, GTB10-N4212 is NPN. If the load expects a PNP signal, it's a straight swap; if the circuit was wired for NPN sourcing, you need to swap the output transistor type or re-terminate.

MPN
GTB10-P4211
