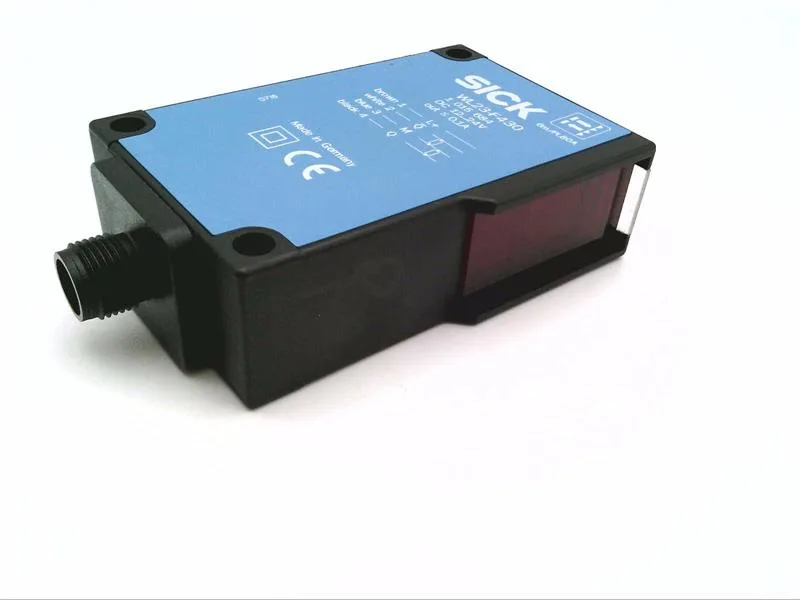

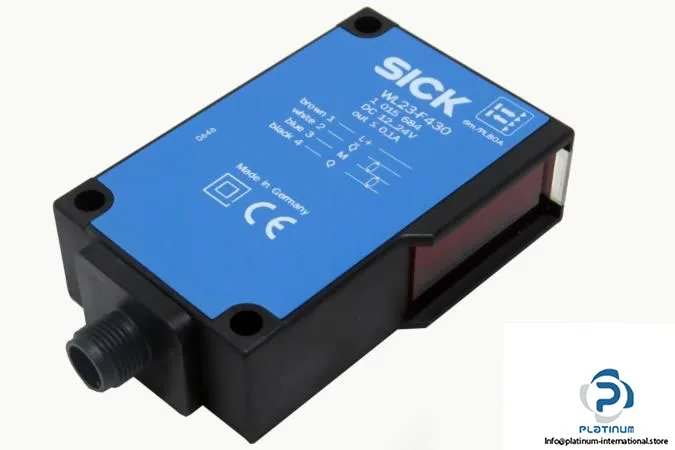

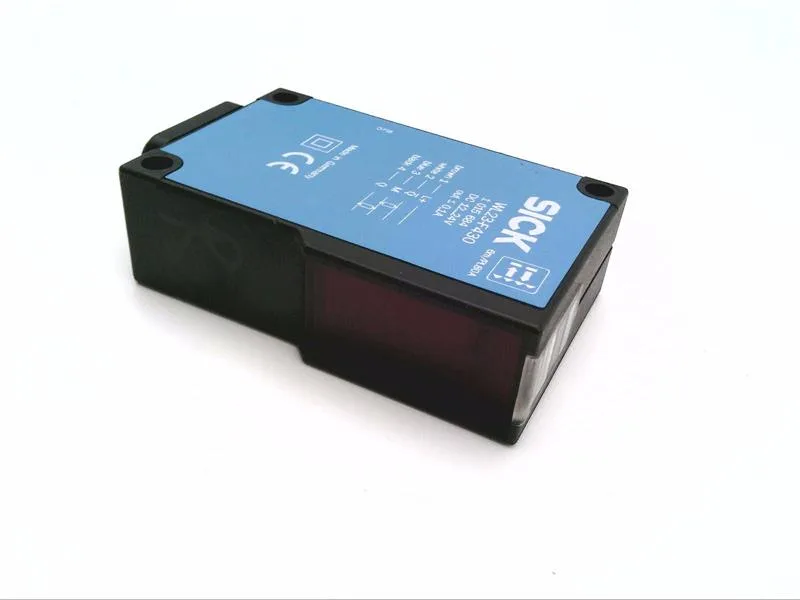

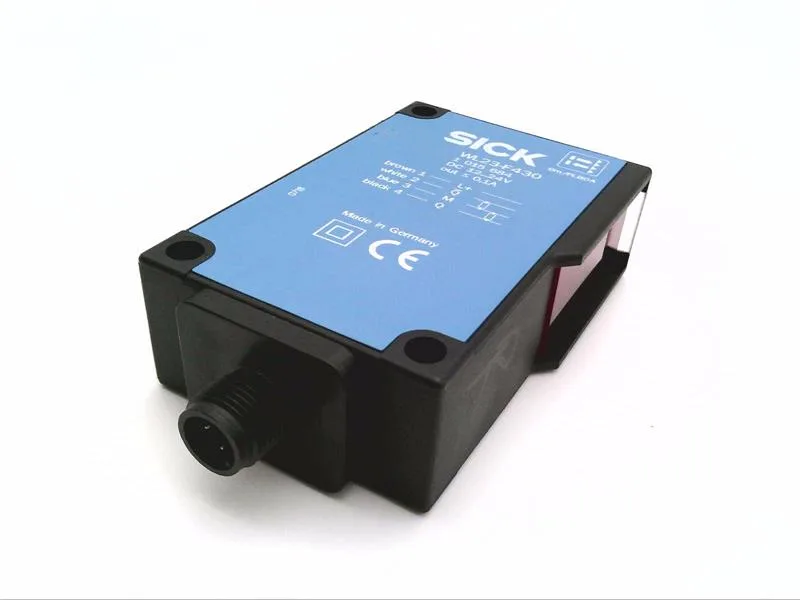

SICK WL23-F430 — Photoelectric Sensors

SICK WL23-F430 Photoelectric Sensor, PNP, 0.01-9 m Range, IP

MPNWL23-F430

SICK WL23-F430 photoelectric sensor, visible red LED, sensing range 0.01–9 m, PNP switching output, IP65, M12 4-pin male connector.

$16.50Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

WL23-F430 — Identification
ParameterValue
ModelWL23-F430
WL23-F430 — Sensing
ParameterValue
TypePHOTOELECTRIC SENSOR
Response time< 2.5 ms
Light sourceLED
WL23-F430 — Electrical
ParameterValue
Supply voltage10 … 30 V DC
WL23-F430 — Connection
ParameterValue
Connection typeMale connector M12, 4-pin
WL23-F430 — Specifications
ParameterValue
Sensing Range0.01 m … 9 m
Switching ModeLight/dark switching
ConditionUsed
WL23-F430 — Other specifications
ParameterValue
AdjustmentPotentiometer
Type of lightVisible red light
IP ratingIP65
Switching outputPNP
Power consumption≤ 25 mA
Ambient operating temperature–40 … +60 °C

Product details

The SICK WL23-F430 is a photoelectric sensor with a visible red LED light source, adjustable via potentiometer for light/dark switching. It covers a sensing range from 0.01 m to 9 m, with a response time under 2.5 ms. The PNP switching output and 10–30 V DC supply make it a straightforward drop-in for 24 V control systems. The M12 4-pin male connector means you can swap it without opening the panel — handy when the line is down and you're working off the van.

Rated IP65, so it handles washdown splashes and dusty environments on conveyor lines or packaging machines. The -40 to +60 °C operating range covers cold storage and hot plant floors. Power consumption is ≤ 25 mA, light on the 24 V supply.

Frequently asked questions

What is WL23-F430's listed type and model?

It is a PHOTOELECTRIC SENSOR, model WL23-F430.

Will WL23-F430 drop into a panel specified around WLF18-3V930 without rewiring?

The WL23-F430 uses an M12 4-pin male connector, while the WLF18-3V930 uses a different connection type (PVC cable, 2 m). The WL23-F430 also has a longer sensing range (9 m vs. 7 m) and a slower response time (<2.5 ms vs. 500 µs). They are not a direct mechanical or electrical swap without adapting the wiring.

Where can I buy WL23-F430 and how is it quoted for volume purchases?

The WL23-F430 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock count or price on this page.

MPN
WL23-F430
