SICK WL27-F430S03, photoelectric retro-reflective sensor, PNP switching output, 10 … 30 V DC, M18 4-pin connector, normally open + normally closed switching mode.
| Parameter | Value |
|---|---|
| Model | WL27-F430S03 |
| Parameter | Value |
|---|---|
| Type | PHOTOELECTRIC RETRO REFLECTIVE SENSOR |
| Parameter | Value |
|---|---|
| Operating voltage range | 10 … 30 V DC |
| Parameter | Value |
|---|---|
| Switching Mode | Normally Open + Normally Closed |
| Connector type | M18 Connector, 4-pin |
| Condition | Used |
| Parameter | Value |
|---|---|
| Housing | Threaded Type |
| Shelf no. | 220507 |
| Dimensions | 58 x 24 x 80 mm |
| Housing material | Plastic |
| IP rating | II |
| Switching output | PNP |

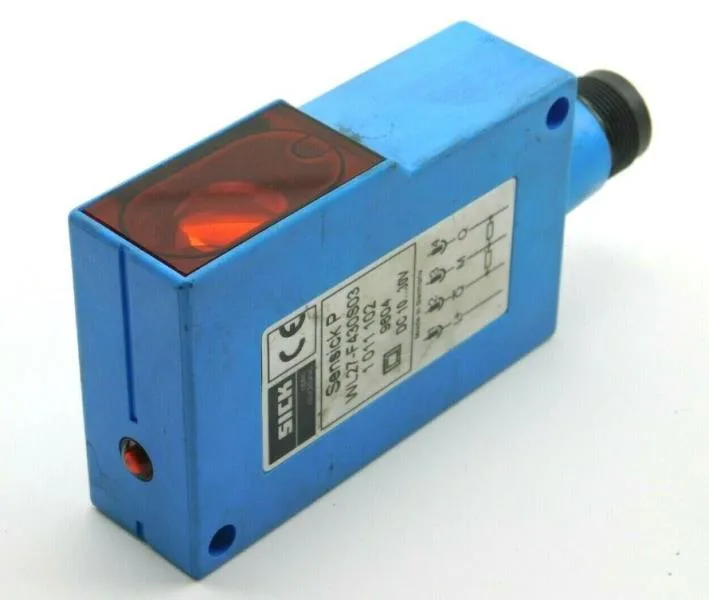

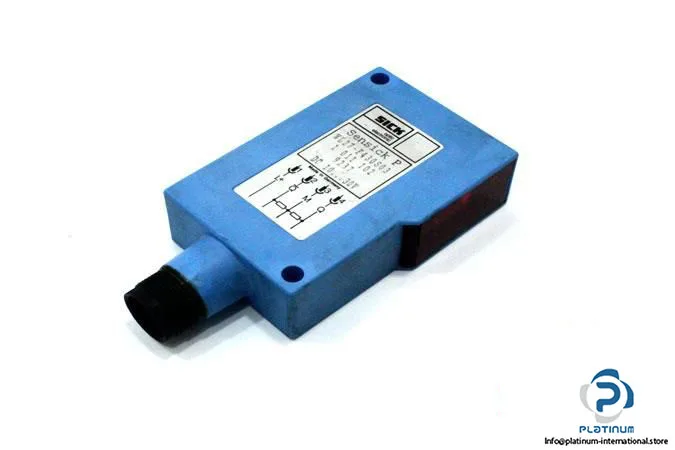

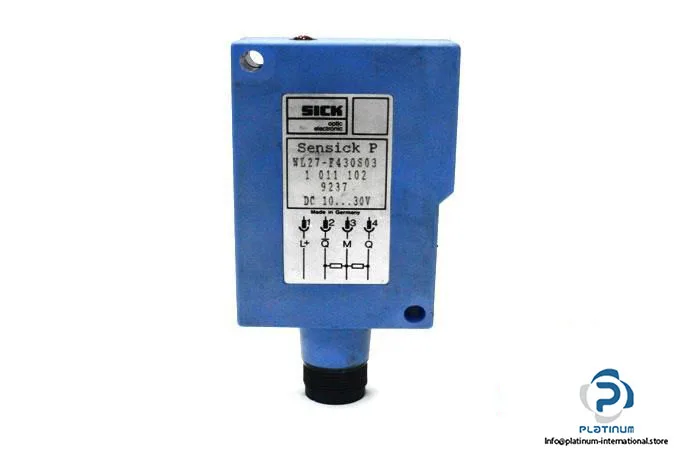

The SICK WL27-F430S03 is a photoelectric retro-reflective sensor in a threaded plastic housing, rated for 10 … 30 V DC with a PNP switching output. It switches in both normally open and normally closed modes through a single M18 4-pin connector.
The WL27-F430S03 is listed as current production.
It is a photoelectric retro-reflective sensor.
The model is WL27-F430S03.
Both are photoelectric retro-reflective sensors, but the WL27-F430S03 uses an M18 4-pin connector while the WLF18-3V930 may differ in connector type and sensing range. Verify the existing wiring and bracket before substituting.
