SICK WL6-P172
MPNWL6-P172

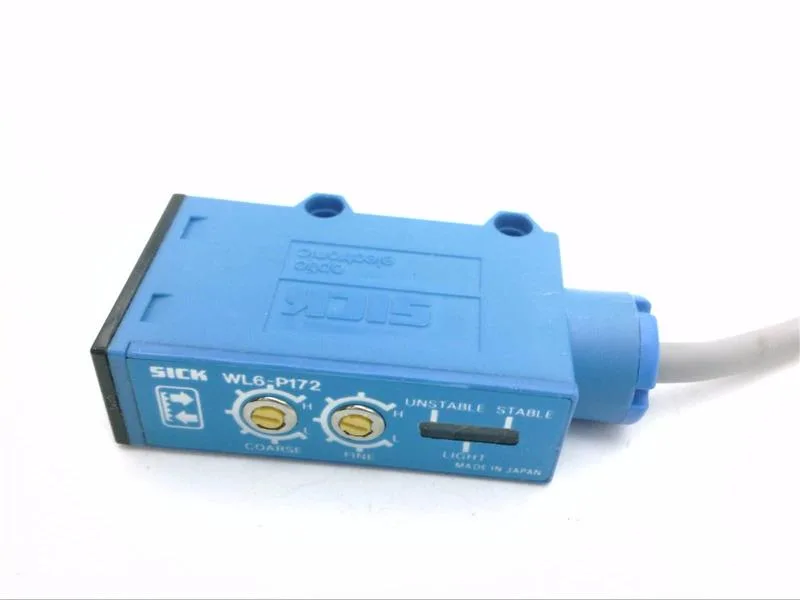

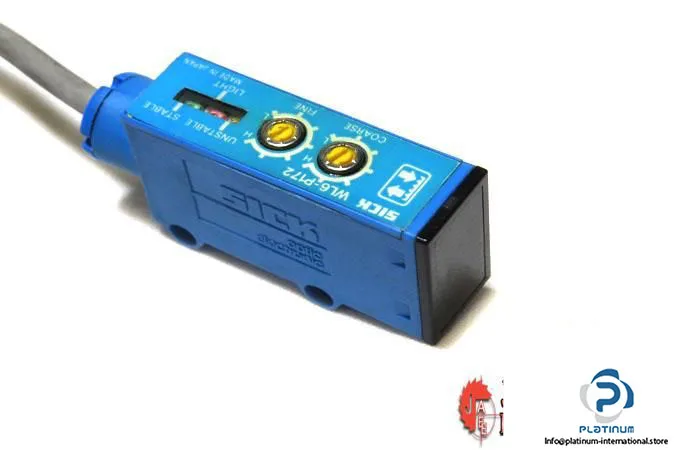

SICK WL6-P172 PHOTOELECTRIC REFLEX SWITCH
$50.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Model | WL6-P172 |
| Parameter | Value |
|---|---|
| Type | PHOTOELECTRIC REFLEX SWITCH |
| Parameter | Value |
|---|---|
| Supply voltage | 12 … 24 V DC |
| Parameter | Value |
|---|---|
| Condition | New |
| Parameter | Value |
|---|---|
| Weight | 0,12 kg |

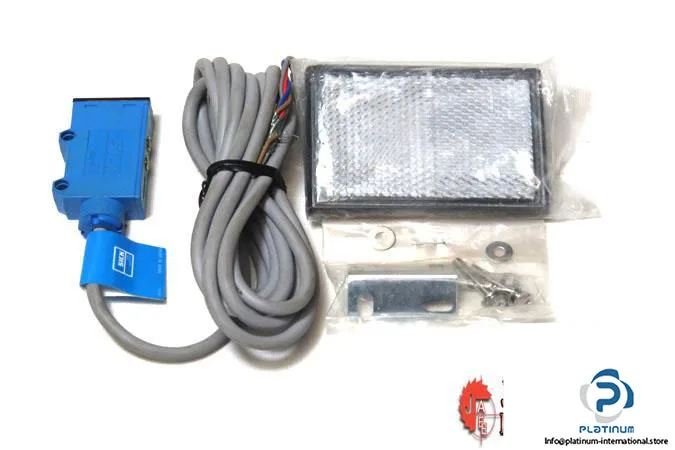

| Included items | Reflector PL 72, mounting brackets |
| IP rating | IP66 |
| Transistor output | PNP (current sourcing) |
| Light source, type | LED, Infrared |
| Response time max. | 0.7 ms |
| Output current max. | 100 mA |
| Output voltage max. | 30 V DC |
| Connection type, length | Cable, 2 m |
| Ambient operating temperature | -25 … +55 °C |
| Operating range (with reflector PL72) | 0.1 … 2 m |
MPN
WL6-P172
