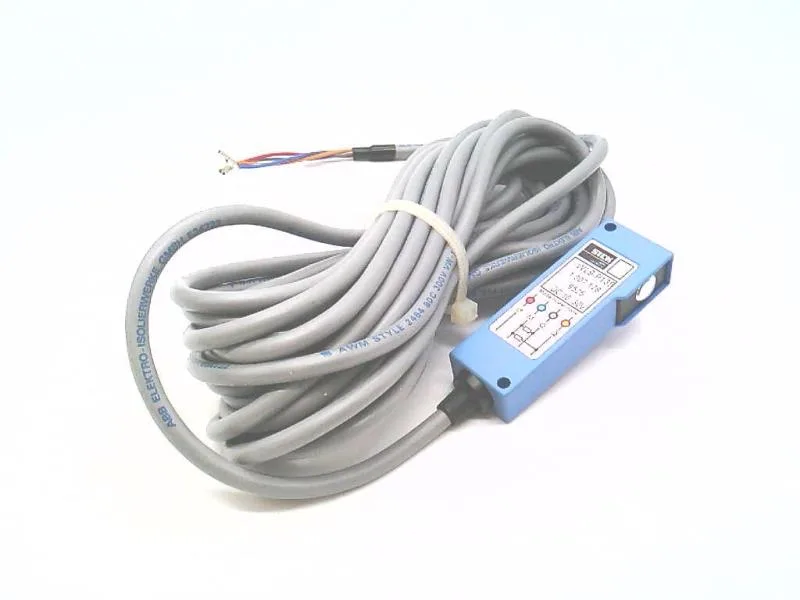

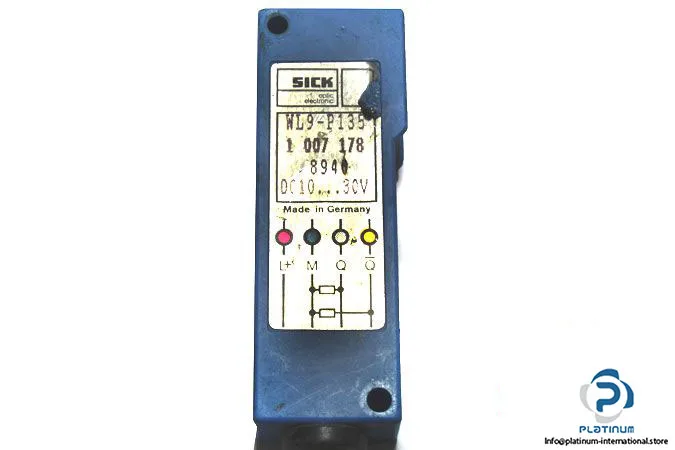

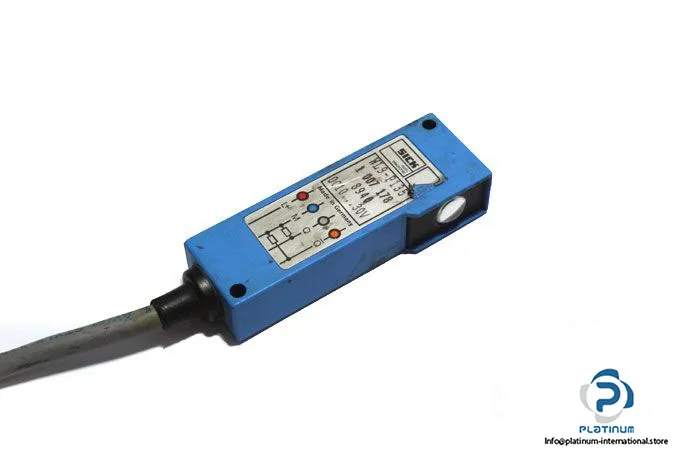

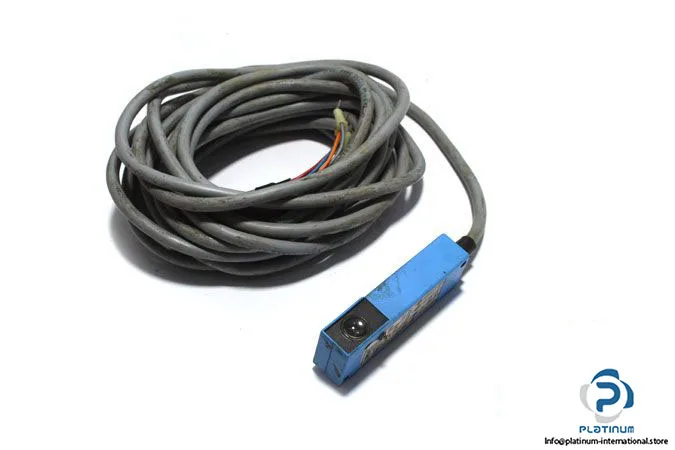

SICK WL9-P135, Photoelectric Reflex Switch, PNP, Light on / Dark on, Cable, 22 × 14 × 63 mm, 3 m sensing range, 30 V DC.
| Parameter | Value |
|---|---|
| Electrical Design | PNP |
| Switching Mode | Light on / Dark on |
| Parameter | Value |
|---|---|
| Successor | WL9-2P231 |
| Product type | Photoelectric Reflex Switch |
| Switch_output | PNP |
| Connector_type | Cable |
| Dimensions_text | 22 × 14 × 63 mm |
| Supply voltage | 30 |
| Switching_output_type | Light/Dark Switching |
| Sensing distance max | 3000 |
The SICK WL9-P135 is a photoelectric reflex switch with a PNP output, switching mode selectable between light-on and dark-on, and a cable connection. It operates on a 30 V DC supply and provides a maximum sensing distance of 3 m (3000 mm). The housing measures 22 × 14 × 63 mm.
The 3 m sensing range suits applications like presence detection on conveyors or through small gaps in packaging lines. The PNP output and cable connection simplify wiring into standard 24 V DC control systems.
The official successor is the WL9-2P231.
The maximum sensing distance is 3 m (3000 mm).
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
