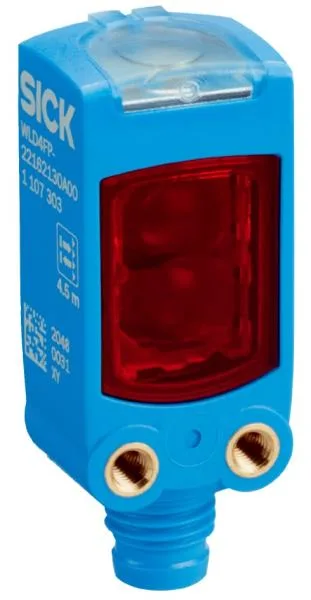

SICK WLD4FP-213111A0ZZZ
MPNWLD4FP-213111A0ZZZ
Miniature Optical Sensor Push-Pull 4.5m 500us 30V 100mA PinPoint LED, Visible Red Light Connector, M8, 3-Pin IP66 / IP67 / IP69 W4-3
$86.36 – $123.01Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | W4-3 |
| Sensor type | Photoelectric Retro-Reflective Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 4.5 m |
| Sensing distance, min. | 15 mm |
| Response time | 500 us |
| Light type | PinPoint LED, Visible Red Light |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | Push-Pull |
| Load current | 100 mA |
| Switching type | Dark ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M8, 3-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP66;IP67;IP69 |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 16 mm |
| Height | 40 mm |
MPN
WLD4FP-213111A0ZZZ
