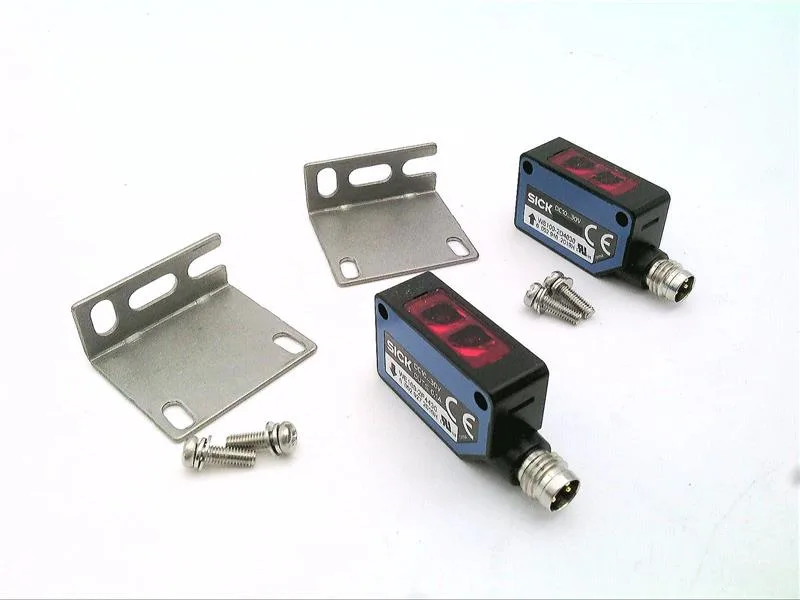

SICK WS/WE100-2P4439 — Photoelectric Sensors

SICK WS/WE100-2P4439 Through-Beam Sensor, 3 m, PNP, IP67

MPNWS/WE100-2P4439

SICK W100-2 through-beam photoelectric sensor, WS/WE100-2P4439, 3 m sensing range, PNP output, 500 µs response, IP67, M8 connector.

$114.30 – $146.99Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

WS/WE100-2P4439 — Identification
ParameterValue
SeriesW100-2
Sensor typeThrough-Beam Photoelectric Sensor
WS/WE100-2P4439 — Sensing
ParameterValue
Sensing distance, max.3 m
Response time500 us
Light typeLED, Visible Red Light
WS/WE100-2P4439 — Electrical
ParameterValue
Operating voltage, min.10 V
Operating voltage, max.30 V
WS/WE100-2P4439 — Output
ParameterValue
Output typePNP
Load current100 mA
Switching typeLight-ON / Dark-ON
WS/WE100-2P4439 — Connection
ParameterValue
Termination typeConnector, M8, Male
WS/WE100-2P4439 — Environmental
ParameterValue
Protection rating (IP)IP67
Operating temperature, min.-25 °C
Operating temperature, max.55 °C
WS/WE100-2P4439 — Mechanical
ParameterValue
Length20 mm
Width11 mm
Height31 mm

Product details

The SICK WS/WE100-2P4439 is a through-beam photoelectric sensor from the W100-2 series, with a 3 m sensing range and PNP output. It switches at 500 µs, handles 100 mA load current, and works across 10–30 VDC. The body is 11 mm wide, 31 mm tall, 20 mm deep — fits tight DIN-rail or bracket-mount spots.

3 m through-beam range means the emitter and receiver must be aligned across that gap — good for conveyor belt presence, pallet detection, or part-in-place at a machine station. The 500 µs response catches fast-moving parts on a moderate-speed line; if you're counting small parts at high throughput, check whether that latency stacks with your PLC scan. IP67 means the housing and optics survive washdown — suitable for food-and-bev lines, outdoor conveyor transfer points, or anywhere hoses hit the machine. The M8 male connector (4-pin) means you pull a pre-made cable, not hard-wire into the sensor; keep a few M8 cordsets on the van. Light-ON / Dark-ON switching is selectable, so you can set it to output when the beam is made or broken. That's one less converter block in the cabinet.

Frequently asked questions

What is the sensing range of WS/WE100-2P4439?

3 m for the through-beam pair (emitter and receiver).

What connector does this sensor use?

M8 male, 4-pin — a standard M8 cordset mates directly.

Where can I buy WS/WE100-2P4439?

Sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

How does this compare to the WS/WE150-P430?

The WS/WE150-P430 has a wider 4.4 m range in a slightly smaller 10 mm × 28 mm body, but uses the same M8 connector, PNP output, and IP67 rating. If your panel is tight on width, the W150 saves 1 mm; if you need the extra 1.4 m of range, that's the pick. Otherwise the W100-2 is a drop-in for most 3 m through-beam jobs.

MPN
WS/WE100-2P4439
