SICK WS30-01
MPNWS30-01

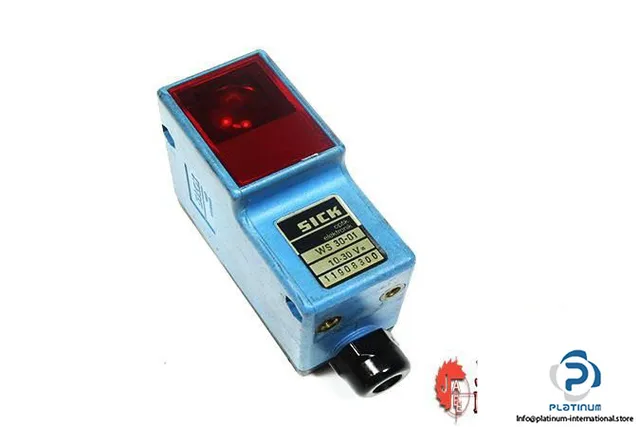

SICK WS30-01 PHOTOELECTRIC PROXIMITY SENSOR
$42.50 – $63.18Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Model | WS30-01 |
| Parameter | Value |
|---|---|
| Type | PHOTOELECTRIC PROXIMITY SENSOR |
| Response time | ≤ 15 ms |
| Parameter | Value |
|---|---|
| Supply voltage | 10 V DC … 30 V DC |
| Parameter | Value |
|---|---|
| Connection type | Terminal, PG9 |
| Parameter | Value |
|---|---|
| Switching Mode | Light/dark switching |
| Condition | Used |
| Parameter | Value |
|---|---|
| Ripple | < 10 Vpp |
| Weight | 0,19 kg |
| Configured with | WT30-01 |
| IP rating | IP65 |
| Power consumption | ≤ 80 mA |
| Sensing range max. | 30 mm … 300 mm |
| Detection principle | Background suppression |
| Dimensions (W x h x d) | 36 mm x 85 mm x 72 mm |
| Ambient operating temperature | –25 °C … +55 °C |
MPN
WS30-01
