SICK WT18-2P420
MPNWT18-2P420

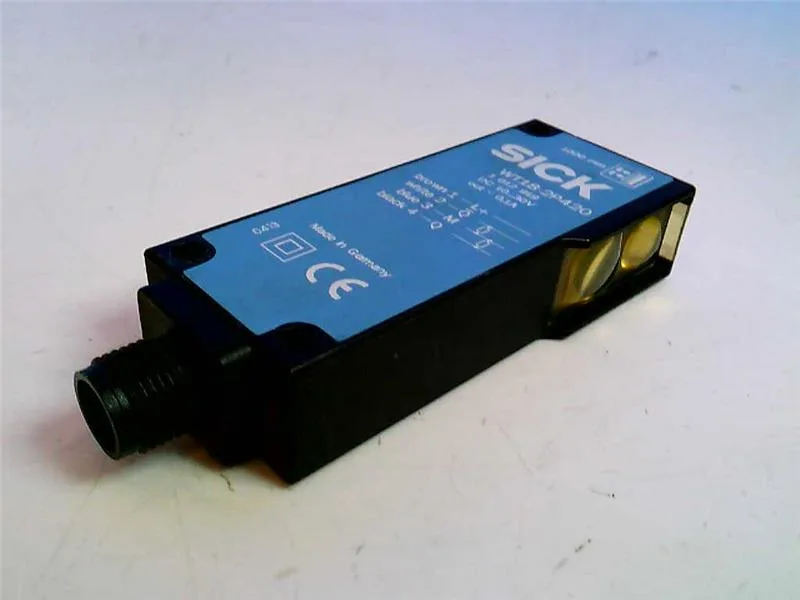

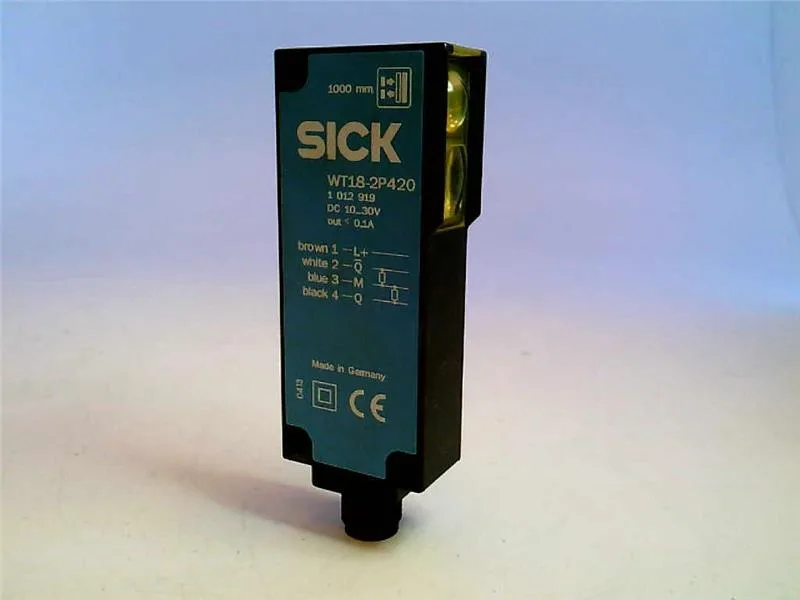

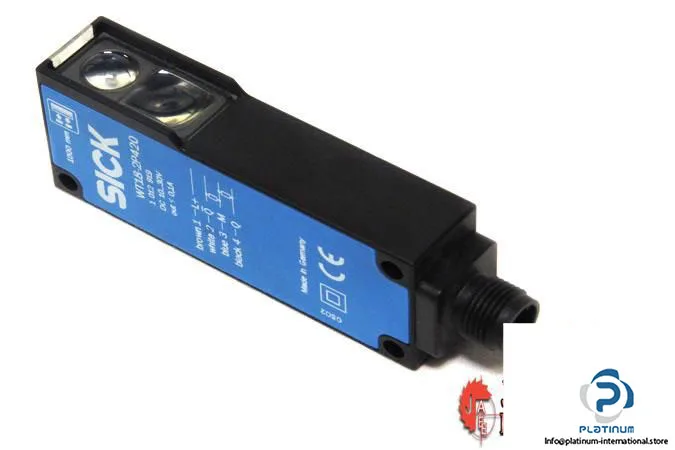

SICK WT18-2P420 PHOTOELECTRIC PROXIMITY SENSOR
$35.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Model | WT18-2P420 |
| Parameter | Value |
|---|---|
| Type | PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION |
| Parameter | Value |
|---|---|
| Supply voltage | 10 … 30 V DC |
| Parameter | Value |
|---|---|
| Connection type | Male connector M12, 4-pin |
| Parameter | Value |
|---|---|
| Switching Mode | Light/dark switching |
| Condition | New |
| Parameter | Value |
|---|---|
| Ripple | ≤ 5 V |
| Adjustment | Potentiometer |
| IP rating | IP65 |
| Switching output | PNP |
| Light source, type | LED, infrared light |
| Sensing range max. | 50 … 1,000 mm |
| Output current max. | ≤ 0.1 A |
| Dimensions (W x h x d) | 17 X 75 X 32.5 mm |
| Ambient operating temperature | -40 … +60 °C |
| Power consumption (without load) | ≤ 25 mA |
| Response time (with resistive load) | < 700 µs |
MPN
WT18-2P420
