SICK WT30-11
MPNWT30-11

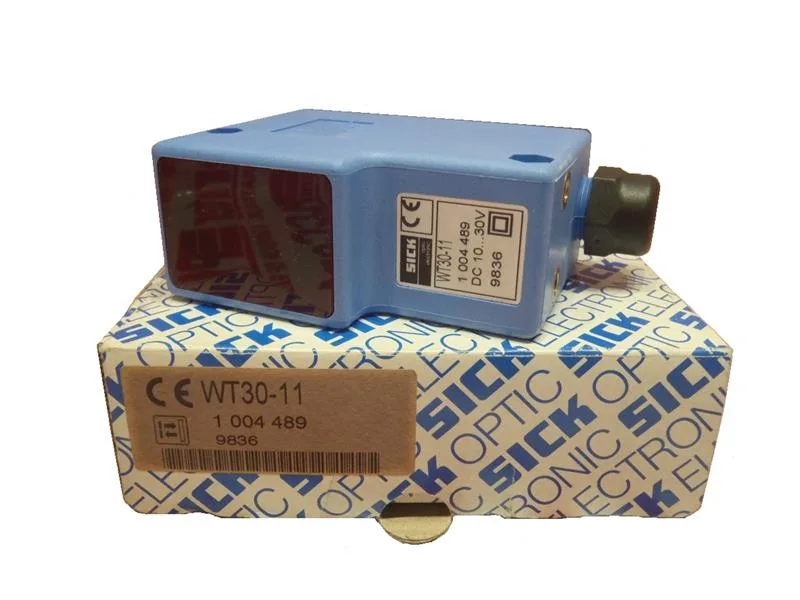

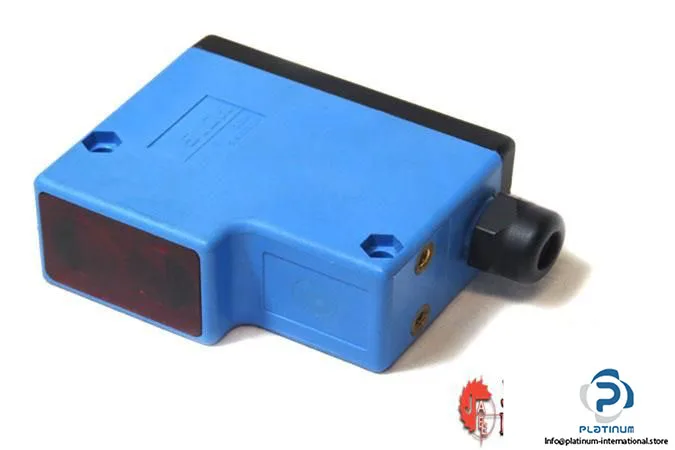

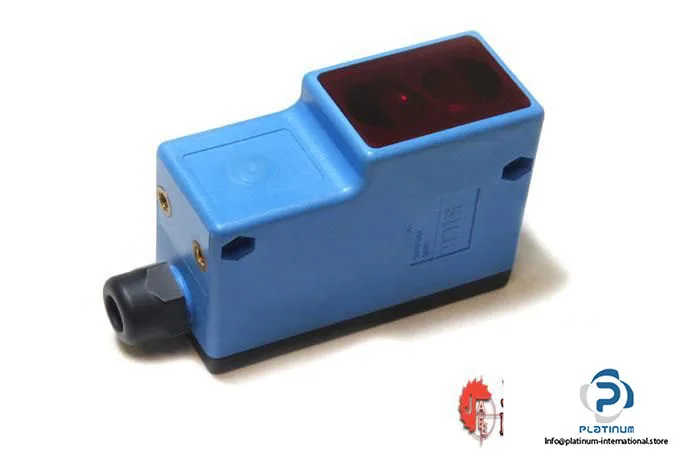

SICK WT30-11 PHOTOELECTRIC PROXIMITY SENSOR
$32.50Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Model | WT30-11 |
| Parameter | Value |
|---|---|
| Type | PHOTOELECTRIC PROXIMITY SENSOR |
| Parameter | Value |
|---|---|
| Supply voltage | 10 … 30 V DC |
| Parameter | Value |
|---|---|
| Connection type | Terminal, PG9 |
| Parameter | Value |
|---|---|
| Switching Mode | Light/dark switching |
| Condition | New |
| Parameter | Value |
|---|---|
| , | BACKGROUND SUPPRESSION |
| Ripple | pp |
| Weight | 0,22 kg |
| IP rating | IP65 |
| Power consumption | ≤ 80 mA |
| Light source, type | LED, visible red light |
| Sensing range max. | 15 mm … 100 mm |
| Dimensions (W x h x d) | 36 X 85 X 72 mm |
| Ambient operating temperature | -25 … +55 °C |
| Response time( with resistive load) | ≥ 15 ms |
MPN
WT30-11
