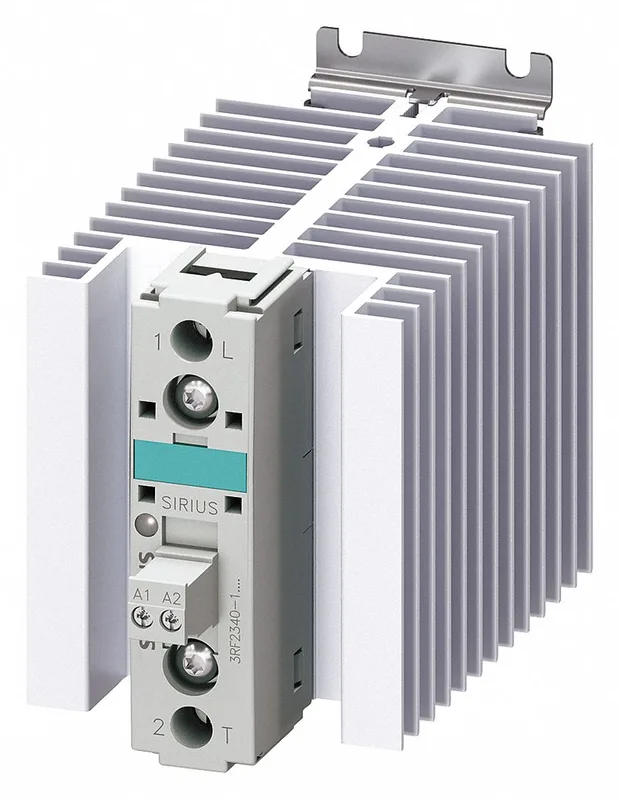

The Siemens 3RF2340-1AA04 is a SIRIUS solid-state contactor — a single-phase, zero-point switching device rated for resistive and lightly inductive loads. The 40 A AC-51 rating covers resistive heater banks, ovens, and lighting circuits where inrush is minimal. For UL 508 installations, it carries a 36 A rating, so a panel built to NEC rules uses that lower figure for branch-circuit protection sizing. Zero-point switching means the thyristor turns on at the voltage zero-crossing, which minimizes radiated EMI and mechanical shock on the load. Off-state leakage is 10 mA reverse current per thyristor — fine for most loads but worth noting if the downstream circuit expects a hard open.
The 67 mm width and 100 mm height mean it occupies roughly the same footprint as a 3-pole contactor — plan for that slot in the enclosure layout. Side-by-side mounting is allowed, so no mandatory spacing gap between units, but the 44 W heat dissipation at rated AC load needs to be vented or derated if packed tight. Screw terminals for both main and control circuits. The main circuit accepts 1.5–6 mm² solid/stranded or 2x 14–10 AWG. The 7 mm contact gap on the main contacts is the physical air gap — not a functional spec for the solid-state switching, but relevant for isolation verification during lockout.
RoHS compliance date is 2006-07-01, which covers the EU RoHS exemption structure. The insulation voltage is rated 600 V, and the operating frequency range is 50/60 Hz. For a spare-parts kit or a replacement in an older panel, confirm the supply voltage falls within 48–460 VAC and the control voltage within 40–506 VAC.
