Siemens 3RP2540-1BW30

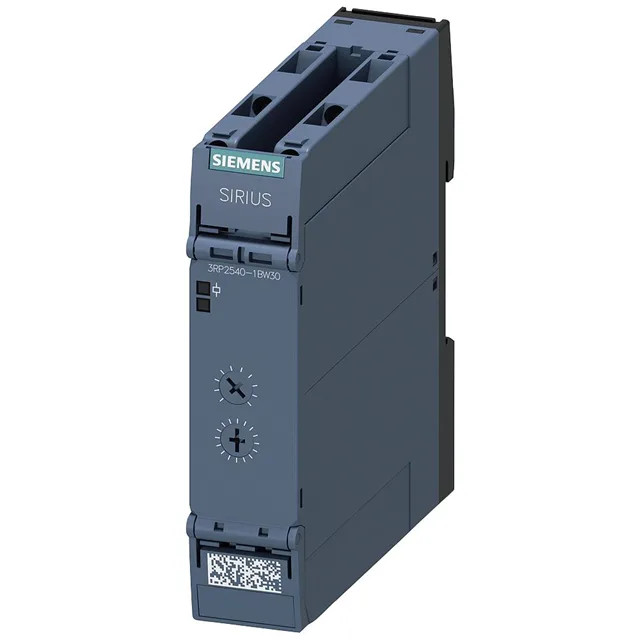

Siemens 3RP2540-1BW30 SIRIUS timing relay, 0.05–600 s

MPN 3RP2540-1BW30
Active

Siemens SIRIUS 3RP2540-1BW30 multifunction timing relay, 12-240 V AC/DC supply, 5 A thermal current, 0.05-600 s adjustable, 22.5 mm DIN rail housing.

$91.44 – $237.60 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RP2540-1BW30 specifications
ParameterValue
IP ratingIP20
Depth90 mm
Width22.5 mm
Height100 mm
Recovery time250 ms

Product details

What it does on the DIN rail

The Siemens 3RP2540-1BW30 is a SIRIUS multifunction timing relay in the 22.5 mm-wide DIN-rail housing, sitting on a standard 35 mm rail with screw-and-snap-on fastening so it lands in a control-cabinet slot next to other SIRIUS 3RP timers.

Time range, output, and what the contact rating actually carries

Time is adjustable from 0.05 s to 600 s, with the setting scale referenced against an initial value of 0.85 and a full-scale value of 1.1 — meaning the trim pots are read against a normalised scale, not against the absolute second count, and the panel-builder dials in the intended setpoint within that window. Settings are non-volatile, so the programmed setpoint survives a control-power blip; the function block listed here is delayed switching with two changeover outputs, no ON-delay, no OFF-delay, and no star-delta or pulse-shaping logic — it is a straightforward two-stage delayed switching timer.

Panel-side mounting and wiring

Mounting position is unrestricted (any), so the timer goes in vertically-packed cabinets without derating notes on the drawing; tightening torque on the screw terminals is 0.6 to 0.8 N·m, which matters when the same screwdriver is being used across the SIRIUS row to avoid cracking the housing. The terminal accepts solid conductors from 20 to 12 AWG and stranded from 20 to 14 AWG, covering the typical control-wire gauges run to a 5 A timer in a motor-starter bay.

MPN
3RP2540-1BW30
