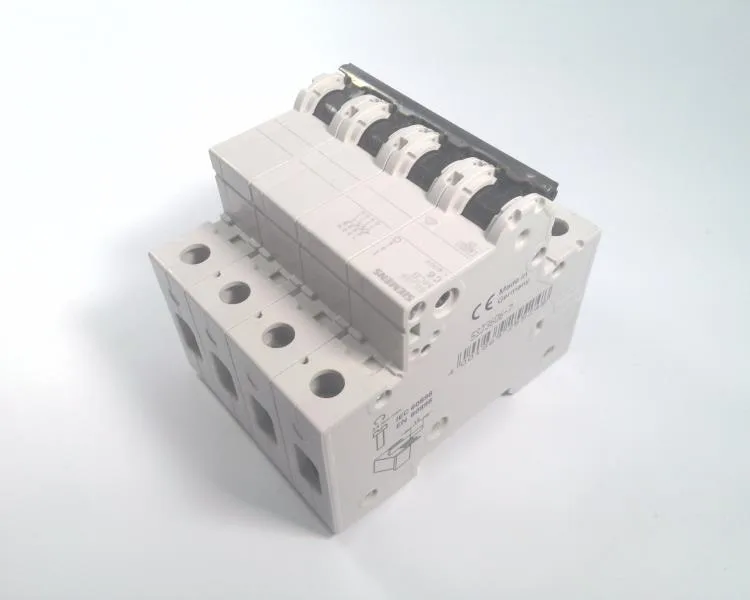

Siemens 5SJ3606-7 — 4-Pole MCB (DIN Rail)

Siemens 5SJ3606-7 SENTRON MCB, 6A C-Curve 3P+N 4.5kA

MPN5SJ3606-7

Siemens SENTRON 5SJ3 series, miniature circuit breaker 5SJ3606-7, 6 A rated, C-curve, 3P+N 4-pole, 4.5 kA breaking capacity at 400 V AC, 70 mm installation depth.

$133.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SJ3606-7 — Identification
ParameterValue
Type / order code5SJ3
Brand nameSENTRON
5SJ3606-7 — Ratings
ParameterValue
Number of poles4
Pole configuration3P+N
Rated current (In), AC6 A
Rated voltage, DC (max.)60 V
Voltage typeAC/DC
Rated frequency50 Hz
5SJ3606-7 — Protection
ParameterValue
Tripping characteristic (trip curve)C
Rated breaking capacity (Icn), per EN 608984.5 kA
Rated breaking capacity, per IEC 60947-24.5 kA
Overvoltage category3
Degree of protection (IP)IP20, with connected conductors
Touch protectionYes
5SJ3606-7 — Mechanical
ParameterValue
Width in modular units4
Installation depth70 mm
Mounting positionany
SealableYes
5SJ3606-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of ambient temperature (derating)Periodically +55°C, max. 95% humidity
5SJ3606-7 — Performance
ParameterValue
Mechanical service life (switching cycles, typ.)20 000

Product details

Its 4.5 kA breaking capacity per EN 60898 and IEC 60947-2 at 400 V AC means it can safely interrupt fault currents up to that level — adequate for most sub-distribution boards where the prospective short-circuit current stays under that threshold.

The C-curve trips between 5 and 10 times rated current — 30 to 60 A for this 6 A unit — making it the right choice for circuits with moderate inrush, like small motor loads, lighting banks, or transformer primaries. A B-curve would nuisance-trip on the same inrush; a D-curve would let a fault run too long. At 6 A it protects a branch circuit feeding, for example, a handful of contactors, a small control transformer, or a lighting sub-panel. The IP20 rating (with conductors connected) is standard for enclosed panel-mount — no special sealing needed inside the cabinet.

Mounting position is any. Halogen-free and silicon-free construction matters in environments where off-gassing from a fault could corrode nearby contacts or sensitive electronics — a real concern in cement plant control rooms with exposed relay contacts.
