What it is and what it does

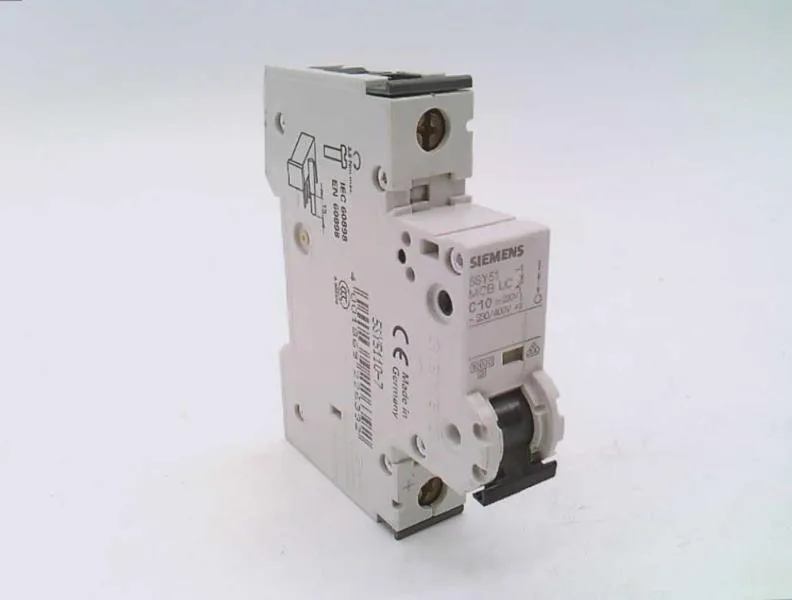

The Siemens 5SY5110-7 is a SENTRON miniature circuit breaker — one pole, C-curve tripping characteristic, rated for universal current (AC/DC). It breaks fault currents up to 10 kA per EN 60898 and 15 kA per IEC 60947-2 on DC circuits. The C-curve means it trips between 5 and 10 times rated current, so it handles moderate inrush from motor starters or small transformers without nuisance tripping, while still clearing a hard short. Rated 400 V AC (single- or multi-phase) and 220 V DC, with a maximum DC operating voltage of 250 V. The 1 MW width (18 mm) fits standard DIN-rail enclosures; the quick-assembly fastening and any mounting position simplify panel layout.
Where it fits in the panel
Snaps onto a DIN rail in any orientation — the mounting position is unrestricted. Depth is 76 mm (70 mm installation depth behind the panel surface), so it clears a standard 80 mm deep enclosure. The combined terminals top and bottom accept conductors without separate busbar adapters for daisy-chaining. Rated for pollution degree 3 and overvoltage category III, meaning it's suited for fixed installations inside an industrial control panel where conductive pollution could occur. The IP20 rating (with connected conductors) is typical for enclosed breakers — no special sealing needed inside the cabinet.
What the ratings mean for your decision
The 10 kA breaking capacity per EN 60898 covers most commercial and light industrial panelboards where the prospective short-circuit current stays under that threshold. The 15 kA DC rating per IEC 60947-2 is the higher ceiling — if your DC bus can deliver more than 10 kA but less than 15 kA, this breaker still clears it. The C-curve is the default for general-purpose distribution; if your load is purely resistive (heaters, lighting) a B-curve would trip faster, but for mixed loads with small motors this is the right characteristic. Halogen-free and silicon-free construction matters for environments where outgassing during a fault could contaminate optics or electronics — semiconductor fabs, medical device assembly, or cleanroom-adjacent panels. The sealable option (padlockable handle) allows lockout/tagout without an external lockout hasp.
