What this BaseUnit does in the ET 200SP system

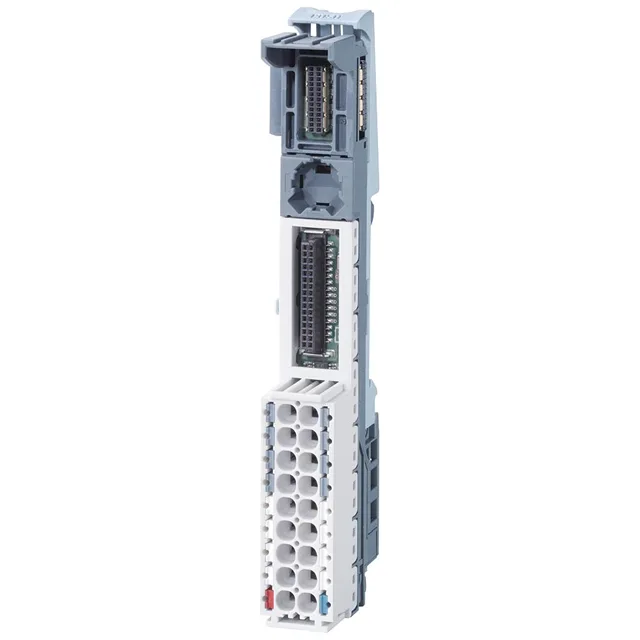

The Siemens 6ES7193-6BP00-0DA1 is a SIMATIC ET 200SP BaseUnit, Type A1. It provides the mechanical and electrical connection for one I/O module in a distributed I/O node. The 15 mm width occupies one slot on the mounting rail. It supplies 16 process terminals to the I/O module, has no AUX bus terminals, and includes an integrated temperature sensor.
Key specs that decide fit
Width is the fit-critical dimension here — at 15 mm, this BaseUnit takes one slot on the DIN rail. If your panel layout was calculated for 15 mm ET 200SP slots, this drops right in. Depth is 35 mm, height is 117 mm. The push-in terminal type means you terminate solid or ferruled stranded wire (0.14 to 2.5 mm², AWG 26 to 14) without a screwdriver — tool-free, which saves time on a multi-slice build. Electrically, the BaseUnit passes 24 V DC on the and bus bars at up to 10 A. The process terminals (16 of them, connecting to the I/O module) are rated at 2 A max. It creates a new potential group — meaning the load group isolation starts here, not continued from the left. The integrated temperature sensor reports back to the system, letting the controller monitor for overheating conditions inside the enclosure. Environmental limits: horizontal installation allows up to 60 °C, vertical up to 50 °C. Minimum operating temperature is -30 °C in both orientations. Installation altitude goes to 5 000 m with derating above 2 000 m per the manual. Isolation is type-tested at 707 V DC between the potential groups and the backplane bus.
Temperature sensor — what it buys you in the field
The integrated temperature sensor is a diagnostic feature, not a control input. It reports the BaseUnit's internal temperature back to the ET 200SP interface module. On a commissioning call, if you see a thermal warning from this slice, you know the enclosure ventilation or ambient conditions need attention before the I/O module starts dropping signals. It's one less thing to troubleshoot blind.
