Siemens 6ES7951-0KF80-0AA0 — PLC Accessories

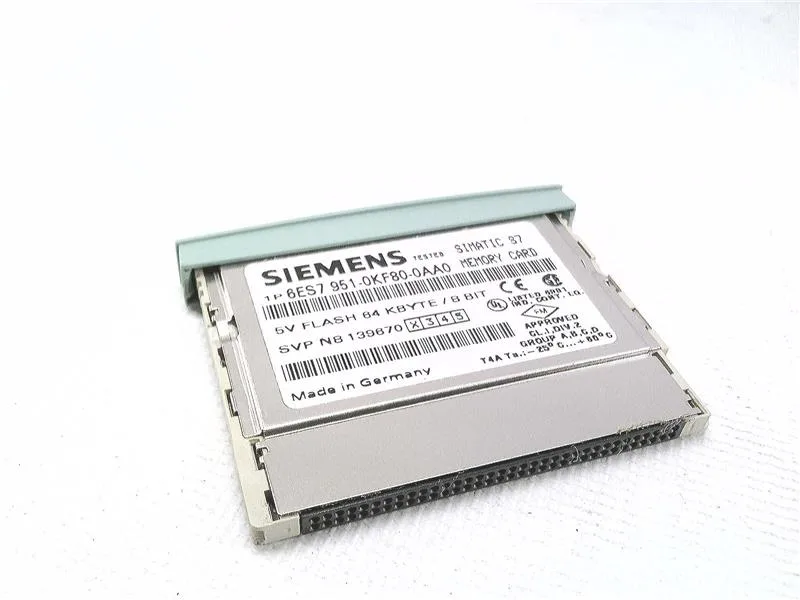

Siemens 6ES7951-0KF80-0AA0 S7-300 Memory Card, 64 kbyte Flas

MPN6ES7951-0KF80-0AA0

Siemens SIMATIC S7-300, memory card for expanded temperature range, short version 5 V Flash EPROM, 64 kbytes.

$788.84Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7951-0KF80-0AA0 — Specifications
ParameterValue
Memory size64 kbyte
Type of memoryFlash-EPROM
Weight, approx.40 g
Belongs to productS7-300

Product details

The Siemens 6ES7951-0KF80-0AA0 is a 64 kbyte Flash-EPROM memory card for the S7-300 PLC family, specifically the short-version variant rated for an expanded temperature range. It stores the user program, parameters, and data in non-volatile memory — no battery backup required, so the program survives a power cycle without a backup battery on the CPU.

The 64 kbyte capacity is enough for mid-size S7-300 programs — think a packaging machine or a conveyor cell with a few hundred I/O points and some PID loops. Flash-EPROM means the memory is electrically erasable and reprogrammable in-circuit via STEP 7, so field updates don't require removing the card. The expanded temperature range (typically -40 to +70 °C, though the exact limits are on the CPU's datasheet) suits outdoor cabinets, cold storage, or near-oven zones where standard cards would drift.

Frequently asked questions

What memory size and type does this card have?

64 kbyte of Flash-EPROM memory. It is non-volatile and does not require a battery to retain the program.

Will this card work in any S7-300 CPU?

Yes, it belongs to the S7-300 product family and fits all S7-300 CPUs that accept the short-format memory card. It is specifically the expanded-temperature-range variant, so it can be used in standard environments as well.

How does this compare to the standard S7-300 memory card?

The 6ES7951-0KF80-0AA0 is the expanded-temperature-range version of the standard 64 kbyte Flash-EPROM card (6ES7951-0KF00-0AA0). The only difference is the wider temperature tolerance — same capacity, same form factor, same programming procedure. Use this one if the cabinet sees extremes; otherwise the standard card is functionally identical.

MPN
6ES7951-0KF80-0AA0
