What it is and what it does

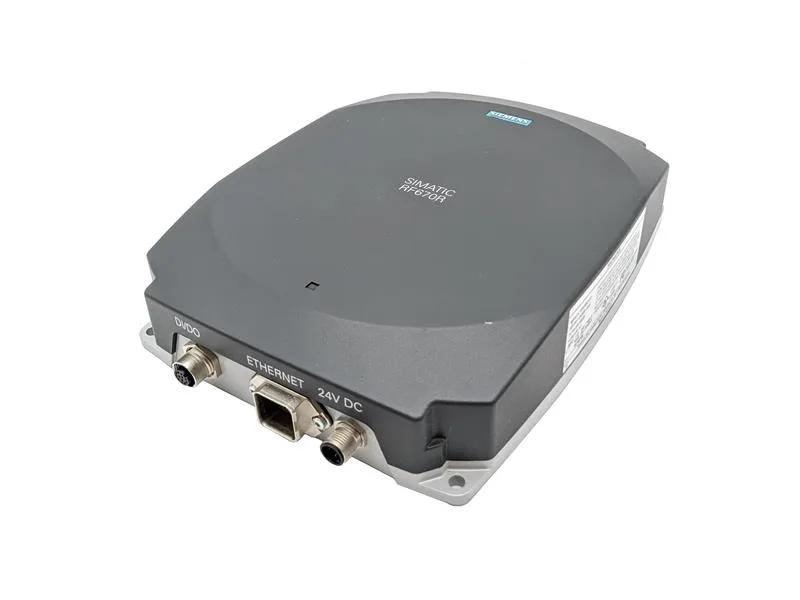

The Siemens 6GT2811-0AB00-1AA0 is a fixed UHF RFID reader from the RF600 family, built for identifying RF600 transponders and connecting to Ethernet networks. It operates in the 902 to 928 MHz ISM band (US/Canada) and supports the EPCglobal Class 1 Gen 2 / ISO 18000-6C protocol, so it reads standard Gen2 tags from any supplier. Transmit power is adjustable from 50 to 1250 mW, and the reader can drive up to four external antennas via RP-TNC connectors, with cable runs up to 40 m per antenna. Maximum range per antenna is 8 m; extended ranges are possible with higher-gain antennas or optimized settings per the RF600 System Manual. The enclosure is IP65-rated, aluminum and ABS (GF20) construction, silver/anthracite. It mounts with four M6 screws or VESA 100 pattern with M4 screws. The housing withstands shock to 500 m/s² and vibration to 200 m/s² per EN 60068-2-27 and EN 60068-2-6, so it holds up on conveyors or near press lines.
Key ratings and what they mean for fit
The reader operates in the 902 to 928 MHz band. It supports EPCglobal Gen2 / ISO 18000-6C protocol. Maximum transmit power is 1250 mW. Range per antenna is 8 m. Four antenna ports let you cover multiple read points (e.g., four dock doors, or two antennas per portal for dual-polarized coverage). Each port can deliver up to 4000 mW ERP when using external antennas with gain — the reader compensates for cable loss automatically. The RP-TNC connectors are standard for UHF RFID antennas; most antennas ship with the same interface. Power draw: 0.45 A typical at 24 VDC, 2 A maximum (when all four antennas are transmitting at full power). Supply comes through a 4-pin M12 male connector. The reader also has four digital inputs and four digital outputs on a 12-pin M12 connector, so you can wire external sensors (e.g., photoelectric triggers) or control indicators directly. MTBF of 14 years is the mean time between failures under continuous operation at 40 °C ambient. For a fixed reader in a conditioned panel, that is a solid reliability figure — you can plan spares around a 10+ year service life before random failures become likely.
Where it is used
This class of UHF RFID reader is deployed in logistics (conveyor sortation, dock-door read portals), manufacturing (work-in-progress tracking, tool cribs), and asset management (pallet/container tracking in warehouses and yards). The IP65 rating means it can be mounted directly on a conveyor frame or in a washdown area without a separate enclosure. Ethernet connectivity (push-pull RJ45) lets it integrate directly into plant networks — no serial gateway needed. The reader supports standard industrial protocols for data exchange; the RF600 family is commonly paired with Siemens controllers but works with any system that can parse ASCII or XML tag data over TCP/IP.
