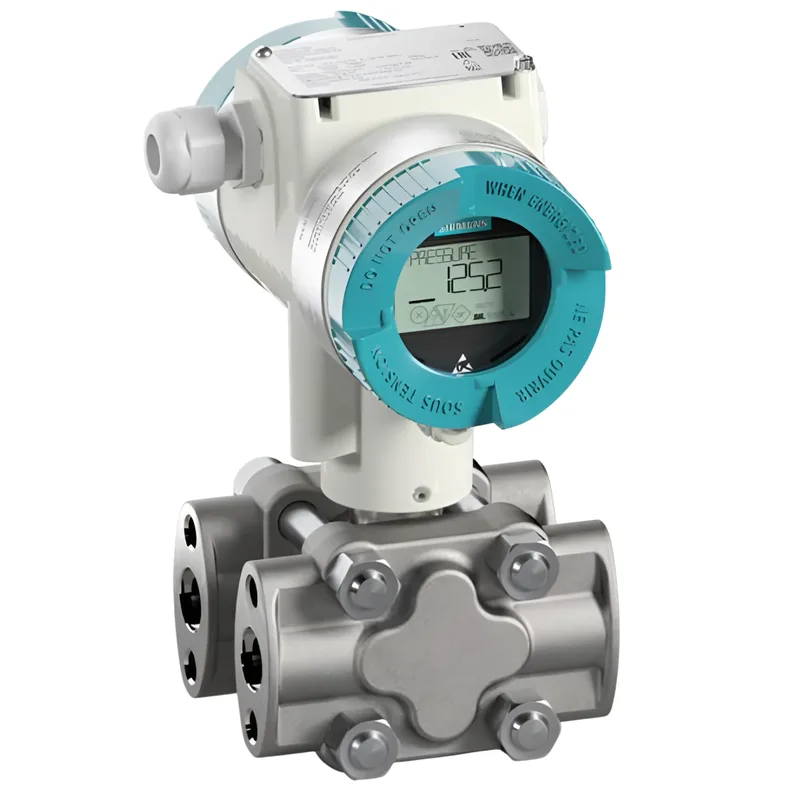

Siemens 7MF0300-1JE01-5AM2-Z A00+B35+E00
MPN7MF0300-1JE01-5AM2-Z A00+B35+E00
Pressure Transmitters For Gauge Pressure
$731.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type of protection | A = Without Ex |
| Enclosure | 5 = Dual chamber device |
| Protocol | 0 = HART, 4 ... 20 mA |
| Process connection | E = Female thread ½-14 NPT |
| Cable glands included | A00 = Plastic |
| Electrical connections (cable entries) | M = 2 x ½-14 NPT |
| Weight | Approx. 4.2 kg (9.25 lb) |
| Shipping weight | 5 Kg |
| Wetted parts materials | Process connection, seal diaphragm : 0 = Stainless steel 316L/1.4404, stainless steel 316L/1.4404 |
| Non-wetted parts materials | 1 = Die-cast aluminum |
| General approval without ex approval | E00 = Worldwide (CE, RCM) except EAC, FM, CSA, KCC |
| 7MF 0 3 0 | SITRANS P320 |
| Manufacturer | Siemens |
| Nameplate labeling | B35 = Chinese (Pa) |
| Estimated lead time | 1 - 10 Working Days |
| Maximum measuring span | J = 1000 mbar (14.5 psi) |
| Measuring cell filling | 1 = Silicone oil |
| Local operation (display) | 2 = With display (cover with glass pane) |
MPN
7MF0300-1JE01-5AM2-Z A00+B35+E00
