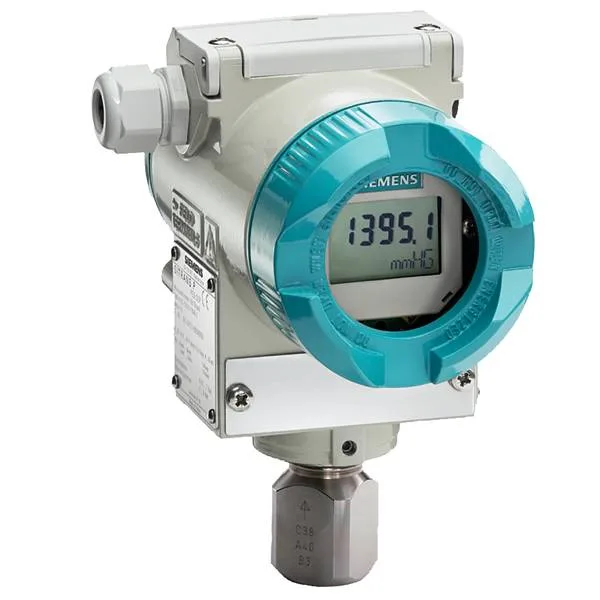

Siemens 7MF0300-1TE01-5AM2-Z A00+E01+H01+C11
MPN7MF0300-1TE01-5AM2-Z A00+E01+H01+C11
Pressure Transmitters for Gauge Pressure
$831.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Pressure Transmitters for Gauge Pressure |
| Type of protection | A = Without Ex |
| Pressure transmitters for gauge pressure (pressure series) | 7MF030 = SITRANS P320 |
| Enclosure | 5 = Dual chamber device |
| Protocol | 0 = HART, 4 ... 20 mA |
| Mounting bracket | H01 = Steel, galvanized |
| Cable glands included | A00 = Plastic |
| Electrical connections (cable entries) | M = 2 x ½-14 NPT |
| Weight | 5.8 Kg |
| Shipping weight | 7 Kg |
| Wetted parts materials | Process connection, seal diaphragm : 0 = Stainless steel 316L/1.4404, stainless steel 316L/1.4404 |
| Non-wetted parts materials | 1 = Die-cast aluminum |
All specifications+8 ▾
| Parameter | Value |
|---|---|
| General approval without ex approval | E01 = Worldwide (CE, RCM, EAC, FM, CSA, KCC) |
| Options | Z = Add "-Z" to article no. and specify order code |
| Certificates | C11 = Quality test certificate, 5-point factory calibration (IEC 60770-2) |
| Manufacturer | Siemens |
| Estimated lead time | 10 - 12 weeks. |
| Maximum measuring span | T = 63 bar (914 psi) |
| Measuring cell filling | 1 = Silicone oil |
| Local operation (display) | 2 = With display (cover with glass pane) |
MPN
7MF0300-1TE01-5AM2-Z A00+E01+H01+C11
