Siemens 7MF4033-1DA00-2AB7-Z Y01+Y21
MPN7MF4033-1DA00-2AB7-Z Y01+Y21

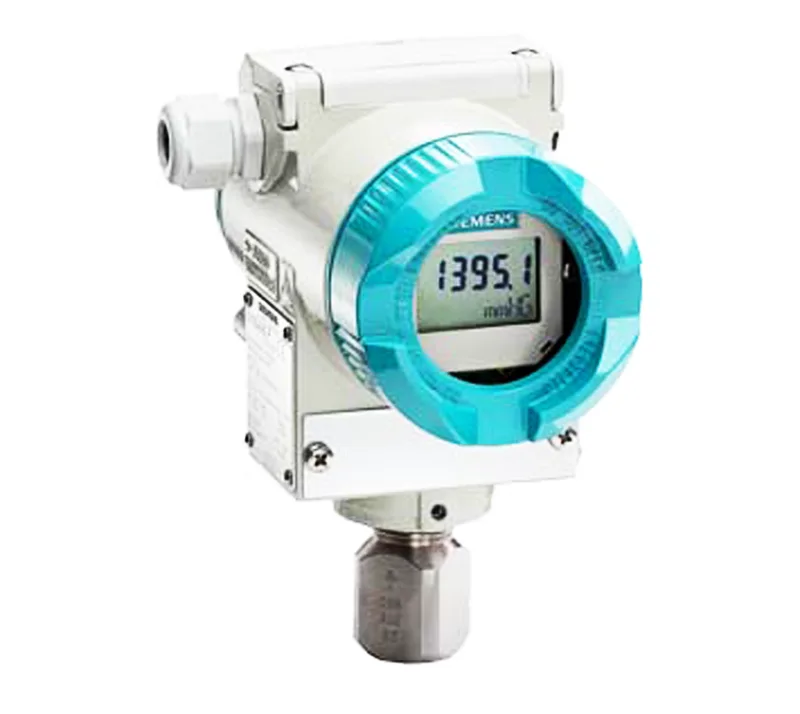

Pressure Transmitter for Gauge Pressure
$941.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Pressure Transmitter for Gauge Pressure |
| Terminal voltage on transmitter | 10.5 ... 45 V DC |
| IP rating | IP65 |
| Protocol | HART Version 5.x |
| HART communication | 230 ... 1100 O |
| Process connection | 0 = Connection shank G½B to EN 837-1 |
| Electrical connection (cable entry) | B = Screwed gland M20 x1 .5 |
| Measuring range to be set, specify in plane text | Y01 = ... to ... mbar, bar, psi, kPa, MPa |
| Shipping weight | 8 Kg |
| Wetted parts materials | A = Stainless steel (Seal diaphragm/Process connection) |
| Weight (without options) | 1.5 Kg |
| Non-wetted parts materials | 0 = Housing made of die-cast aluminium |
All specifications+9 ▾
| Parameter | Value |
|---|---|
| Model | 7MF4033 = Pressure transmitter for gauge pressure, SITRANS P DS III HART |
| Display | 7 = With customer specified digital indicator and setting, order code Y21 or Y22 required |
| Version | 2 = International version, English label inscriptions, documentation in 5 languages on CD |
| Manufacturer | Siemens |
| Measuring span | D = 0.16 To 16 bar g |
| Estimated lead time | 8 - 10 weeks. |
| Hazardous area rating | A = General purpose |
| Measuring cell filling (Measuring cell cleaning) | 1 = Silicone oil / normal |
| Setting of pressure indication in pressure units, specify in plain text | Y21 = mbar, psi, kPa, MPa... |
MPN
7MF4033-1DA00-2AB7-Z Y01+Y21
