Siemens 7MF4033-1FA10-1Ac6-Z Y01+C11
MPN7MF4033-1FA10-1Ac6-Z Y01+C11

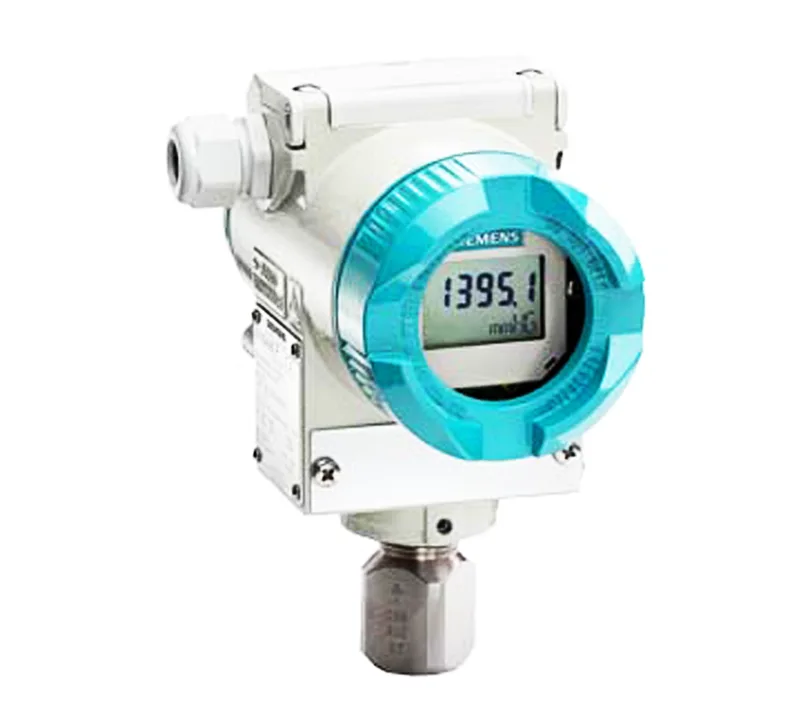

SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil
$883.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Shipping weight | 4 Kg |
| Standard lead time ex-works | 15 Day/Days |
| Compliance with the substance restrictions according to RoHS directive | Since: 20/07/17 |
| Notes | Sucessor:Substitute: 7MF03..-.....-.... : Please enter text for every Y option (using the Configurator). |
| Manufacturer | Siemens |
| Product group | 4770 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity unit | 1 Piece |
| PLM effective date | Product phase-out since: 01/02/19 |
| Packaging quantity | 1 |
| Estimated lead time | 4 - 6 Weeks |
| Product description | SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure Measuring cell filling silicone oil, normal cleaning 1.6 to 160 bar g (23.2 to 2320 psi g), Overload limit 250 bar, Diaphragm stainless steel, measuring cell stainless steel Female thread 1/2-14 NPT Die-cast aluminium housing Standard design None explosion protection Electric connection and cable inlet: cable gland 1/2-14 npt Housing cover with window Test certificate according to standard IEC 60770-2 Range (linear characteristic) specify in plain text:, Y01:... to ...mBar,kpa,mpa,... |
| Export control regulations | ECCN : EAR99 / AL : N |
MPN
7MF4033-1FA10-1Ac6-Z Y01+C11
