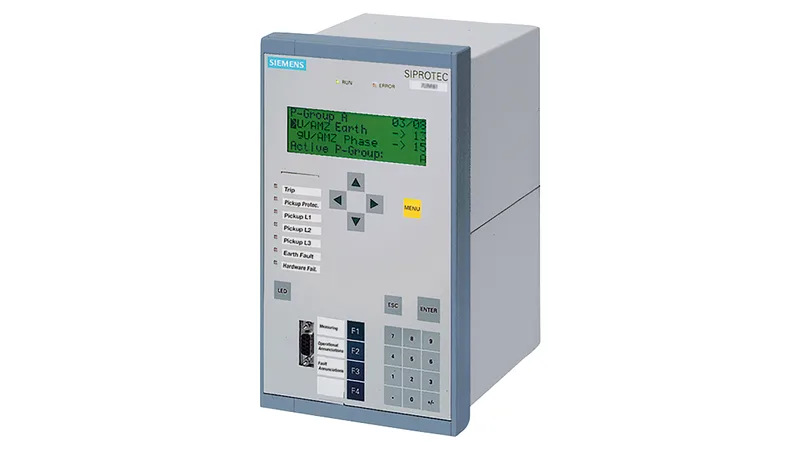

Siemens 7SJ6231-5EB02-1FG0/FF,,F
MPN7SJ6231-5EB02-1FG0/FF,,F
SIPROTEC 4 7SJ62 Multifunction Protection Relay
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Housing | 7XP20 |
| Designation | 0 = ARC,fault locator,synchro-check (without) |
| Product type | SIPROTEC 4 7SJ62 Multifunction Protection Relay |
| Unit version | E = For panel flush mounting, screw-type terminal (direct connection/ring-type cable lugs) |
| Housing, inputs,outputs | 3 = 1/3 19’’, 4xU, 4xI,8BI,8BO, 1 live status-contact |
| System interface (PortB) | 0 = No system interface |
| Service interface (Port c) | 2 = DIGSI/modem/RTD box, electrical RS485 |
| Measuring (faulty recording) | 1 = Fault recording |
| Measuring inputs(3xV/4xV,4xI) | 1 = Iph=1A, Ie=1A (min. = 0.05A) Position 15 only with A,C,E,G |
| Rated auxiliary voltage(power supply,indication voltage) | 5 = 110 to 250VDC, 115to230VAC,thres hold binary input 88VDC |
| Region-specific default settings (function versions and language settings) | B = Region World, 50/60 Hz, IEC/ANSI, language: English (GB), selectable |
MPN
7SJ6231-5EB02-1FG0/FF,,F
