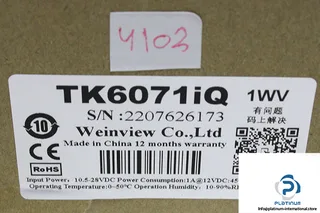

Weinview TK6071iQ
MPNTK6071iQ
7" Inch HMI Touch Screen Panel
$142.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Power in | 24±20%VDC |
| Interface | USB Client: USB 2.0 x 1 |
| Dimensions_text | 200.4 x 146.5 x 34 mm |
| Display_color_depth | 65536 types |
| Dram | 64 |
| Ram_mb | 128 |
| Monitor | 7”TFT |
| Power | 300mA@24 V |
| Flash ram | 128 |
| Backlight | LED |
| Cpu_model | 32Bit RISC CPU 400 MHz |
| Quake-Proof | 10 to 25 Hz(Direction X,Y,Z 2G 30 mins) |
All specifications+11 ▾
| Parameter | Value |
|---|---|
| Has_contrast | 500:1 |
| Product type | 7" Inch HMI Touch Screen Panel |
| Pressure-Proof | 500 VAC(per min) |
| Backlight_type | LED |
| Resistance | 500 |
| Touch precision | Active Area Length(X)±2%,Width(Y)±2% |
| Touch_panel_type | 4-wireless resistive |
| Brightness(Cd/M2) | 350 |
| Display_resolution | 800x480 |
| Power consumption | 300 mA @ 24 V |
| Backlight service life | >30,000 hours |
MPN
TK6071iQ
