What it is and what it does

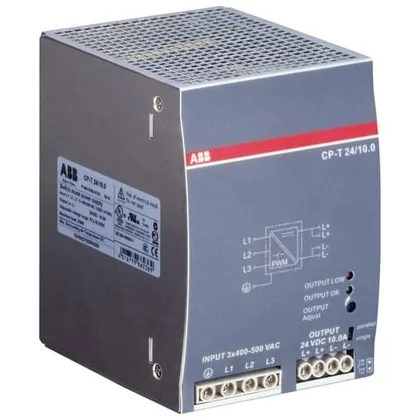

The ABB 1SVR427055R0000 CP-T 24/10.0 is a switch mode DIN rail power supply that converts a wide-range AC or DC input of 340-575V into a regulated 24V DC output at 10A, delivering 240W. This is the kind of supply you spec into a control cabinet to power PLCs, I/O racks, relays, and indicators — the 24V DC bus that runs the logic side of the machine.
What the ratings mean for fit
The 10A output at 24V DC is the headline number — it tells you the continuous current the supply can deliver to the DC bus. For a typical small panel with a PLC, a few I/O modules, and some indicator lamps, 10A leaves headroom for a modest expansion. The 240W rating is the same figure expressed as power (24V × 10A = 240W), so there is no separate derating curve to watch at this voltage. The wide input range (340-575V AC or DC) means it handles both 400V three-phase line-to-line and 480V industrial supplies without a tap change — useful when the same part number needs to work across plants with different incoming voltages.
Where it goes and how it mounts
This is a DIN rail-mount supply — snaps onto standard 35 mm DIN rail inside an enclosure. The switch-mode topology keeps the package compact compared to a linear supply of the same rating, which matters when you are filling a panel and every DIN slot counts. The input terminals accept the AC line or DC bus wires; the output terminals feed the 24V DC distribution. No forced cooling is typically needed at this power level, but leave a few millimeters of air gap around the body for natural convection.
