The ABB 1SVR427054R2000 is a CP-T series DIN rail power supply delivering 240 W at a nominal 48 VDC, rated for 5 A continuous output. The output is adjustable, which gives some headroom to compensate for voltage drop on long cable runs or to fine-tune the bus voltage for a specific load profile. Input accepts 340 to 575 VAC three-phase or 480 to 820 VDC, covering standard 400/480 VAC industrial mains and high-voltage DC links without a separate step-down transformer. The 89 mm width fits standard DIN-rail spacing, leaving room alongside contactors or terminal blocks.

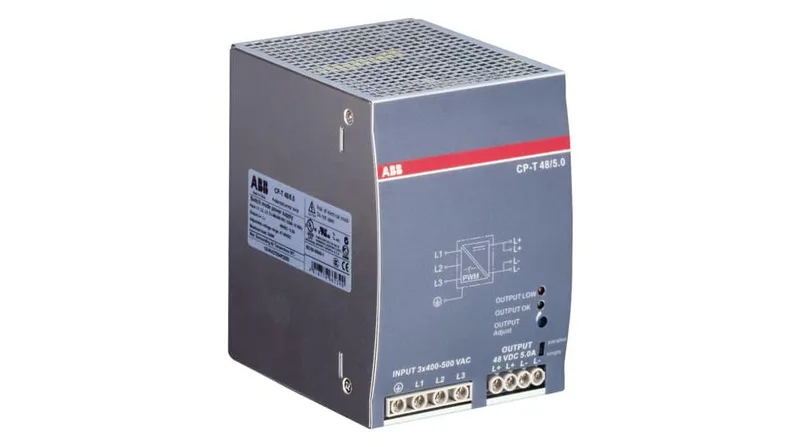

ABB CP-T 240W 48V 5A DIN Rail Power Supply, 1SVR427054R2000
MPN1SVR427054R2000
ABB CP-T series, DIN Rail Power Supply, 48 V, 5 A, 240 W, Adjustable output, IP20, Screw Terminal, 1SVR427054R2000.
$100.03Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CP-T |
| Parameter | Value |
|---|---|
| Width | 89 mm |
| Height | 131 mm |
| Depth | 119 mm |
| Parameter | Value |
|---|---|
| Outputs | 1 |
| Output signal | Adjustable |
| Rated power | 240 W |
| Output current 1 | 5 A |
| Output voltage 1 | 48 V |
| Termination type | Screw Terminal |
| IP rating | IP20 |
| Input voltage max. | 575 V |
| Input voltage min. | 340 V |
| Insulation voltage | 500 V |
| Input voltage nominal | 400 ... 500 VAC;480 ... 820 VDC |
| Output voltage nominal 1 | 48 V |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -40 °C |
Product details
Frequently asked questions
What are the key output ratings?
It provides a nominal 48 VDC output at 5 A, with a total rated power of 240 W. The output voltage is adjustable.
What input voltage range does it accept?
The input accepts 340 to 575 VAC three-phase or 480 to 820 VDC, with a nominal range of 400 to 500 VAC / 480 to 820 VDC.
What is the physical size and mounting?
Dimensions are 89 mm wide, 131 mm high, and 119 mm deep. It mounts on a standard DIN rail and uses screw terminals.
