What it is and where it fits

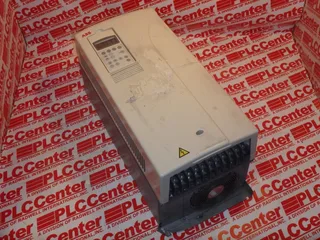

The ABB ACS800-01-0050-5+D150-P901 is an AC drive in the ACS800-01 wall-mount family, catalogued under Motors & Motor Controls / Drives / Motor Drives. The +D150 suffix is a factory-fitted option code, so the BOM line must be sourced against the full string, not the base frame code. At 31.75 kg it is a two-person lift into the cabinet and dictates the panel rail or backplate spec rather than the terminal layout.
Ratings and what governs fit
The drive is catalogued as the ACS800-01-0050-5+D150-P901 under ABB's ACS800-01 wall-mount family, with the +D150 suffix as a factory-fitted option code. Fit is governed by the motor-side continuous current at the -0050 frame rating, which must be checked against motor FLA on the nameplate.
Application class
ACS800-01 drives of this frame are applied to constant-torque loads — conveyors, mixers, extruders, and similar industrial process machines. For variable-torque fan and pump duty the frame is conservative; sizing down one -0xxx step is common when the load profile is squarely quadratic.
