What the suffix actually pins down

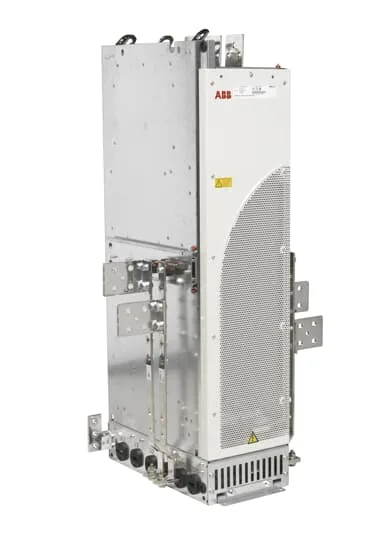

The ABB ACS800-04M-0260-7+E210+H354+H355+J400+L509+N651+P901+P909+Q967 is the base ACS800-04M industrial drive frame with the -0260-7 rating and a long factory option string — +E210, +H354, +H355, +J400, +L509, +N651, +P901, +P909, +Q967 — which is the part a buyer committing the BOM line is actually being asked to specify, not the bare 0260-7 base code. It is filed in the Motor Drives category under Drives and Motors & Motor Controls, which matches its functional class: a low-voltage industrial drive in the ACS800 family. For a panel builder that means the option list — not just the frame — has to be reproduced exactly on a replacement order; the suffix is what defines the I/O, braking, communication and firmware loadout that the original cabinet was wired and programmed around.
Cabinet handling — 45.36 kg on the lifting plan
The drive is listed at 45.36 kg, which puts it at the upper end of what a single technician should mount onto a backplate or into a deep cubicle without a second pair of hands and a planned lift path. Concretely, the cabinet backplate or swing-frame has to be rated for that mass at the mounting footprint, and the MRO planner should expect the spare to arrive on a pallet rather than in a courier box — handling instructions, not paperwork, are what that weight governs.
Second-source posture against the ACS880 line
The ACS880-01-156A-5 sits in the same Motor Drives line as a cross-shop candidate; the on-record delta is 55.00 kg versus 45.36 kg, which shifts the mounting load and the lifting plan. Drop-in compatibility with a cabinet originally specified around the ACS880-01-156A-5 cannot be asserted from the data on this page — frame, depth, cooling path and option-key mapping are not recorded against the ACS800-04M-0260-7 here, so a panel that was built around the ACS880 must be re-validated, not assumed to accept the ACS800-04M as a like-for-like spare.
Lifecycle, compliance and sourcing close
No RoHS, REACH, UL or IEC certification entries are recorded against this order code; customer-audit sign-off has to be backed by the nameplate and the declaration pack shipped with the unit. Buying posture: quote to the full +E210/+H354/+H355/+J400/+L509/+N651/+P901/+P909/+Q967 option string against an RFQ; treat the 45.36 kg figure as a handling-and-mounting constraint for the spare, and treat any ACS880 swap as a panel re-validation rather than a like-for-like exchange.
