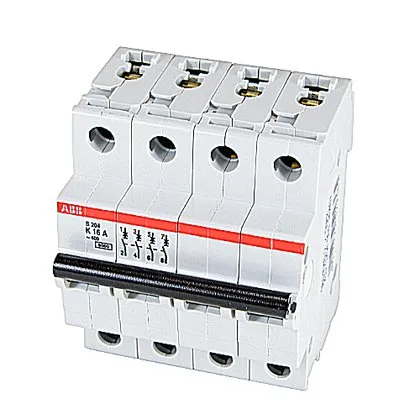

ABB S204-K16 — 4-Pole MCB (DIN Rail)

ABB S204-K16 MCB 4P K 16A 480Y/277, 10 kA

MPNS204-K16

ABB S204-K16 miniature circuit breaker, 4-pole, Trip Curve K, 16 A, 277 VAC, 10 kA interrupting rating, DIN rail mount.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S204-K16 — Specifications
ParameterValue
Amps16
TypeTrip Curve K
Poles4
MountingDIN Rail
Volts AC277
Breaking capacity10 kA

Product details

The K curve means it's designed for motor and transformer circuits where inrush currents can briefly exceed the nominal rating — it tolerates a short-duration surge (typically 8–12× the rated current) before tripping, so it won't nuisance-trip on a motor start or transformer energization. Four poles let you switch all three phases plus neutral in a single unit, which keeps the panel layout clean.

The 277 VAC phase-to-neutral rating fits 480Y/277 V wye systems common in North American commercial and light industrial panels. Use it in a motor control center feeder or a transformer primary protection circuit where the K-curve selectivity matters. Pair it with a contactor downstream for motor starting; the MCB handles the short-circuit protection, the contactor handles the switching duty.

Frequently asked questions

Where can I buy the S204-K16 and get a price?

The S204-K16 is sourced and quoted to order against an RFQ through independent distribution. Submit a request for your target quantity and we'll confirm current pricing and availability at quote time.

What is the S204-K16's interrupting rating?

The S204-K16 has a 10 kA interrupting rating at 277 VAC, which means it can safely clear a fault current up to 10,000 amps without failing.

What does Trip Curve K mean on the S204-K16?

Trip Curve K means the breaker tolerates a short-duration inrush of 8–12× the 16 A rated current before tripping — designed for motor and transformer loads that draw a brief startup surge.

MPN
S204-K16
