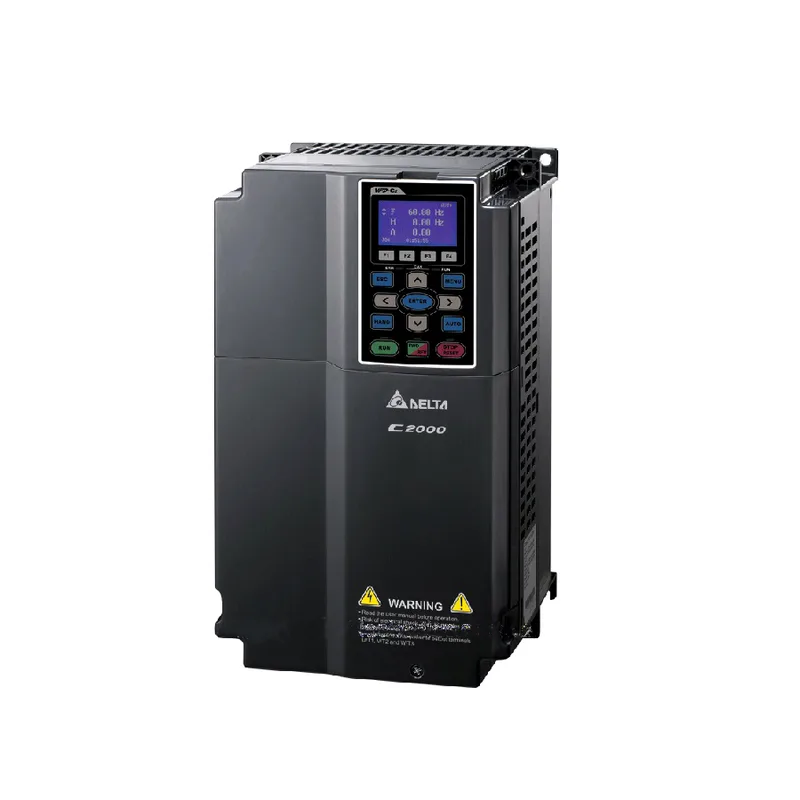

Delta VFD750C43A-21

Delta VFD750C43A-21 C2000 VFD, 75 kW, 400 V class

MPN VFD750C43A-21

Delta C2000 series variable frequency drive VFD750C43A-21, 75 kW normal duty / 55 kW heavy duty, 400 V class, Frame D, 97.8 % efficient.

$4,697.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

VFD750C43A-21 specifications
ParameterValue
Product typeControl Drive C2000 Series
Weight38.5 Kg
Frame sizeD

Product details

What the drive covers on the motor shaft

The Delta VFD750C43A-21 is a C2000-series AC drive rated for a 75 kW motor in normal duty and 55 kW in heavy duty, equivalent to 100 hp and 75 hp respectively, so it spans the line between standard constant-torque loads (pumps, fans, conveyors) and the higher inrush that constant-torque machinery draws at start. It runs on a 400 V class supply — 323 to 528 VAC operating range — with 47 to 63 Hz input tolerance, so it rides through weak feeds and tolerates generator-fed panels without nuisance trips.

Current, capacity, and efficiency at the output

The drive delivers 150 A normal / 143 A heavy rated output current at 120 kVA normal / 114 kVA heavy, which sets the upstream breaker and cable sizing rather than the motor nameplate alone. Efficiency sits at 97.8 %, so above a few kW shaft output the cooling load on the cabinet is dominated by the drive's own losses, not the motor — a heat-exchanger or forced-air panel design should be planned against the 2.2 % loss budget for continuous duty. Input current is rated 157 A normal / 149 A heavy, which is the figure the panel builder uses to size the feeder breaker and the line reactor, since it includes the rectifier inrush component the motor-side figure does not.

Sourcing posture and lead-time expectation

Lifecycle is recorded as current, with no successor on the record; typical lead time runs 1 to 10 working days through the distribution channel, so a production BOM line can be closed against a confirmed quote without carrying a safety stock buffer on the drive itself.

MPN
VFD750C43A-21
