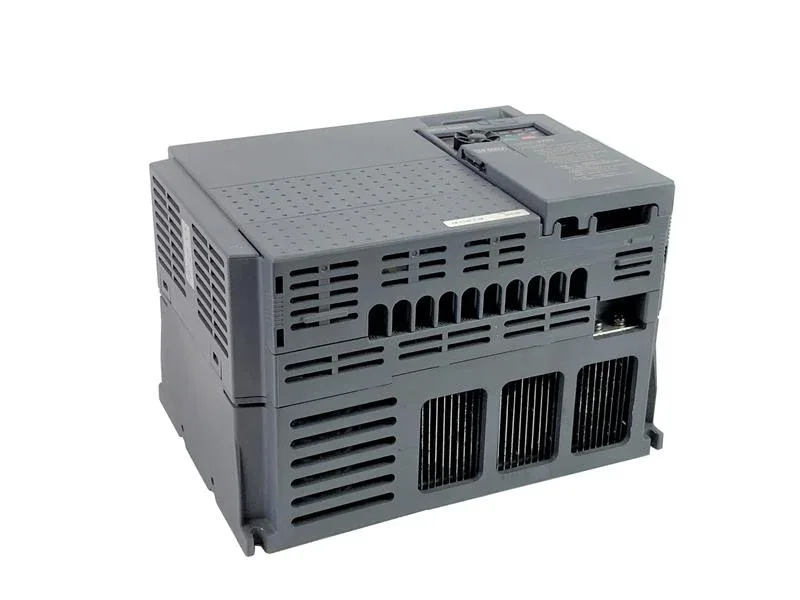

| Frequency accuracy analog input | Within ± 0.5% of maximum output frequency (25 ° C ± 10 ° C) |
|---|
| Frequency tolerance fluctuation | ± 5% |
|---|
| Frequency setting resolution analog input | 0.06 Hz / 60 Hz (terminal 2, 4: 0 to 10 V / 10 bit), 0.12 Hz / 60 Hz (terminal 2, 4: 0 to 5 V / 9 bit), 0.06 Hz / 60 Hz (terminal 4: 4 to 20 mA / 10 bit) |
|---|
| Frequency setting signal analog input terminal number | 2 points |
|---|
| Protocol | RS-485, CC-Link, LONWorks, DeviceNet, PROFIBUS-DPV0, Modbus RTU |
|---|
| Input terminal selectable signal | Multistage speed selection, remote setting, contact selection, second function selection, terminal 4 input selection, JOG operation selection, PID control valid terminal, brake release complete signal, external thermal input, PU-external operation switching, V / F switching, Selection from output stop, start self-hold selection, forward rotation, reverse rotation command, inverter reset, PU-NET operation switching, external-NET operation switching, command authority switching, inverter operation permission signal, PU operation external interlock |
|---|
| Output terminal selectable signal | During inverter operation, frequency arrival, overload alarm, output frequency detection, regenerative brake pre-alarm, electronic thermal pre-alarm, inverter operation preparation completed, output current detection, zero current detection, PID lower limit limit, PID upper limit limit, PID forward rotation reverse Output, brake release request, fan failure, FIN overheat pre-alarm, power failure decelerating, PID control in operation, retrying, life alarm, average current value monitor, remote output, light failure output, abnormal output, abnormal output 3, maintenance timer Select from alarm |
|---|
| Analog input terminal specification | Terminal 2: 0 to 10 V, 0 to 5 V selectable Terminal 4: 0 to 10 V, 0 to 5 V, 4 to 20 mA selectable |
|---|
| Output terminal (relay output) points | 1point |
|---|
| Number of output terminals for indicator | 1 point |
|---|
| Display terminal output terminal specifications | FM: up to 2.4kHz |
|---|
| Input signal number of terminals (contact input) | 7 points |
|---|
| Display terminal output terminal selectable signal | Output frequency, motor current (steady), output voltage, frequency setting value, motor torque, converter output voltage, regenerative brake usage rate, electronic thermal load factor, output current peak value, converter output voltage peak value, reference voltage output, motor load Select from rate, PID target value, PID measured value, output power. Pulse train output |
|---|
| Output terminal selectable signal (when option is installed) | Output the same signal as the main unit |
|---|
| Output signal number of output terminals (open collector output) | 2 points |
|---|
| Environment ambient temperature | -10 ° C to + 50 ° C (without freezing) (-10 ° C to + 40 ° C in the case of fully closed structural specification) |
|---|
| Ambient humidity | 90% RH or less (without condensation) |
|---|
| Elevation and vibration | Less than 1000m above sea level 5.9m / s 2 or less |
|---|
| Shipping weight | 5.6 Kg |
|---|
| Actual dimension standard packing box HXWXD | 25x31x36 |
|---|
| Atmosphere | Indoor (corrosion gas, flammable gas, oil mist, no dust) |
|---|
| DC braking | Operating frequency (0 to 120 Hz), operating time (0 to 10 s), operating voltage (0 to 30%) variable |
|---|
| Start signal | Forward / reverse individual, start signal self-holding input (3 wire input) selectable |
|---|
| Torque boost | Manual torque boost |
|---|
| Digital input | Input by operation panel, parameter unit |
|---|
| Cooling method | Forced wind cold |
|---|
| Rough mass | 3.2 |
|---|
| Starting torque | 200% or more (at 0.5 Hz) ... When advanced flux vector control is set (3.7 K or less) |
|---|
| Abnormal content | Display the contents of abnormality when the protection function is activated, and store 8 times of abnormality contents (output voltage, current, frequency, integrated energizing time just before the protection function is activated) |
|---|
| Torque limit level | 0 to 200% |
|---|
| Estimated lead time | Usually ships in 1 - 10 working days. |
|---|
| Storage temperature | -20 ° C to + 65 ° C |
|---|
| Output rated capacity | 13 |
|---|
| Protection and alarm function | Over current during acceleration, Over current during constant speed, Over current during deceleration, Over voltage during acceleration, Over voltage during constant speed, Over voltage during deceleration, Inverter protection thermal operation, Motor protection thermal operation, Fin overheat, Input phase failure, Start-up Output side ground fault overcurrent, output short circuit, output phase failure, external thermal operation, option error, parameter error, PU error, retry count over, CPU error, brake transistor error, rush resistance overheat, communication error, analog input error , USB communication error, brake sequence error 4 to 7 Fan failure, over current stall prevention, over voltage stall prevention, PU stop, parameter write error, regenerative brake pre alarm, electronic thermal pre alarm, maintenance output, under voltage |
|---|
| Protective structure (JEM 1030) | Closed type (IP20), the fully closed series is IP40. |
|---|
| Stall prevention operation level | Operating current level can be set (0 to 200% variable), can be selected |
|---|
| Control specification control method | Soft-PWM control / high carrier frequency PWM control (V / F control, advanced magnetic flux vector control, general-purpose magnetic flux vector control, optimal excitation control can be selected) |
|---|
| Display control panel driving condition | Output frequency, motor current (steady), output voltage, frequency setting value, integrated energizing time, actual operation time, motor torque, converter output voltage, regenerative brake duty factor, electronic thermal load factor, output current peak value, converter output voltage peak Motor load factor, PID target value, PID measured value, PID deviation, inverter input / output terminal monitor, input / output terminal option monitor, output power, integrated power, motor thermal load factor, inverter thermal load factor selectable |
|---|
| Acceleration (deceleration time setting) | 0.01 to 360s, 0.1 to 3600s (acceleration / deceleration can be set individually), linear or S-curve acceleration / deceleration mode selectable |
|---|
| Operation specification driving function | Upper / lower limit frequency setting, frequency jump operation, external thermal input selection, instantaneous power failure restart operation, forward / reverse rotation prevention, remote setting, brake sequence, second function, multistage speed operation, stop control, droop control, regeneration avoidance, Slip compensation, operation mode selection, off-line auto tuning function, PID control, computer link operation (RS-485) |
|---|
