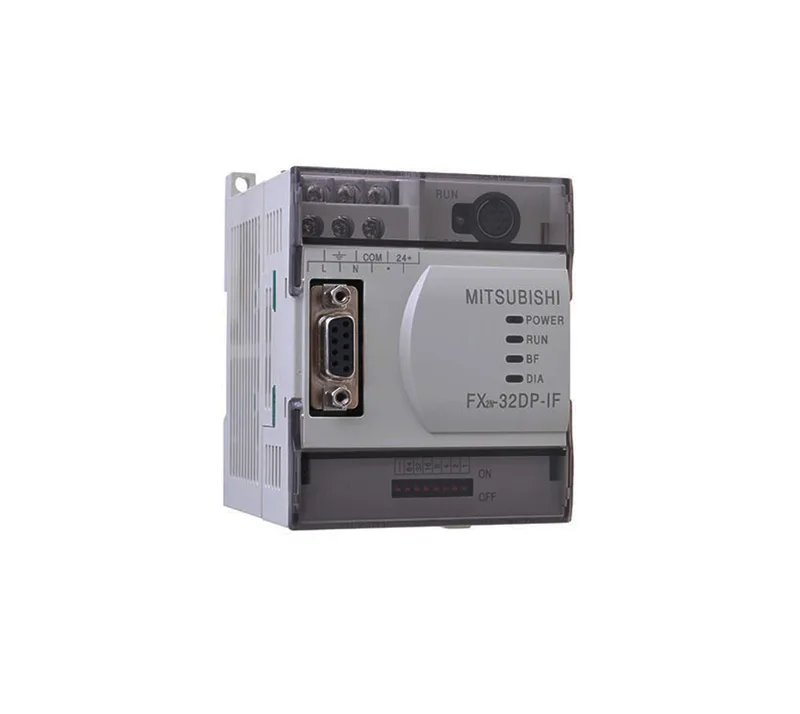

Mitsubishi Electric FX2N-32DP-IF

Mitsubishi FX2N-32DP-IF, Profibus-DP IF, 256 I/O

MPN FX2N-32DP-IF
End of Life

Mitsubishi FX2N-32DP-IF Profibus-DP interface unit, 100-240 V AC supply, 256 controllable I/O points, 200-byte bus cycle, EOL/hot lifecycle.

$417.00 – $571.50 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FX2N-32DP-IF specifications
ParameterValue
Product typeProfibus-DP Interface Unit
Temp storage max70 °C
Temp storage min-20 °C
Temp operating max55 °C
Temp operating min0 °C

Product details

The Mitsubishi FX2N-32DP-IF is a Profibus-DP interface unit in the FX2N family, designed to sit between an FX2N PLC base and a Profibus-DP master as a slave node rather than as a stand-alone controller. The maximum number of controllable I/O points is 256, so on paper the unit can carry a full FX2N expansion rack of mixed digital and analog points through one Profibus node — though the bus-cycle payload is the harder ceiling in real designs.

Power, environment, and panel-side numbers

Power consumption is 30 VA, which is the figure that goes into cabinet heat-load calculations rather than a backplane budget on the PLC side. Operating temperature is 0 to 55 °C (32 to 131 °F) with 35 to 85% RH non-condensing; storage extends down to -20 °C and up to 70 °C (-4 to 158 °F) at 35 to 90% RH — the storage range governs how a spare sits on the shelf between callouts. Grounding resistance is 100 Ω or less, and insulation resistance is 5 MΩ minimum at 500 V DC between all terminals and ground — both are field-check figures the installer verifies at commissioning before powering the bus.

Footprint and handling

Footprint is 10.5 cm H x 8.7 cm W x 7.5 cm D, which sets the DIN-rail space the interface takes next to the FX2N base in the cabinet layout.

MPN
FX2N-32DP-IF
