Mitsubishi Electric FX2N-32ET — PLCs (Programmable Logic Controllers)

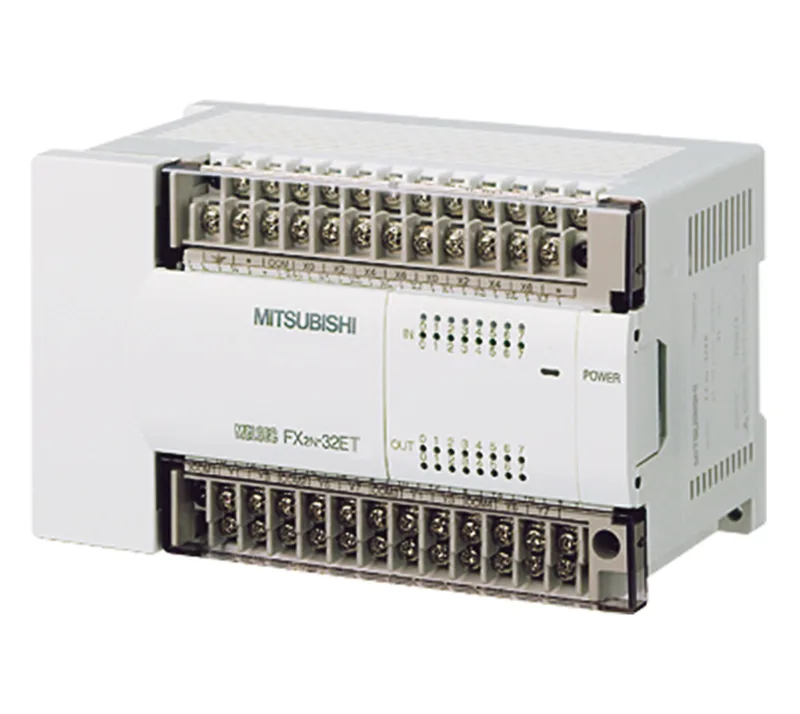

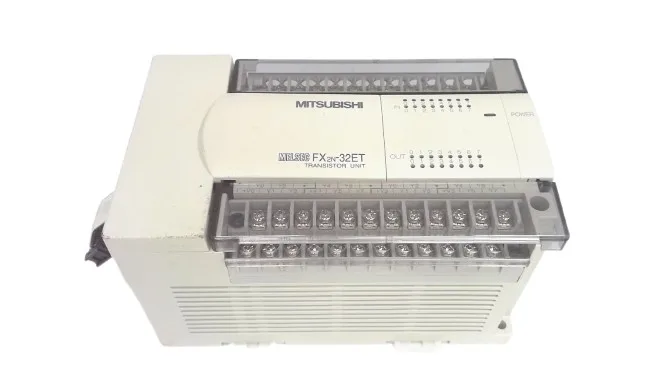

Mitsubishi FX2N-32ET PLC I/O Module, 16/16 Transistor

MPNFX2N-32ET
End of Life

Mitsubishi FX2N-32ET PLC I/O module, 16-point sink input, 16-point transistor sink output, 30 W, 0.65 kg.

$210.00Ref. price · indicative, final on quote
Mitsubishi Electric FX2N-32ET datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX2N-32ET key specifications
ParameterValue
Output type (format)Transistor / sink output
ON voltage1.5V or less
VoltageAC 100 V to 240 V
Withstand voltageBetween the power supply terminal (AC power supply) and the earth terminal: AC 1500 V for 1 minute 24 VDC Service power supply and between the input terminal (24 VDC) and the earth terminal: 500 VAC for 1 minute Between the output terminal (transistor)
Input signal voltageDC 24 V ± 10%
Voltage tolerance rangeAC 85V ~ 264V
Inrush currentAC 100 V: maximum 40 A 5 ms or less AC 200 V: maximum 60 A 5 ms or less
Input signal current5 mA / 24 VDC
Input ON sensitivity current3.5 mA or more
Open-circuit leakage current0.1 mA or less / DC 30 V
Input OFF sensitivity current1.5 mA or less
Power consumption30 W

All specifications

FX2N-32ET additional specifications
ParameterValue
Power supply fuse250 V 3.15 A (3A)
External power supplyDC 5V to 30V
24 VDC service power supply24 VDC 250 mA or less When input / output expansion block is connected, 24 VDC service power is consumed.
Frequency57 to 150 Hz : Acceleration: 9.8 m / s 2 X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Rated frequency50/60 Hz
Direct installation frequency10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Anti-vibration when DIN rail is installed frequency10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Input connection shapeRemovable terminal block (M3 screw)
Output connection shapeRemovable terminal block (M3 screw)
Input response timeAbout 10 ms
Response time OFF → ON0.2 ms or less / 200 mA (24 VDC)
Operating temperature0 to 55 ° C. ... Operating -25 to 75 ° C. ..... Save
Use altitudeCan not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down.
Relative humidity5 to 95% RH (noncondensing).... in operation
Shipping weight1.7 Kg
Mass0.65 Kg
GroundClass D grounding (grounding resistance: 100 Ω or less)Grounding should be dedicated ground or common ground.
ON → OFF0.2 ms or less / 200 mA (24 VDC)
Input formatsink
Inductive load12 W / DC 24 V
Noise immunityNoise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si
Use atmosphereThere is no corrosive property, flammable gas, conductive dust (dust) is not serious
Input impedance4.3 kΩ
Impact resistance147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2
Circuit insulationPhotocoupler insulation
Estimated lead timeUsually ships in 1 - 10 working days.
Input signal formatNo-voltage contact input or NPN open collector transistor
Application sequencerFX1N, FX3G, FX2N, FX3U
Insulation resistanceBetween each terminal and earth terminal: 500 MV DC 500 MΩ or more with an insulation resistance meter
Number of input points16 points
Input operation displayLED on the panel when input is ON
Number of output points16 points
Input circuit insulationPhotocoupler insulation
Maximum load resistive loadThe total load current per 0.5 A / point common should be as follows. . Output 8 points / common: 1.6 A or less
Output operation indicationLED on the panel when driving the photo coupler

Product details

Grounding and wiring notes

Class D grounding with 100 Ω or less is non-negotiable — the module lists it as a requirement. Dedicated ground or common-ground with the rest of the PLC system. Inputs are sink (NPN), no-voltage contact or open collector, 5 mA at 24 VDC ±10%. Outputs are transistor sink, 200 mA per point, 0.2 ms response. Use a M3 screw terminal on removable blocks. Fuse the power supply side with a 250 V 3.15 A rated fuse. Operating temp 0–55 °C, so keep it out of direct sunlight and away from heaters.
