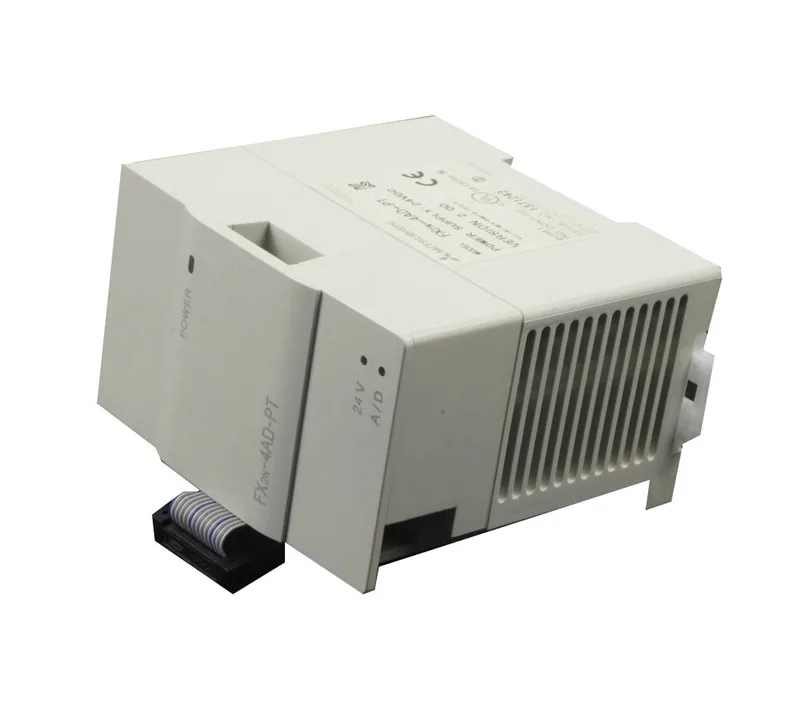

Mitsubishi FX2N-4AD-PT 4-Ch Pt100 RTD Input Module, ±1% accuracy, EOL.
Mitsubishi FX2N-4AD-PT 4-Ch Pt100 RTD Input, EOL
MPNFX2N-4AD-PT
End of Life
Mitsubishi FX2N-4AD-PT 4-Ch Pt100 RTD Input Module, ±1% accuracy, EOL.
$108.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Channels | 4 CH Input |
| Accuracy | ±1% of full scale |
| Resolution | 0.2 to 0.3°C / 0.36 to 0.54°F |
| Input types | 3-wire platinum resistance thermometer sensor(s) Pt100 |
| Product type | Input Block I/O Module |
| Applicable PLC | FX1N / FX2N / FX2NC / FX3U |
| Certifications | CE, UL/cUL |
| Digital output | -1000 to +6000 (°C) / -1480 to +11120 (°F) |
| Conversion time | 15ms / 1 channel |
| Compensated range | -100 to +600°C / -148 to +1112°F |
| No. of occupied points | 8 I/O points |
| Dimensions (HxWxD), approx | 9cm x 5.5cm x 8.7cm |
Product details
Frequently asked questions
What are the key ratings of FX2N-4AD-PT?
4-channel input for 3-wire Pt100 RTDs. Accuracy ±1% of full scale. Digital output range -1000 to +6000. Compensated range -100 to +600°C. Resolution 0.2 to 0.3°C. Conversion time 15 ms per channel. Occupies 8 I/O points. CE, UL/cUL certified.
What certifications does FX2N-4AD-PT carry?
CE and UL/cUL listed.
MPN
FX2N-4AD-PT
