Mitsubishi Electric FX3U-16MT/ESS

Mitsubishi FX3U-16MT/ESS PLC, 16 I/O, transistor source, AC

MPN FX3U-16MT/ESS

Mitsubishi MELSEC-F FX3U base unit, 16-point I/O, 8 transistor source outputs, 100-240 VAC supply, expandable to 384 points.

$247.00 – $398.91 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FX3U-16MT/ESS specifications
ParameterValue
SeriesMELSEC-F SERIES
Output signalTRANSISTOR
Product typeFX3U
IP ratingIP10
Weight0.6 kg

Product details

What you're looking at

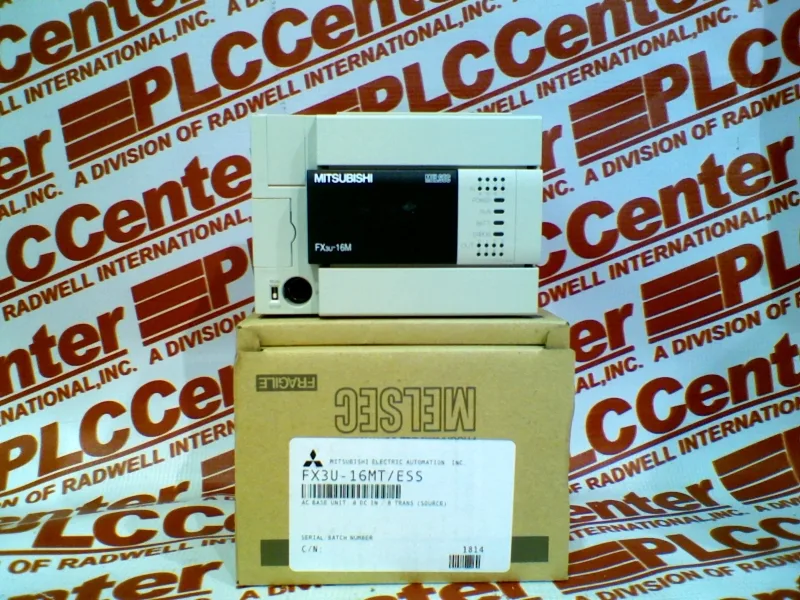

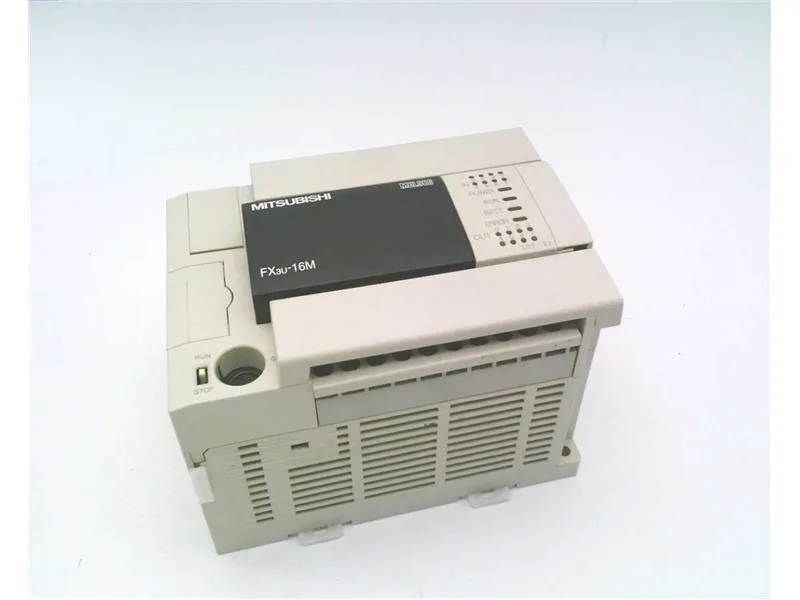

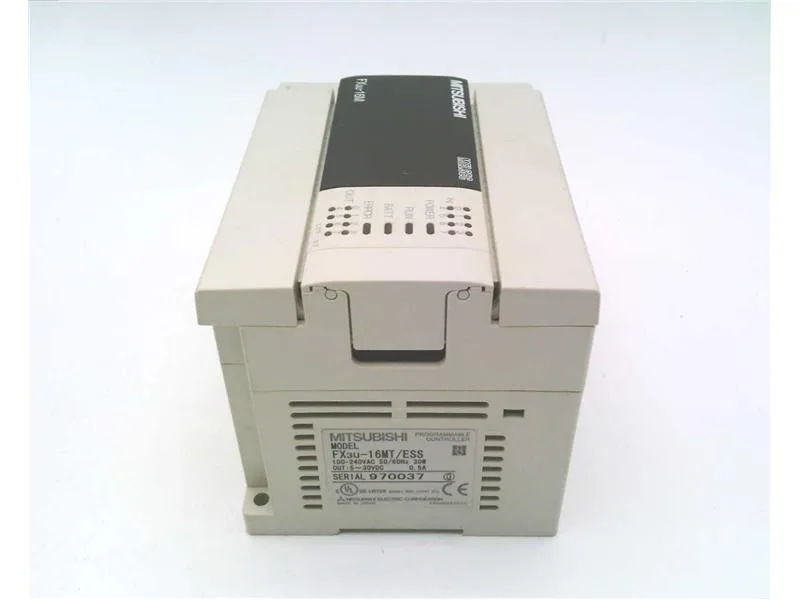

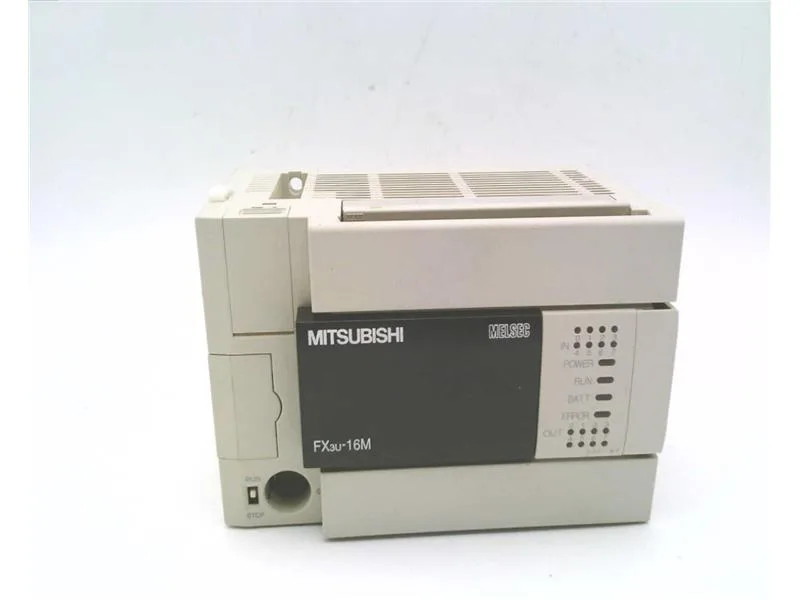

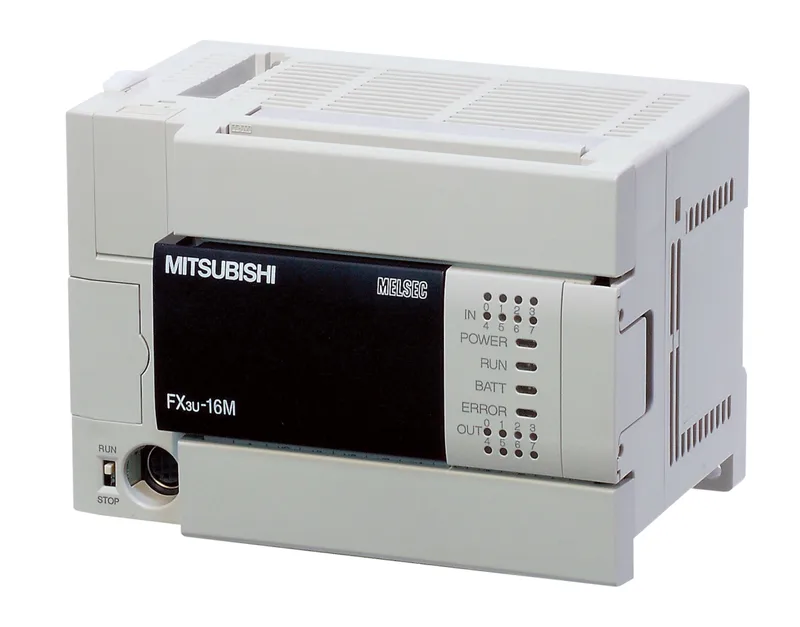

The FX3U-16MT/ESS is a Mitsubishi MELSEC-F base unit with 8 DC 24 V inputs and 8 transistor source outputs, running on 100-240 VAC. It's part of the FX3U family, a mature platform that's been around long enough to have good documentation and a steady support base. The program memory is 64k steps in RAM, with a buffer battery to hold it, and the unit draws 30 W at the terminals. Cycle times are 65 ns for LD and 642 ns for MOV. Local I/O capacity is 256 points; total with remote is 384 points.

The FX5 series (like the FX5-32ET/ES or FX5U-64MT/DS) is the current generation, but don't expect a straight swap. The FX5-32ET/ES has 16 inputs and 16 transistor sink outputs, while the FX3U-16MT/ESS has only 8 of each and uses source outputs. The FX5U-64MT/DS is a different form factor — connector-type terminals versus screw terminals on the FX3U. The mounting footprint and backplane are not compatible, so swapping would mean a full rewire and possibly a new panel layout.

Wiring and mounting notes

The unit is IP10 — open style, requires cabinet installation. AC supply range is 100-240 V; it has 8 transistor source outputs. The RS-422 port is on board for programming or connecting to older HMI units. USB is optional — if you need it, you'll order the option module. The expansion bus lets you add analog, temperature, or additional I/O modules up to the 256-point local limit. The buffer battery keeps the RAM program safe during power downs, but if you leave it off for months, plan to reload the program.

MPN
FX3U-16MT/ESS
