Mitsubishi Electric FX3U-80MR/DS — PLCs (Programmable Logic Controllers)

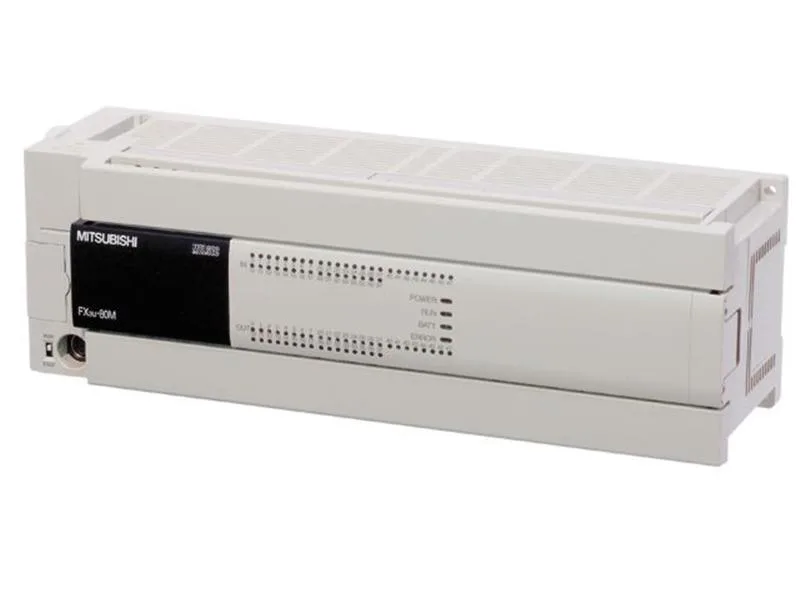

Mitsubishi FX3U-80MR/DS PLC, 80 I/O Relay, 24VDC

MPNFX3U-80MR/DS

Mitsubishi FX3U Series, FX3U-80MR/DS Programmable Controller, 40 inputs / 40 relay outputs, 24 VDC, 45 W, 1.2 kg.

$626.00Ref. price · indicative, final on quote
Mitsubishi Electric FX3U-80MR/DS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX3U-80MR/DS — Mechanical
ParameterValue
Weight1.2kg
FX3U-80MR/DS — Other specifications
ParameterValue
Output signalRelay
Power supply24 VDC (+20% / -30 %)
Product typeFX3U Programmable Controller
Noise durability1000 Vpp with noise generator; 1 µs at 30 – 100 Hz
Integrated inputs40
Integrated outputs40
Operating temperature0 – 55°C (storage temperature: -25 – +75°C)
Power consumption45
Integrated inputs (Outputs)80
Dimensions (WxHxD), approx28.5cm x 9cm x 8.6cm

Product details

Part identification and key ratings

The Mitsubishi FX3U-80MR/DS is a programmable controller with 40 digital inputs and 40 relay outputs, giving 80 I/O points on a single base unit. Power supply is 24 VDC with a tolerance of +20%/-30%, and the unit draws 45 W. Ambient operating range is 0–55 °C.

Comparison with FX2N-80MR-DS

The FX2N-80MR-DS predecessor has the same 40/40 I/O split and relay outputs. Power consumption is 40 W versus 45 W on the FX3U; dimensions are 28.5 × 9 × 8.7 cm versus 28.5 × 9 × 8.6 cm.

Installation notes

Noise immunity is rated at 1000 Vpp with a 1 µs pulse at 30–100 Hz. Maintain good grounding practice and separate power and signal wiring per Mitsubishi guidelines. Relay outputs are rated for general-purpose switching; verify contact ratings for your load.

MPN
FX3U-80MR/DS
