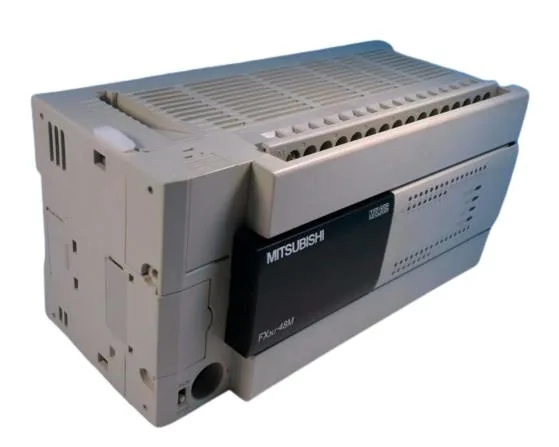

FX3U-48MT/DS

MPNFX3U-48MT/DS

FX 3 U Series FX 3 U - 48 MT / DS

$540.00Ref. price · indicative, final on quote

Request quote

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsListing updated Jun 2026

Specifications

FX3U-48MT/DS key specifications
Parameter	Value
1	T256 to T511 256 points (0.001 to 32.767 seconds)
10	T200 to T245 46 points (0.01 to 327.67 seconds)
Output type (format)	Transistor / sink output
1 ms integration type	T246 to T249 4 points (0.001 to 32.767 seconds) Battery backup fixed area. Area property change is impossible.
100 ms integration type	T250 to T255 6 points (0.1 to 3,276.7 seconds) Battery backup fixed area. Area property change is impossible.
ON voltage	1.5V or less
Voltage	DC 24V
Withstand voltage	When performing the withstand voltage test, make the voltage between each terminal and the ground terminal of the basic unit as follows. Between power supply terminal (DC power supply) and earth terminal: 500 VAC for 1 minute Between output terminal (transistor) and ground terminal: 500 VAC for 1 minute
Input signal voltage	DC 16.8 to 28.8 V
Voltage tolerance range	DC 16.8 to 28.8 V When the power supply voltage is DC 16.8 to 19.2 V, the number of connectable devices can be reduced.
Inrush current	Maximum 35 A less than 0.5 ms / 24 VDC
Open-circuit leakage current	0.1 mA or less / DC 30 V

All specifications+98 ▾

FX3U-48MT/DS additional specifications
Parameter	Value
Input OFF sensitivity current	1.5 mA or less
Input signal current x000 to x007	X000 ~ X005: 6mA / DC24V X006, X007: 7mA / DC24V
Input ON sensitivity current x000 to x007	X000 to X005: 3.5 mA or more X006, X007: 4.5 mA or more
Power consumption	It is the value when maximum is consumed in the I / O expansion block or special expansion unit / block added to the 35 W basic unit.
Power supply fuse	250 V 5 A
External power supply	DC 5 to 30 V
DC 5 v internal power supply	500 mA or less Can not be used externally. This is the power supply capacity to be supplied to the I / O expansion block, special expansion block, special adapter and function expansion board.
Allowable momentary power outage time	Operation continues with an instantaneous blackout of 5 ms or less.
Frequency	57 to 150 Hz : Acceleration: 9.8 m / s 2 X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Maximum frequency	100 kHz
Direct installation frequency	10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Anti-vibration when DIN rail is installed frequency	10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
1 phase 1 count input	[C235 to C240] Up to 6 points: Up to 100 kHz High Speed ??Comparison When using SET / RESET: 40 kHz High Speed ??Band Comparison When using HSZ: 40 - (Instruction Usage Count) [C244 (OP), C245 (OP)] Maximum 2 Points: 10 kHz High Speed ??Comparison When using SET / RESET: 10 kHz High Speed ??Band Comparison When using HSZ: 40 - (Instruction Used Count) [C241 ~ C245] Up to 3 Points: Up to 40 kHz High Speed ??Comparison When using SET / RESET: 40 kHz High Speed ??Band Comparison When Using HSZ : 40 - (number of times of instruction use) High speed comparison When using SET / RESET, 80 kHz is the maximum for the sum of the frequencies processed by the sequencer (2 phase 4 quadruple counter is combined with 4 times the input frequency). High-Speed ??Band Comparison When using the HSZ, the frequency obtained by "the number of times of use of 80 kHz - 1.5 X HSZ instruction" is the maximum as the sum of the frequencies processed by the sequencer (2 - phase quadruple counter is 4 times the input frequency).
1 phase 2 count input	[C246, C248 (OP)] Up to 2 points: Up to 100 kHz High Speed ??Comparison When using SET / RESET: 40 kHz High Speed ??Band Comparison When using HSZ: 40 - (Instruction Used Count) [C247 ~ C250] Up to 2 Points: Up to 40 kHz High Speed ??Comparison When using SET / RESET: 40 kHz High Speed ??Band Comparison When using HSZ: 40 - (Instruction Used Count) High Speed ??Comparison Total frequency processed by the sequencer when using SET / RESET (2 phase 4 multiplier counter adds 4 times the input frequency ) Is the maximum at 80 kHz. High-Speed ??Band Comparison When using the HSZ, the frequency obtained by "the number of times of use of 80 kHz - 1.5 X HSZ instruction" is the maximum as the sum of the frequencies processed by the sequencer (2 - phase quadruple counter is 4 times the input frequency).
2 phase 2 count input	[C251, C253] Up to 2 points: Up to 50 kHz (1 multiplication, 4 multiplication) High speed comparison When using SET / RESET (1 multiplication): 40 kHz High speed comparison When using SET / RESET (4 multiplication): 10 kHz High speed band comparison When HSZ is used (1x): 40- (instruction number of uses) fast bandwidth comparing HSZ use (quadruple) :( 40- instruction usage count) ÷ 4 [C252, C253 (OP), C254, C255] up to two points: highest 40kHz fast compared SET / RESET is used (1x): 40 kHz High-speed comparison SET / RESET is used (multiplied by 4): 10 kHz High-speed bandwidth comparing HSZ use (1x): 40- (instruction number of uses) fast bandwidth comparing HSZ use (4 multiplication): (40 - instruction usage count) ÷ 4 High Speed ??Comparison When using SET / RESET, 80 kHz is the maximum for the sum of the frequencies processed by the sequencer (2 phase 4 quadruple counter is 4 times the input frequency). High-Speed ??Band Comparison When using the HSZ, the frequency obtained by "the number of times of use of 80 kHz - 1.5 X HSZ instruction" is the maximum as the sum of the frequencies processed by the sequencer (2 - phase quadruple counter is 4 times the input frequency).
AnyWire bitty	(3) 128 or less * Total remote I / O of CC-Link, AnyWire Bitty, AnyWireASLINK is 256 or less
AnyWireASLINK	(3) 128 or less * Total remote I / O of CC-Link, AnyWire Bitty, AnyWireASLINK is 256 or less
Input connection shape	Removable terminal block (M3 screw)
Output connection shape	Removable terminal block (M3 screw)
Input response time	Approximately 10 ms X000 to X017 (up to basic unit built-in number) has a built-in digital filter and can be changed in 0 ms to 60 ms in 1 ms unit according to application instructions or D8020. When set to 0, it becomes the following. X000 to X005: 5 μs X 006, X 007: 50 μs X 010 to X 0 17: 200 μs
Response time OFF → ON	Y000 to Y002: 5 μs or less / 10 mA or more (DC 5 to 24 V) Y003 or later: 0.2 ms or less / 200 mA or more (24 VDC)
Operating temperature	0 to 55 ° C. ... Operating, -25 to 75 ° C. ..... Save
Use altitude	Can not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down.
Relative humidity	5 to 95% RH (noncondensing).... in operation
Shipping weight	2 Kg
AS-i	(3) 248 or less
Ground	Class D grounding (grounding resistance: 100 Ω or less)Grounding should be dedicated ground or common ground.
Nesting	[For master control] N 0 to N 7 8 points (for MC command)
ON → OFF	Y000 to Y002: 5 μs or less / 10 mA or more (DC 5 to 24 V) Y003 or later: 0.2 ms or less / 200 mA or more (24 VDC)
For keeping	M500 to M1023 524 You can change the keeping / nonkeeping setting with the point parameter.
String ("")	It is specified by the character enclosed by "". Up to 32 single-byte characters can be used as an instruction constant
Total score	(1) + (2) + (3) Total: 384 points or less (when adding together)
Input format	Sink / source
Manufacturer	Mitsubishi Electric
Output relay	Y000 to Y367 248 points (octal number) When added and used
For keeping 1	S500 to S899 Keep / nonkeep setting can be changed by 400 point parameter.
For keeping 2	S1000 to S4095 This is a 3096 point battery backup fixed area. Area property change is impossible.
X010 or later	3.5 mA or more
Inductive load	12 W / DC 24 V
Noise immunity	Noise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si
Use atmosphere	There is no corrosive property, flammable gas, conductive dust (dust) is not serious
For general use	S10 to S499 Keep / non-keep setting can be changed by 490 point parameter.
Hexadecimal	16 bits: 0 to FFFF 32 bits: 0 to FFFFFFFF
Real number	32 bits: -1.0 X 2 128 to -1.0 X 2 - 126 , 0, 1.0 X 2 - 126 to 1.0 X 2 128 Decimal point representation and exponential representation are possible
Special purpose	M8000 to M8511 512 points
Timer interrupt	I6□□ - I 8□□ 3 points
16 bit up	C100 to C199 100 points (0 to 32,767 counts) Keep / nonkeep setting can be changed by parameter.
32 bit up / down	C200 to C219 20 points (-2, 147, 483, 648 to +2, 147, 483, 647 counts) You can change the keeping / nonkeeping setting by parameter.
For 16 bit index	V 0 to V 7, Z 0 to Z 7 16 points
For annunciators	S900 - S999 You can change the keeping / nonkeeping setting with 100 point parameters.
Counter 16 bit up	C0 to C99 100 points (0 to 32,767 counts) You can change the keeping / nonkeeping setting by parameter.
Counter interrupt	I010 to I060 6 points (for HSCS instruction)
Impact resistance	147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2
16 bit special use	D 8000 to D 8511 512 points
Circuit insulation	Photocoupler insulation
Extension register	[16 bits] R 0 to R 32767 32768 points Battery backup fixed area. Area property change is impossible.
For 16 bit keeping	D200 to D511 312 points It is possible to change the keeping / nonkeeping setting by the parameter.
High speed counter	[32-bit high-speed up / down (keep)] C235 ~ up 8 points in C255 Usable hardware counter 1 phase: 100kHz, 10 kHz 2 phase: 50 kHz (1 multiplication), 50 kHz (4 multiplication) software counter 1 phase: 40 kHz 2 phases: 40 kHz (1 multiplication), 10 kHz (4 multiplication) There are limitations on the points that can be used and the input frequency depending on the conditions to be used.
Estimated lead time	Usually ships in 1 - 10 working days.
Input signal format	No-voltage contact input At sink input: NPN open collector transistor Source input: PNP open collector transistor
Positioning command	. ABS current reading ([D] ABS) . Origin with DOG search [DSZR] . Origin return [ZRN] (No DOG search function) Decelerates with near point DOG: ON and stops at near point DOG: OFF . (It differs from the zero point return operation by counting the zero point signal) . Variable speed pulse output [PLSV] . Relative positioning [DRVI] . Absolute positioning [DRVA] . Interrupt positioning [DVIT] . Batch setting positioning ([D] TBL) Pulse output format: pulse train + direction
Protection function	With password protection function (by keyword function)
State initial state	S 0 ~ S 9 Keep / nonkeep setting can be changed by 10 point parameter.
Programming language	Sequence program
Insulation resistance	When conducting the insulation resistance test, perform the following voltage between each terminal and the ground terminal of the basic unit. Between power supply terminal (DC power supply) and earth terminal: 500 VDC DC insulation resistance meter 5 MΩ or more Output terminal (transistor) and ground terminal: 500 VDC with insulation resistance meter 5 MΩ or more
Extended file register	[16 bits] ER 0 to ER 32767 32768 Only available when a memory cassette is installed.
Number of control axes	Independent 3 axes
Number of input points	24 points
Application instruction	0.642 μs to several 100 μs / instruction
Input operation display	LED ON when input is ON
Number of output points	24 points
Timer (on-delay) 100	T0 to T191 192 points (0.1 to 3,276.7 seconds)
Corresponding basic unit	Transistor output type basic unit
Input circuit insulation	Photocoupler insulation
Memory cassette (option)	[Ver.3.00 or later] . FX3U - FLROM - 1M (2000/4000/8000/16000/32000/64000 steps supported Yes Loader function available, source information can be stored in dedicated area 1300 kbytes) [Ver.2.20] . FX3U - FLO-64L (2000/4000/8000/16000/32000/64000 step supported loader function available) . FX3U - FLROM - 64 (2000/4000/8000/16000/32000/64000 steps supported Yes Loader function not available) . FX3U - FLROM-16 (2000/4000/8000/16000 steps supported Yes No loader function)
Pulse output instruction	. Pulse output (PLSY) . Pulse output with acceleration / deceleration (PLSR) Pulse output format: Pulse train (direction controlled by sequence)
Arithmetic control method	Stored program iterative calculation method (dedicated LSI), interrupt function available
Write function during RUN	Yes (program changeable during sequencer RUN)
Maximum load resistive load	0.5 A or less / Total load current per common per output should be as follows. Output 1 point / common: 0.5 A or less Output 4 points / common: 0.8 A or less Output 8 points / common: 1.6 A or less
Output operation indication	LED on the panel when driving the photo coupler
Constant decimal number	16 bits: -32,768 to + 32,767 32 bits: -2, 147, 483, 648 to +2, 147, 483, 647
Input impedance x000 to x007	X000 to X005: 3.9 kΩ X 006, X 007: 3.3 kΩ
Input (output control method)	Batch processing method (when END instruction is executed), I / O refresh command, with pulse catch function
Pointer JUMP, for CALL branch	P 0 to P 4095 4096 points (for CJ instruction, CALL instruction, P 63 for END jump)
Real time clock clock function	Built-in 1980 to 2079 (with leap year correction) 2-digit year / 4-digit switchable, monthly difference ± 45 seconds (25 ° C)
Device i (O relay input relay)	X000 to X367 248 points (octal number) When added and used
Auxiliary relay for general use	M 0 ~ M 499 500 points You can change the keeping / nonkeeping setting by parameter.
For 16-bit keep (file register)	D 512 to D 7999 7488 points (It can be set as file register in units of 500 points after D 1000, it is a battery backup fixed area. Area property change is impossible.
Keep (battery backup fixed area)	M1024 to M7679 6656 points Battery backup fixed area. Area property change is impossible.
Internal memory capacity (format)	64000 steps (source information storable Yes Ver. 3.00 or higher) / RAM memory (backed up with built-in lithium battery) Battery life: About 5 years
Number of remote i (O points CC-Link)	(3) 256 points or less (224 points or less when using FX2N - 16 CCL - M) * The total of remote I / O of CC - Link, AnyWire Bitty, AnyWireASLINK is 256 or less
Input interrupt, input delay interrupt	I00□ ~ I50□ 6 points
Program memory maximum memory capacity	64 thousand step comment, 64000 steps including file register
Types of instructions basic instruction	[Ver 2.30 or later] - Sequence instruction 29 pieces - Step ladder instructions 2 pieces [Ver. 2.30 or less] - Sequence instruction 27 pieces - Two step ladder instructions
Arithmetic processing speed basic instruction	0.065 μs / Instruction
100 ms (For subroutines and interrupt routines)	T192 to T199 8 points (0.1 to 3,276.7 seconds)
Number of input (output points number of input points)	(1) 248 points or less (when adding together) (1) + (2) Total: 256 points or less
Data register (32 bits in pair use) for 16-bit general purpose	D0 ~ D199 The setting of keeping / nonkeeping can be changed by 200 point parameter.

MPN

FX3U-48MT/DS

Specifications

FX3U-48MT/DS key specifications
Parameter	Value
1	T256 to T511 256 points (0.001 to 32.767 seconds)
10	T200 to T245 46 points (0.01 to 327.67 seconds)
Output type (format)	Transistor / sink output
1 ms integration type	T246 to T249 4 points (0.001 to 32.767 seconds) Battery backup fixed area. Area property change is impossible.
100 ms integration type	T250 to T255 6 points (0.1 to 3,276.7 seconds) Battery backup fixed area. Area property change is impossible.
ON voltage	1.5V or less
Voltage	DC 24V
Withstand voltage	When performing the withstand voltage test, make the voltage between each terminal and the ground terminal of the basic unit as follows. Between power supply terminal (DC power supply) and earth terminal: 500 VAC for 1 minute Between output terminal (transistor) and ground terminal: 500 VAC for 1 minute
Input signal voltage	DC 16.8 to 28.8 V
Voltage tolerance range	DC 16.8 to 28.8 V When the power supply voltage is DC 16.8 to 19.2 V, the number of connectable devices can be reduced.
Inrush current	Maximum 35 A less than 0.5 ms / 24 VDC
Open-circuit leakage current	0.1 mA or less / DC 30 V

All specifications+98 ▾

FX3U-48MT/DS additional specifications
Parameter	Value
Input OFF sensitivity current	1.5 mA or less
Input signal current x000 to x007	X000 ~ X005: 6mA / DC24V X006, X007: 7mA / DC24V
Input ON sensitivity current x000 to x007	X000 to X005: 3.5 mA or more X006, X007: 4.5 mA or more
Power consumption	It is the value when maximum is consumed in the I / O expansion block or special expansion unit / block added to the 35 W basic unit.
Power supply fuse	250 V 5 A
External power supply	DC 5 to 30 V
DC 5 v internal power supply	500 mA or less Can not be used externally. This is the power supply capacity to be supplied to the I / O expansion block, special expansion block, special adapter and function expansion board.
Allowable momentary power outage time	Operation continues with an instantaneous blackout of 5 ms or less.
Frequency	57 to 150 Hz : Acceleration: 9.8 m / s 2 X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Maximum frequency	100 kHz
Direct installation frequency	10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Anti-vibration when DIN rail is installed frequency	10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
1 phase 1 count input	[C235 to C240] Up to 6 points: Up to 100 kHz High Speed ??Comparison When using SET / RESET: 40 kHz High Speed ??Band Comparison When using HSZ: 40 - (Instruction Usage Count) [C244 (OP), C245 (OP)] Maximum 2 Points: 10 kHz High Speed ??Comparison When using SET / RESET: 10 kHz High Speed ??Band Comparison When using HSZ: 40 - (Instruction Used Count) [C241 ~ C245] Up to 3 Points: Up to 40 kHz High Speed ??Comparison When using SET / RESET: 40 kHz High Speed ??Band Comparison When Using HSZ : 40 - (number of times of instruction use) High speed comparison When using SET / RESET, 80 kHz is the maximum for the sum of the frequencies processed by the sequencer (2 phase 4 quadruple counter is combined with 4 times the input frequency). High-Speed ??Band Comparison When using the HSZ, the frequency obtained by "the number of times of use of 80 kHz - 1.5 X HSZ instruction" is the maximum as the sum of the frequencies processed by the sequencer (2 - phase quadruple counter is 4 times the input frequency).
1 phase 2 count input	[C246, C248 (OP)] Up to 2 points: Up to 100 kHz High Speed ??Comparison When using SET / RESET: 40 kHz High Speed ??Band Comparison When using HSZ: 40 - (Instruction Used Count) [C247 ~ C250] Up to 2 Points: Up to 40 kHz High Speed ??Comparison When using SET / RESET: 40 kHz High Speed ??Band Comparison When using HSZ: 40 - (Instruction Used Count) High Speed ??Comparison Total frequency processed by the sequencer when using SET / RESET (2 phase 4 multiplier counter adds 4 times the input frequency ) Is the maximum at 80 kHz. High-Speed ??Band Comparison When using the HSZ, the frequency obtained by "the number of times of use of 80 kHz - 1.5 X HSZ instruction" is the maximum as the sum of the frequencies processed by the sequencer (2 - phase quadruple counter is 4 times the input frequency).
2 phase 2 count input	[C251, C253] Up to 2 points: Up to 50 kHz (1 multiplication, 4 multiplication) High speed comparison When using SET / RESET (1 multiplication): 40 kHz High speed comparison When using SET / RESET (4 multiplication): 10 kHz High speed band comparison When HSZ is used (1x): 40- (instruction number of uses) fast bandwidth comparing HSZ use (quadruple) :( 40- instruction usage count) ÷ 4 [C252, C253 (OP), C254, C255] up to two points: highest 40kHz fast compared SET / RESET is used (1x): 40 kHz High-speed comparison SET / RESET is used (multiplied by 4): 10 kHz High-speed bandwidth comparing HSZ use (1x): 40- (instruction number of uses) fast bandwidth comparing HSZ use (4 multiplication): (40 - instruction usage count) ÷ 4 High Speed ??Comparison When using SET / RESET, 80 kHz is the maximum for the sum of the frequencies processed by the sequencer (2 phase 4 quadruple counter is 4 times the input frequency). High-Speed ??Band Comparison When using the HSZ, the frequency obtained by "the number of times of use of 80 kHz - 1.5 X HSZ instruction" is the maximum as the sum of the frequencies processed by the sequencer (2 - phase quadruple counter is 4 times the input frequency).
AnyWire bitty	(3) 128 or less * Total remote I / O of CC-Link, AnyWire Bitty, AnyWireASLINK is 256 or less
AnyWireASLINK	(3) 128 or less * Total remote I / O of CC-Link, AnyWire Bitty, AnyWireASLINK is 256 or less
Input connection shape	Removable terminal block (M3 screw)
Output connection shape	Removable terminal block (M3 screw)
Input response time	Approximately 10 ms X000 to X017 (up to basic unit built-in number) has a built-in digital filter and can be changed in 0 ms to 60 ms in 1 ms unit according to application instructions or D8020. When set to 0, it becomes the following. X000 to X005: 5 μs X 006, X 007: 50 μs X 010 to X 0 17: 200 μs
Response time OFF → ON	Y000 to Y002: 5 μs or less / 10 mA or more (DC 5 to 24 V) Y003 or later: 0.2 ms or less / 200 mA or more (24 VDC)
Operating temperature	0 to 55 ° C. ... Operating, -25 to 75 ° C. ..... Save
Use altitude	Can not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down.
Relative humidity	5 to 95% RH (noncondensing).... in operation
Shipping weight	2 Kg
AS-i	(3) 248 or less
Ground	Class D grounding (grounding resistance: 100 Ω or less)Grounding should be dedicated ground or common ground.
Nesting	[For master control] N 0 to N 7 8 points (for MC command)
ON → OFF	Y000 to Y002: 5 μs or less / 10 mA or more (DC 5 to 24 V) Y003 or later: 0.2 ms or less / 200 mA or more (24 VDC)
For keeping	M500 to M1023 524 You can change the keeping / nonkeeping setting with the point parameter.
String ("")	It is specified by the character enclosed by "". Up to 32 single-byte characters can be used as an instruction constant
Total score	(1) + (2) + (3) Total: 384 points or less (when adding together)
Input format	Sink / source
Manufacturer	Mitsubishi Electric
Output relay	Y000 to Y367 248 points (octal number) When added and used
For keeping 1	S500 to S899 Keep / nonkeep setting can be changed by 400 point parameter.
For keeping 2	S1000 to S4095 This is a 3096 point battery backup fixed area. Area property change is impossible.
X010 or later	3.5 mA or more
Inductive load	12 W / DC 24 V
Noise immunity	Noise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si
Use atmosphere	There is no corrosive property, flammable gas, conductive dust (dust) is not serious
For general use	S10 to S499 Keep / non-keep setting can be changed by 490 point parameter.
Hexadecimal	16 bits: 0 to FFFF 32 bits: 0 to FFFFFFFF
Real number	32 bits: -1.0 X 2 128 to -1.0 X 2 - 126 , 0, 1.0 X 2 - 126 to 1.0 X 2 128 Decimal point representation and exponential representation are possible
Special purpose	M8000 to M8511 512 points
Timer interrupt	I6□□ - I 8□□ 3 points
16 bit up	C100 to C199 100 points (0 to 32,767 counts) Keep / nonkeep setting can be changed by parameter.
32 bit up / down	C200 to C219 20 points (-2, 147, 483, 648 to +2, 147, 483, 647 counts) You can change the keeping / nonkeeping setting by parameter.
For 16 bit index	V 0 to V 7, Z 0 to Z 7 16 points
For annunciators	S900 - S999 You can change the keeping / nonkeeping setting with 100 point parameters.
Counter 16 bit up	C0 to C99 100 points (0 to 32,767 counts) You can change the keeping / nonkeeping setting by parameter.
Counter interrupt	I010 to I060 6 points (for HSCS instruction)
Impact resistance	147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2
16 bit special use	D 8000 to D 8511 512 points
Circuit insulation	Photocoupler insulation
Extension register	[16 bits] R 0 to R 32767 32768 points Battery backup fixed area. Area property change is impossible.
For 16 bit keeping	D200 to D511 312 points It is possible to change the keeping / nonkeeping setting by the parameter.
High speed counter	[32-bit high-speed up / down (keep)] C235 ~ up 8 points in C255 Usable hardware counter 1 phase: 100kHz, 10 kHz 2 phase: 50 kHz (1 multiplication), 50 kHz (4 multiplication) software counter 1 phase: 40 kHz 2 phases: 40 kHz (1 multiplication), 10 kHz (4 multiplication) There are limitations on the points that can be used and the input frequency depending on the conditions to be used.
Estimated lead time	Usually ships in 1 - 10 working days.
Input signal format	No-voltage contact input At sink input: NPN open collector transistor Source input: PNP open collector transistor
Positioning command	. ABS current reading ([D] ABS) . Origin with DOG search [DSZR] . Origin return [ZRN] (No DOG search function) Decelerates with near point DOG: ON and stops at near point DOG: OFF . (It differs from the zero point return operation by counting the zero point signal) . Variable speed pulse output [PLSV] . Relative positioning [DRVI] . Absolute positioning [DRVA] . Interrupt positioning [DVIT] . Batch setting positioning ([D] TBL) Pulse output format: pulse train + direction
Protection function	With password protection function (by keyword function)
State initial state	S 0 ~ S 9 Keep / nonkeep setting can be changed by 10 point parameter.
Programming language	Sequence program
Insulation resistance	When conducting the insulation resistance test, perform the following voltage between each terminal and the ground terminal of the basic unit. Between power supply terminal (DC power supply) and earth terminal: 500 VDC DC insulation resistance meter 5 MΩ or more Output terminal (transistor) and ground terminal: 500 VDC with insulation resistance meter 5 MΩ or more
Extended file register	[16 bits] ER 0 to ER 32767 32768 Only available when a memory cassette is installed.
Number of control axes	Independent 3 axes
Number of input points	24 points
Application instruction	0.642 μs to several 100 μs / instruction
Input operation display	LED ON when input is ON
Number of output points	24 points
Timer (on-delay) 100	T0 to T191 192 points (0.1 to 3,276.7 seconds)
Corresponding basic unit	Transistor output type basic unit
Input circuit insulation	Photocoupler insulation
Memory cassette (option)	[Ver.3.00 or later] . FX3U - FLROM - 1M (2000/4000/8000/16000/32000/64000 steps supported Yes Loader function available, source information can be stored in dedicated area 1300 kbytes) [Ver.2.20] . FX3U - FLO-64L (2000/4000/8000/16000/32000/64000 step supported loader function available) . FX3U - FLROM - 64 (2000/4000/8000/16000/32000/64000 steps supported Yes Loader function not available) . FX3U - FLROM-16 (2000/4000/8000/16000 steps supported Yes No loader function)
Pulse output instruction	. Pulse output (PLSY) . Pulse output with acceleration / deceleration (PLSR) Pulse output format: Pulse train (direction controlled by sequence)
Arithmetic control method	Stored program iterative calculation method (dedicated LSI), interrupt function available
Write function during RUN	Yes (program changeable during sequencer RUN)
Maximum load resistive load	0.5 A or less / Total load current per common per output should be as follows. Output 1 point / common: 0.5 A or less Output 4 points / common: 0.8 A or less Output 8 points / common: 1.6 A or less
Output operation indication	LED on the panel when driving the photo coupler
Constant decimal number	16 bits: -32,768 to + 32,767 32 bits: -2, 147, 483, 648 to +2, 147, 483, 647
Input impedance x000 to x007	X000 to X005: 3.9 kΩ X 006, X 007: 3.3 kΩ
Input (output control method)	Batch processing method (when END instruction is executed), I / O refresh command, with pulse catch function
Pointer JUMP, for CALL branch	P 0 to P 4095 4096 points (for CJ instruction, CALL instruction, P 63 for END jump)
Real time clock clock function	Built-in 1980 to 2079 (with leap year correction) 2-digit year / 4-digit switchable, monthly difference ± 45 seconds (25 ° C)
Device i (O relay input relay)	X000 to X367 248 points (octal number) When added and used
Auxiliary relay for general use	M 0 ~ M 499 500 points You can change the keeping / nonkeeping setting by parameter.
For 16-bit keep (file register)	D 512 to D 7999 7488 points (It can be set as file register in units of 500 points after D 1000, it is a battery backup fixed area. Area property change is impossible.
Keep (battery backup fixed area)	M1024 to M7679 6656 points Battery backup fixed area. Area property change is impossible.
Internal memory capacity (format)	64000 steps (source information storable Yes Ver. 3.00 or higher) / RAM memory (backed up with built-in lithium battery) Battery life: About 5 years
Number of remote i (O points CC-Link)	(3) 256 points or less (224 points or less when using FX2N - 16 CCL - M) * The total of remote I / O of CC - Link, AnyWire Bitty, AnyWireASLINK is 256 or less
Input interrupt, input delay interrupt	I00□ ~ I50□ 6 points
Program memory maximum memory capacity	64 thousand step comment, 64000 steps including file register
Types of instructions basic instruction	[Ver 2.30 or later] - Sequence instruction 29 pieces - Step ladder instructions 2 pieces [Ver. 2.30 or less] - Sequence instruction 27 pieces - Two step ladder instructions
Arithmetic processing speed basic instruction	0.065 μs / Instruction
100 ms (For subroutines and interrupt routines)	T192 to T199 8 points (0.1 to 3,276.7 seconds)
Number of input (output points number of input points)	(1) 248 points or less (when adding together) (1) + (2) Total: 256 points or less
Data register (32 bits in pair use) for 16-bit general purpose	D0 ~ D199 The setting of keeping / nonkeeping can be changed by 200 point parameter.
