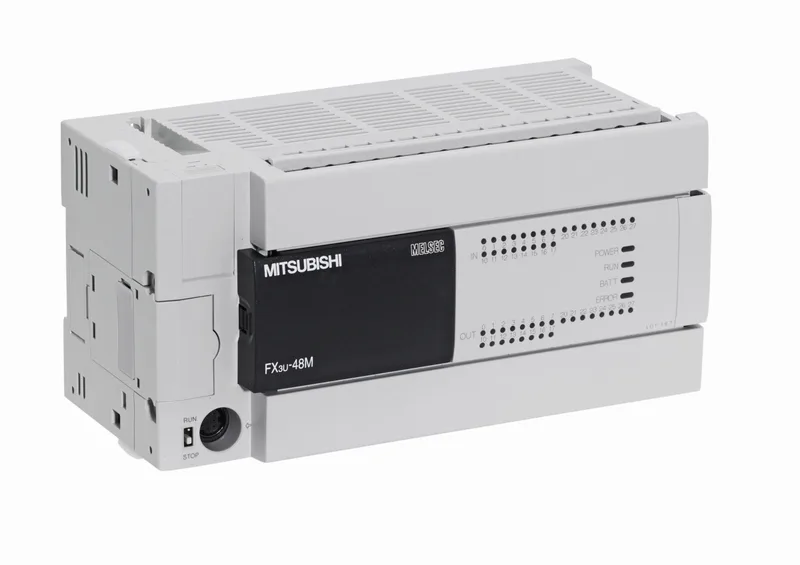

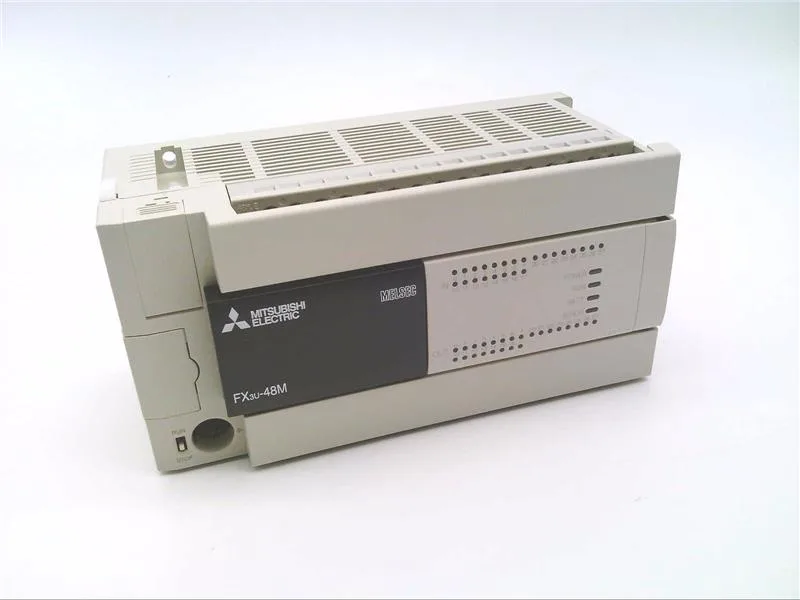

Mitsubishi Electric FX3U-48MT/ESS — PLCs (Programmable Logic Controllers)

Mitsubishi FX3U-48MT/ESS PLC, 48 I/O Transistor Source, 64K

MPNFX3U-48MT/ESS

Mitsubishi MELSEC-F FX3U-48MT/ESS, PLC main unit, 24 points input/24 points output, transistor source, AC power supply, expandable.

$302.00 – $775.97Ref. price · indicative, final on quote
Mitsubishi Electric FX3U-48MT/ESS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX3U-48MT/ESS — Identification
ParameterValue
SeriesMELSEC-F SERIES
FX3U-48MT/ESS — I/O
ParameterValue
ExpandableYES
FX3U-48MT/ESS — Mechanical
ParameterValue
Weight0,85 kg

Product details

The Mitsubishi FX3U-48MT/ESS is a MELSEC-F series main unit offering 24 digital inputs and 24 transistor source outputs, powered by 100–240 V AC. Program memory holds 64K steps (RAM, battery-backed). With a scan time of 65 ns for LD and 642 ns for MOV instructions, it handles mid-speed automation tasks. Local I/O expands to 256 points, total remote I/O up to 384. Outputs are sourcing (source logic): load connects between output terminal and common (0 V). The transistor type supports high-speed pulse output for positioning applications. RS-422 is standard; USB is optional (requires add-on module or adapter).

Frequently asked questions

Does the FX3U-48MT/ESS have a built-in USB port?

No, USB is listed as optional on this model. The standard onboard interface is RS-422. For USB programming, an optional adapter module is required.

MPN
FX3U-48MT/ESS
