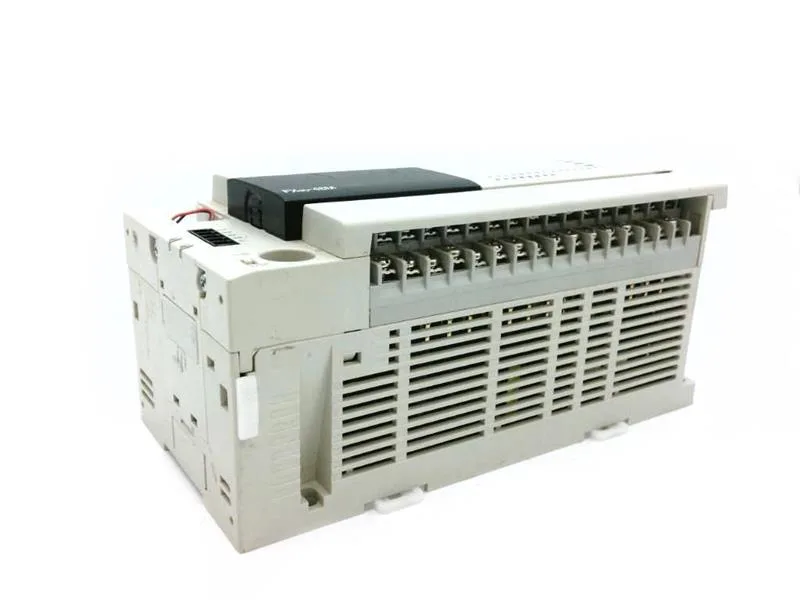

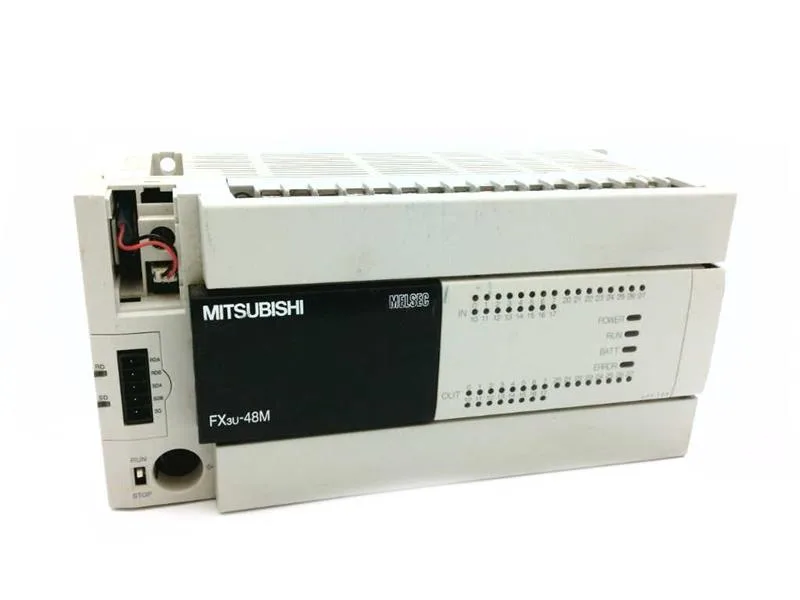

Mitsubishi Electric FX3U-48MT/DSS

Mitsubishi FX3U-48MT/DSS PLC Base Unit, 24 VDC, 48 I/O

MPN FX3U-48MT/DSS

Mitsubishi MELSEC-F Series, FX3U base unit, 24 DC inputs, 24 transistor source outputs, 64K steps RAM, expandable to 256 local I/O points.

$302.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FX3U-48MT/DSS specifications
ParameterValue
SeriesMELSEC-F SERIES
Output signalTRANSISTOR
Product typeFX3U
IP ratingIP10
Weight0.85 kg

Product details

Base unit spec at a glance

The FX3U-48MT/DSS is a MELSEC-F series base unit: 24 DC 24 V inputs and 24 transistor source outputs on-board, with program memory of 64K steps held in battery-backed RAM. Expandable to 256 local I/O points (384 including remote), it fits a mid-sized machine slice. Runs a 65-ns LD scan and 642-ns MOV at peak, so cycle time is tight enough for most high-speed sensor arrays. The 35 W draw at 24 V DC and IP10 protection class are typical for a panel-mount PLC. The USB port is listed as OPTION — not populated on every unit; confirm with your order if USB programming is needed. RS-422 is standard.

Panel fit and expansion notes

Mounts with a buffer battery for RAM retention. Ambient range 0 to 55 °C, but consider derating if multiple expansion units are stacked. Expansion bus supports up to 256 local I/O points. Planning the backplane current draw is straightforward at 35 W total from the 24 V DC supply.

MPN
FX3U-48MT/DSS
