Mitsubishi Electric Q65B

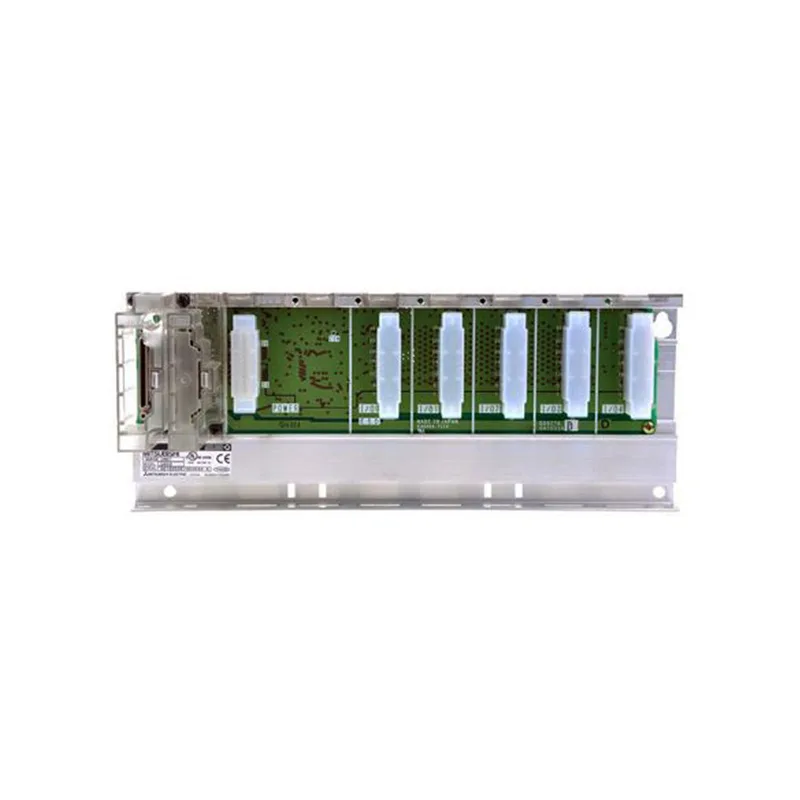

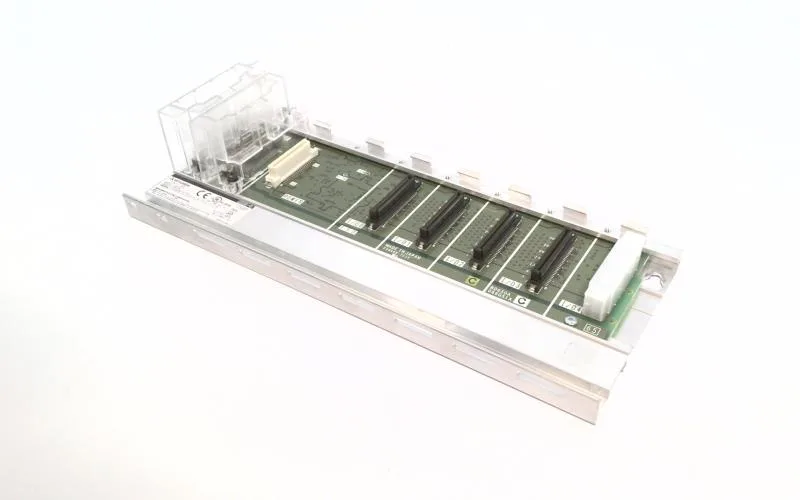

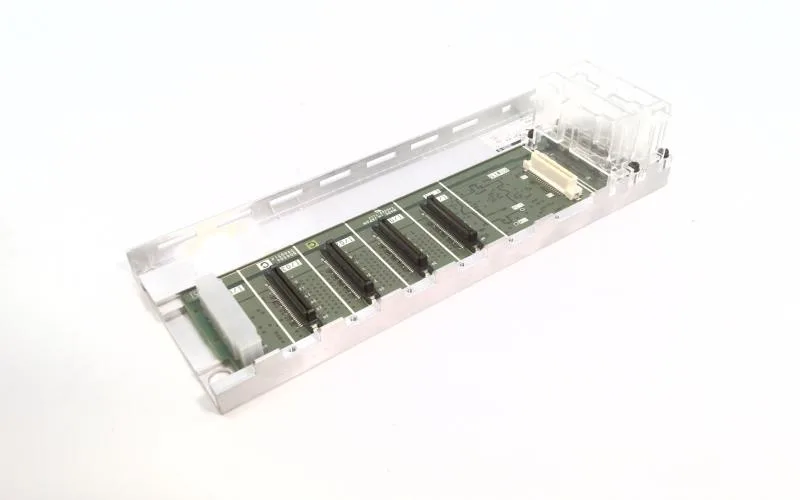

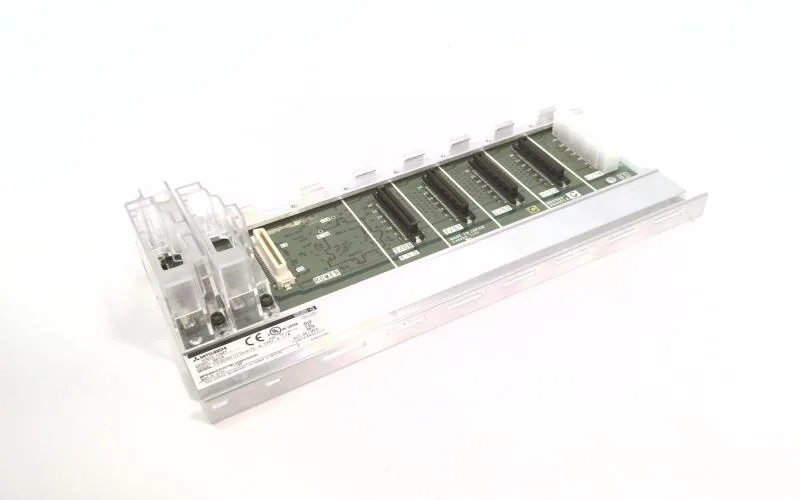

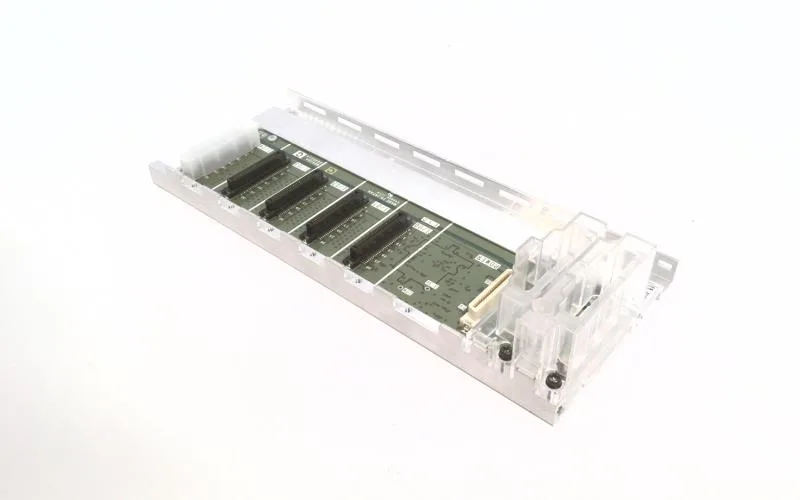

Mitsubishi Q65B Extension Base Unit, 5 Slots, Q Series

MPN Q65B

Mitsubishi Q Series Extension Base Unit, Q65B, 5 slots, 1 power supply slot, mature lifecycle stage.

$104.00 – $114.30 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

Q65B specifications
ParameterValue
SeriesQ Series
Product typeExtension Base Unit
Weight0.43 Kg

Product details

The Q65B is a 5-slot extension base unit for Mitsubishi's Q Series programmable logic controllers. One of those slots is dedicated to the power supply module, leaving four slots free for CPU, I/O, or special-function modules. It accepts any standard Q Series module, so the slot layout follows the same backplane rules as the main base — no special mapping required.

What the Slot Count Means for Your Panel

Five slots total, one reserved for the power supply. That gives you four usable slots for the rest of the system. In a typical Q Series rack, the CPU occupies slot 0 (closest to the power supply), leaving three slots for I/O or special modules. If your design calls for more than three I/O slices plus a CPU, you either need a larger base (like the Q68B with eight slots) or a second extension base daisy-chained via the extension cable. The physical dimensions — 37 cm long, 12.5 cm deep, 6 cm high — fit a standard 600 mm deep enclosure with room for wiring ducts on either side.
