Omron D41D-2CD-025N2

D41D-2CD-025N2 RFID Non-Contact Safety Switch, IP67, OSSD

MPN D41D-2CD-025N2

Allen-Bradley Guardmaster D41D-2CD-025N2, RFID non-contact safety interlock switch, OSSD outputs, IP67, M12 connector, individual coding re-teaching enabled.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

D41D-2CD-025N2 specifications
ParameterValue
Product typeNon-Contact
IP ratingIP67
Connection methodM12 connector
Temp operating max60 °C
Temp operating min-25 °C

Product details

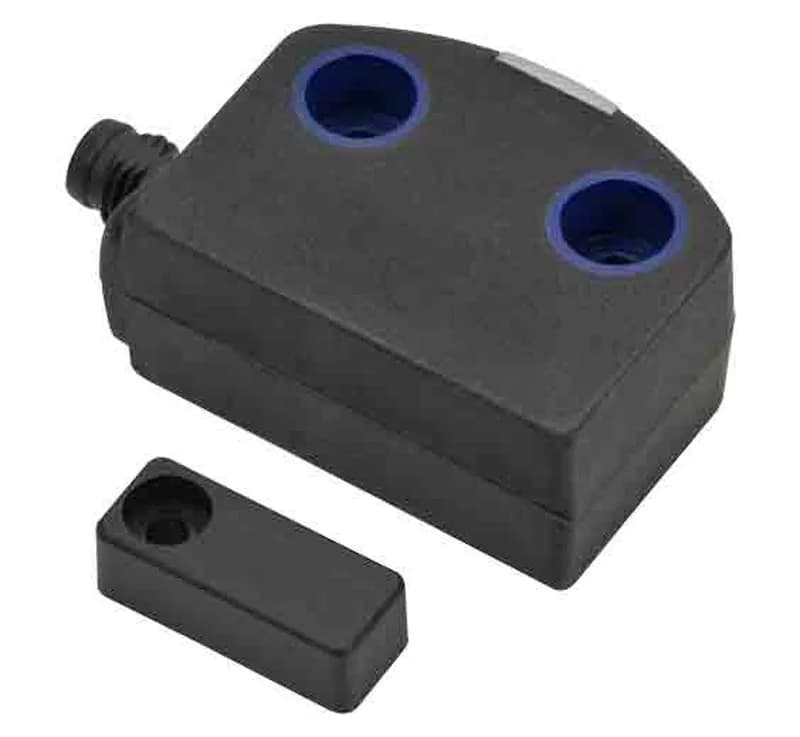

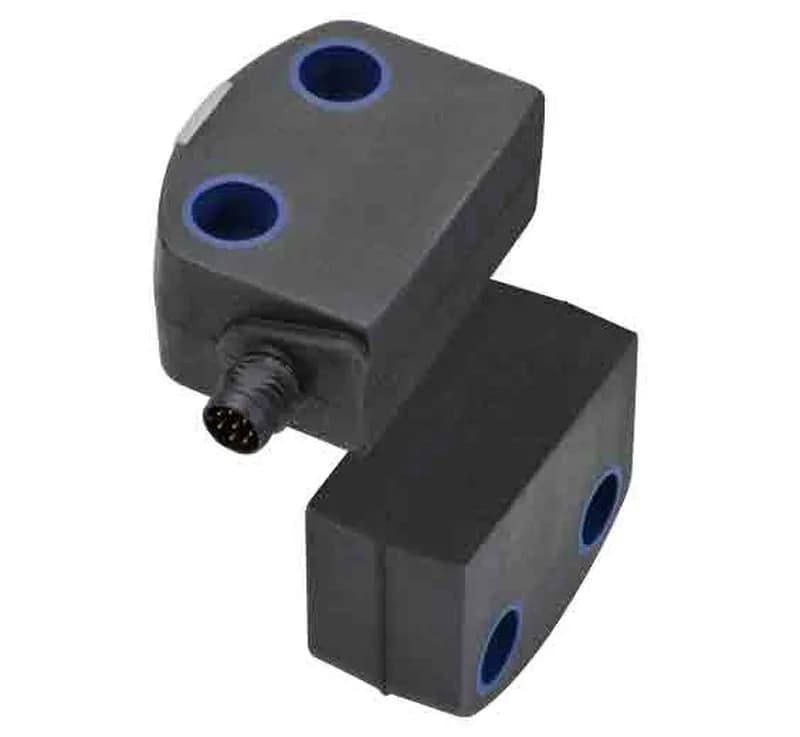

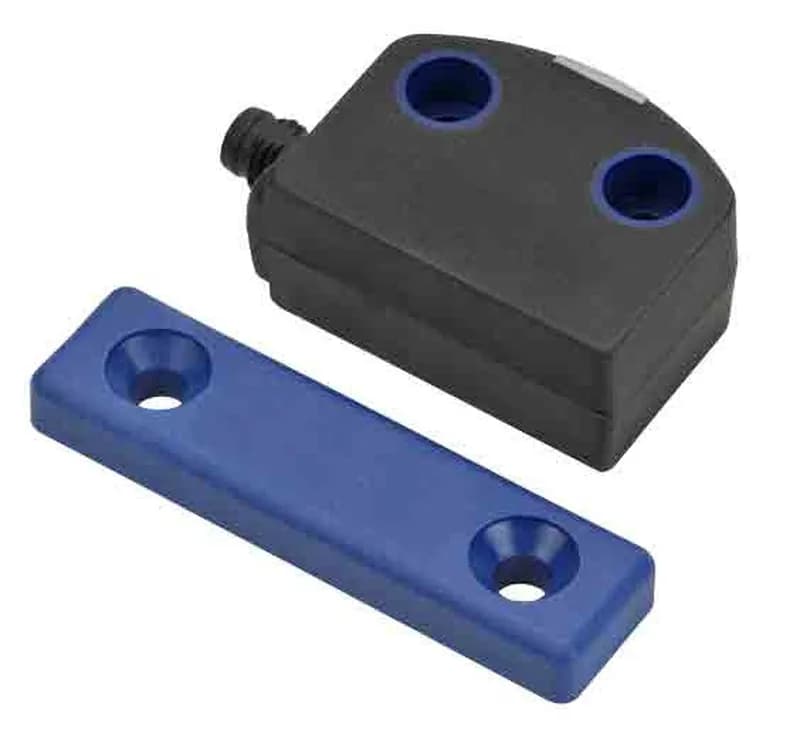

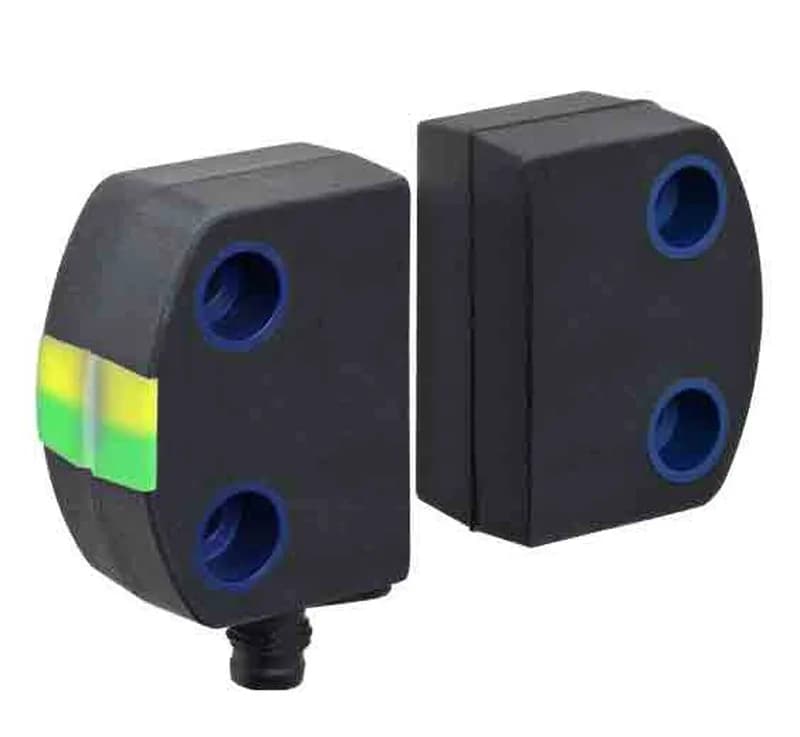

The D41D-2CD-025N2 is an RFID-coded non-contact safety interlock switch from the Allen-Bradley Guardmaster D41D series, designed for guarding access points on machinery where a physical hinge or tongue interlock won't hold up. It uses RFID technology to detect the actuator, so there's no mechanical wear at the mating point — that's the whole point of going non-contact. The switch outputs two OSSD (Output Signal Switching Device) channels, which is what a safety-rated PLC or safety relay expects to see for a Category 3 / PL d or SIL CL 2 circuit.

IP67 enclosure rating means the switch body is sealed against dust ingress and temporary immersion — it'll survive washdown on a packaging line or the spray from a parts washer. Individual coding re-teaching enabled means you can pair a specific actuator to this switch on-site, and if an actuator gets damaged, you can re-teach a replacement without swapping the whole switch — that saves a line-down spare call. The M12 connector (typically 5-pin for OSSD switches) keeps field wiring clean and quick; no hard-wiring into a terminal block inside the guard frame.
