Overview

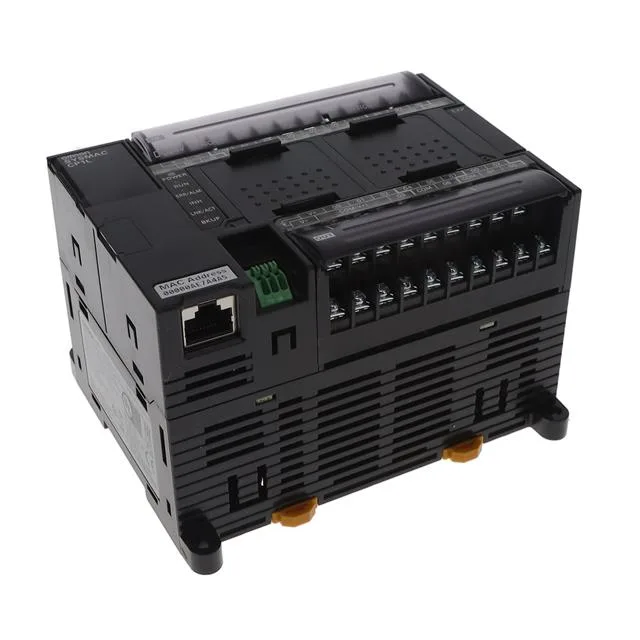

The CP1L-EM30DT1-D is an Omron CP1L-series programmable logic controller, order code CP1L-EM30DT1-D, with 18 digital inputs and 12 solid-state (transistor) outputs. It runs on a 24 V DC supply and is available in bulk packaging for chassis or DIN-rail mounting.
Function & operation
This CPU executes user logic from a 32K-word program memory — sufficient for medium-complexity machine sequences with data tables and recipe handling. An on-board Ethernet port supports programming, HMI communication, and controller networking without an add-on module; an option card slot allows protocol expansion (e.g., serial or fieldbus) when needed. The controller accepts up to three expansion I/O modules. A battery backup retains the program and retained data during power loss.
Applications
CP1L-series PLCs of this class are specified for standalone machine control — packaging equipment, assembly stations, conveyor sections, and small material-handling cells. The 18-input / 12-output count suits applications with a moderate sensor and actuator count, such as a pick-and-place station or a palletizer infeed.
Lifecycle & availability
The CP1L-EM30DT1-D carries an active lifecycle status from Omron. It remains in current production and is available through standard distribution channels. No end-of-life notice or successor part number has been issued, making it a safe choice for new designs and ongoing production support.
