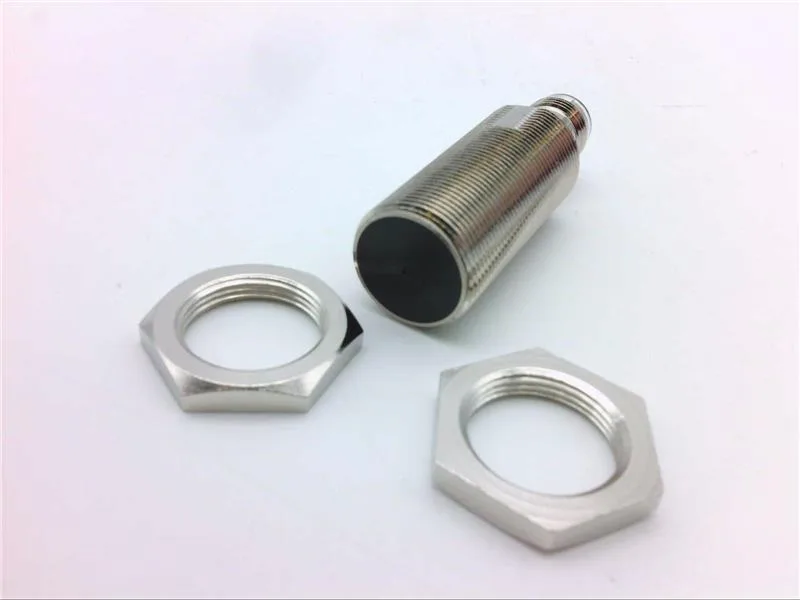

The Omron E2A-M18KS08-M1-B1 is an M18 cylindrical inductive proximity sensor with an 8 mm sensing range and PNP normally open output. Running on 12–24 VDC, it connects via an M12 connector — a standard fit for control cabinets and conveyor lines where a metal target presence is needed. The stainless steel housing holds up in washdown or abrasive environments.
What the ratings mean for fit
